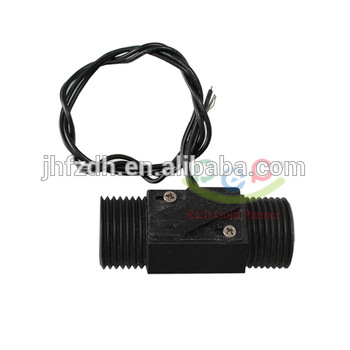

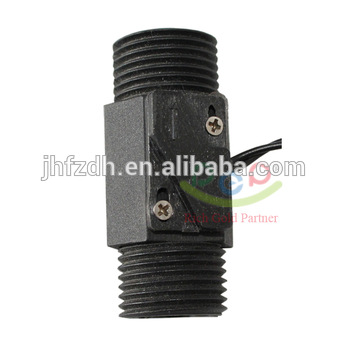

G1/4'' threading type plastic water flow switch for water treatment

G1/4'' threading type plastic water flow switch for water treatment

FOB Price:

US 3-4 / Piece

Min.Order Quantity:

1 Piece/Pieces

Supply Ability:

200000 Piece/Pieces per Month

Port:

Shenzhen

Place of Origin:

Guangdong, China (Mainland)

Payment Terms:

T/T,Western Union,cash

Brand:

RGP

Products Model:

W4-2PW

Products Details
Company Profile

Quick Details

Brand Name: RGP

Model Number: W4-2PW

Place of Origin: Guangdong, China (Mainland)

Packaging & Delivery

Packaging Details: Carton, customized
Delivery Detail: one week

Specifications

Product Description

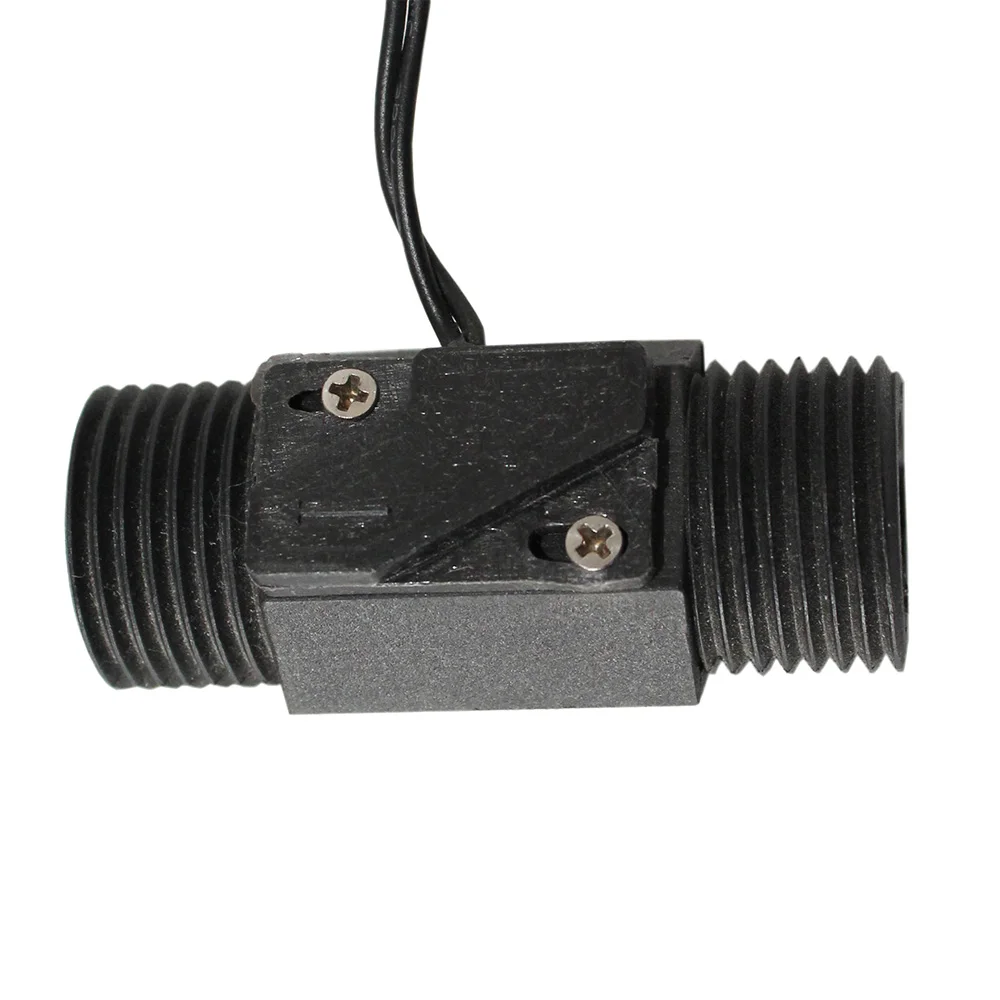

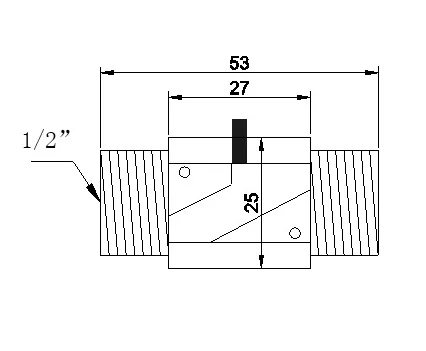

Figure 1 Figure 2

Parameter of water tank flow controller

W4-P2p	Small power	High power
Rated power	10W	50W
Working voltage	3 ~24V DC	220VAC/DC
Working carry current	0.5A	1.0A
Breakdown current	1A	1.5A
Temperature range	-10 ℃ ~+85 ℃
Material	PP
Sensing water voltage	above 0.3gf/cm2
Type of interface	1/2' (thread cusotmized)
Installation Angle	horizontal,vertical,lean

The low price plastic magnetic water tank flow controller are installed on the water pipe through series connection or parallel connection,It is used hydraulic pressure (air pressure) to drive magnetic induction and convey switch signals.

The flow switch send on or off signal according to the flow volume, it is an important component of the fluid flow controls system.If the flow in the pipe is lager than start-up volume, the magnetic valve will be moved by the force of flow pressure, and then it will trigger the reed switch that same sealed in the vavle and send the signal . When the flow volume reduce lower than the start-up volume,magnetic valve core will be forced back to theoriginal place by the reset spring in the vavle.

Packaging & Shipping

G1/4'' threading type plastic water flow switch for water treatment

Our Services

G1/4'' threading type plastic water flow switch for water treatment

Company Information

Dongguan JInhefeng Industrial Electrical Co.,ltd was founded from i2003 till now, Our company has always served as the agent and distributor for Switzerland (Carol), France (Syde) and other European automaton product series. Since 2009, in order to expand the business project, guided by professional European technology, this company conducted independent product R & D, and began to produce and process automation equipment products in October of 2009.Our main products including: liquid level sensor/float sensor/flow switch/cable float/proximity switch that widle applicate in the different industrial equipment area. The factory is located in No.32 Experimental Road, Quantang Industrial Zone, Liaobu Town, Dongguan City.
Currently continue operating products include: liquid level sensing switch/proximity switch/solid state relay/temperature sensing switch/electromagnetic valve/heat radiating fan. Efforts are required for promoting the electrical and mechanical automation, continue to develop a series of new products, which widely used in industrial and civil fields, and actively provide customers with various technical supports.
Jinhefeng's Spirits: Faith moves mountains; jointly create fruit with a common goal
