UL Approved Aluminium Enamelled Winding Wire use for dry transformer

FOB Price:

US 0.1-4.9 / Kilogram

Min.Order Quantity:

500 Kilogram/Kilograms

Supply Ability:

900000 Kilogram/Kilograms per Month

Port:

ShangHai/TianJin/ShenZhen Port

Place of Origin:

Shaanxi, China (Mainland)

Payment Terms:

L/C,D/A,D/P,T/T,Western Union,MoneyGram

Brand:

Galaxy

Products Model:

QZ(PEW), QZY(EIW), Q(ZY/XY)(EI/AIW)

Products Details
Company Profile

Quick Details

Brand Name: Galaxy

Model Number: QZ(PEW), QZY(EIW), Q(ZY/XY)(EI/AIW)

Place of Origin: Shaanxi, China (Mainland)

Packaging & Delivery

Packaging Details: inner packing:different plastic reels according to wire diameter outer packing:cartons
Delivery Detail: 7-10 working days

Specifications

UL Approved Aluminium Enamelled Winding Wire use for dry transformer

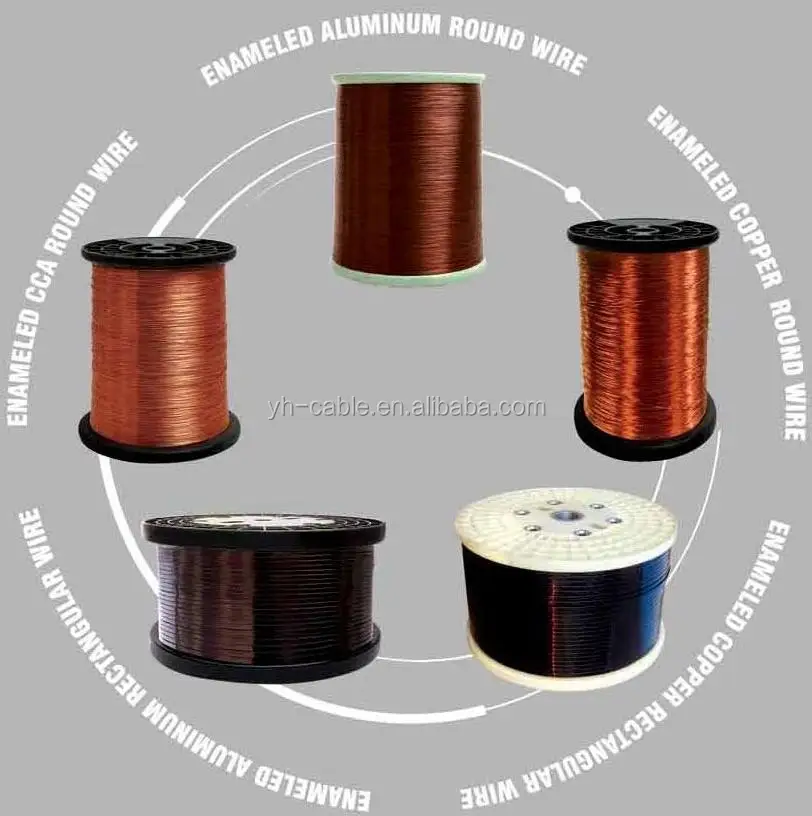

Enameled aluminum wire

Enameled aluminum round wire is a type of winding wire made by electric round aluminum rod

which drawn by dies with special size, then over coated with enamel repetitiously

Product details

Size: 0.20mm-6.0mm

Class: 130, 155, 180, 200, 220C

Enamel: QZ(PEW), QZY(EIW), Q(ZY/XY)(EI/AIW)

Paint: Polyester, Polyester-imide, Polyamide-imide.

Insulation: 0.005-0.14mm

Specification: 1730,1736,1745,1754

Product features

1. Excellent resistance to abrasion and solvent;
2. Excellent electricity performance;
3. Excellent heat shock, adherence and flexibility;
4. High cut through.

Testing Report:

Name	Enamelled Aluminum Wire
Type	QZYL-2/180
Diameter	2.40mm
Standard	IEC60317-15
Test Item	Unit	Technical Requirement	Test Result
Appearance		bright and clean, Uniform color,	Ok
Overall Diameter	mm	<2.518	2.483
Conductor Diameter	mm	±0.024	2.402
Thickness of insulation film	mm	>0.079	0.081
resistance	Ω/m	<0.006354	0.006069
Elongation		>15%	27%
winding test		no cracking	Ok
Tensile Test		15% No cracking	no cracking
Peel twist		insulation film Without losing adhesion	Ok
Jerk test		insulation film Without losing adhesion	Ok
Resistance to heat shock	C	200C insulation film no cracking	Tensing 15% half an hour, no cracking
Resistance to solvent		Standard solvent "H" Pencil	2H is ok
Breakdown Voltage	KV	5.0KV	14.8,14.8,14.9,14.2,14.8
package		Meet the export standards	Ok
Quality Control Result		Ok

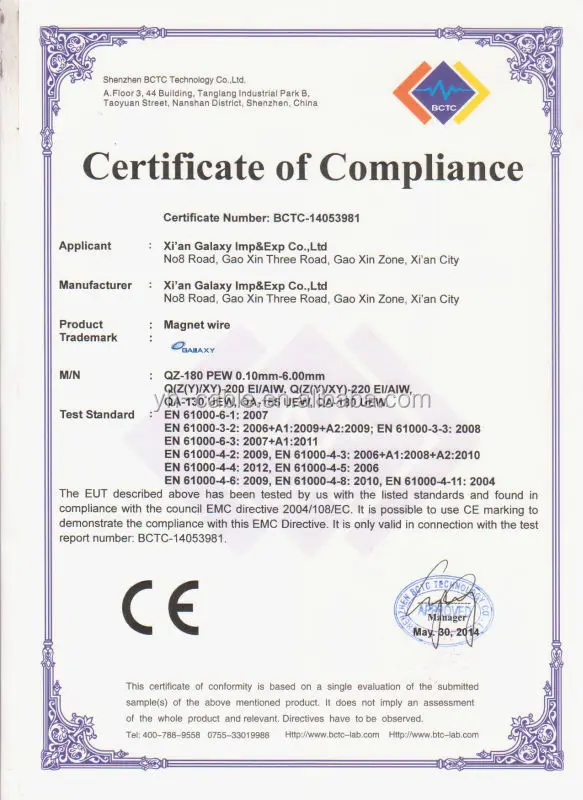

Certification

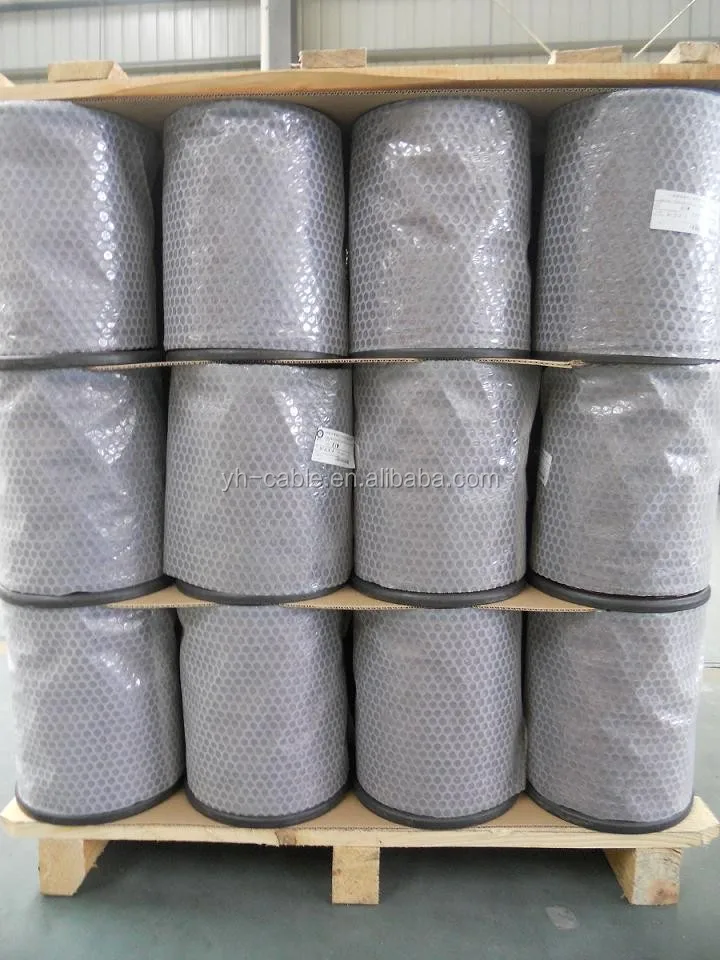

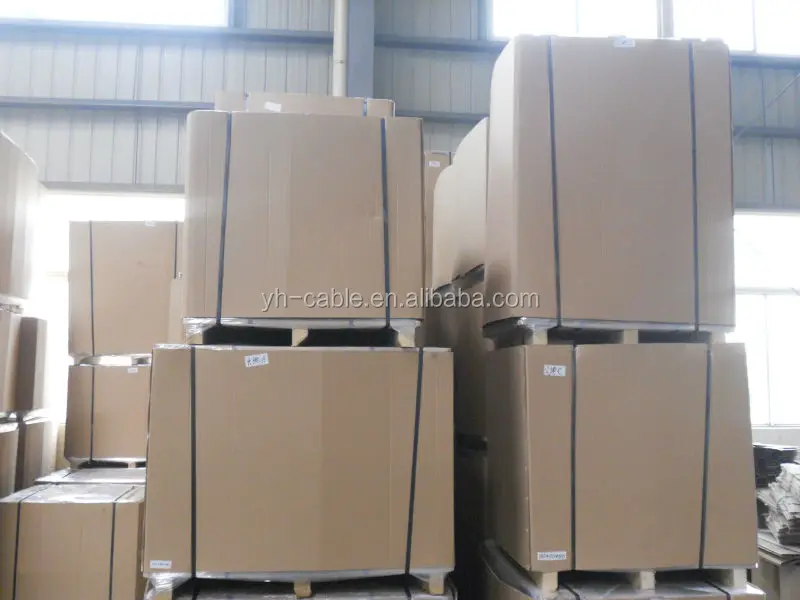

Packing:

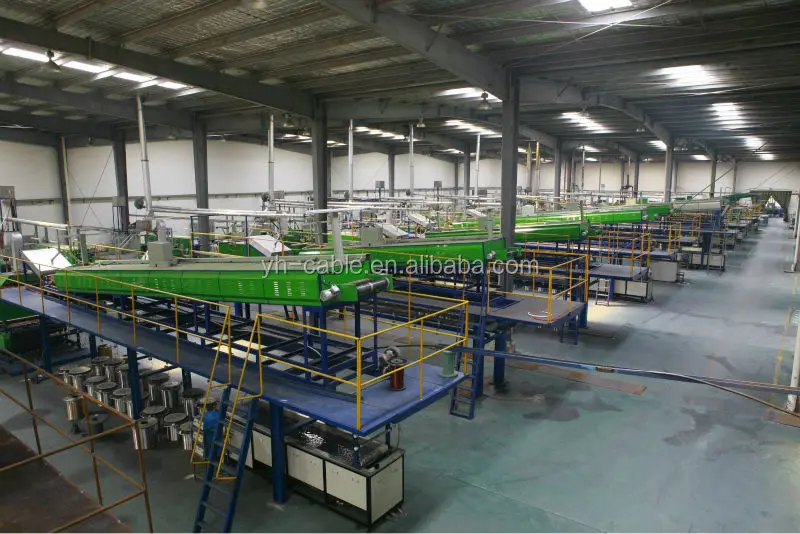

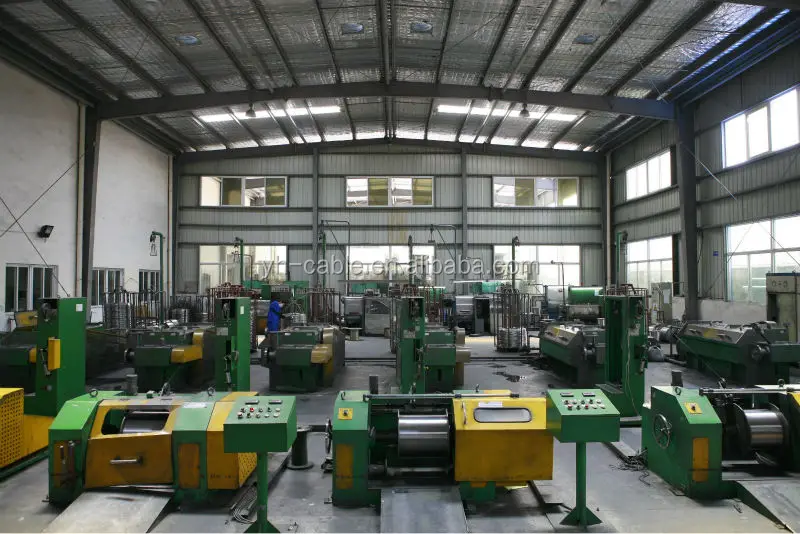

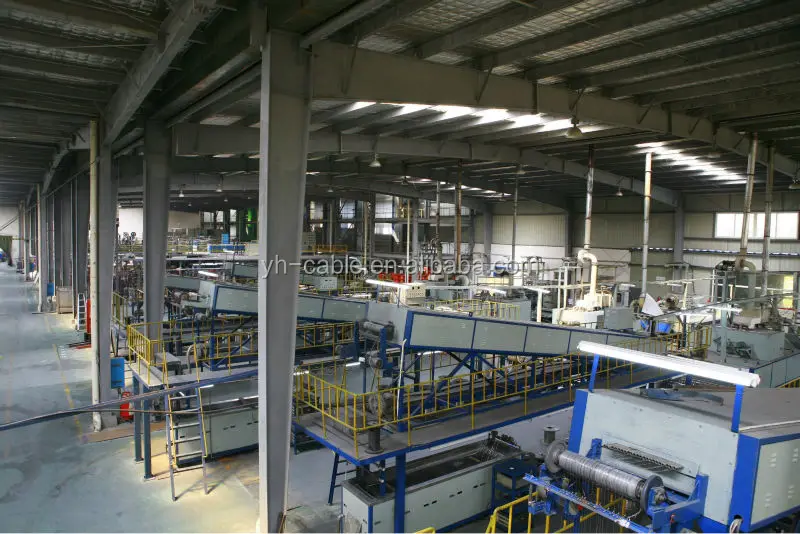

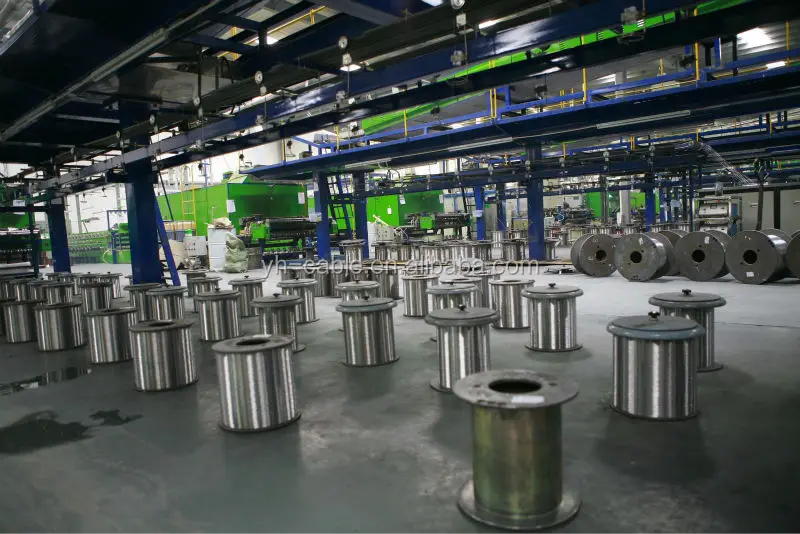

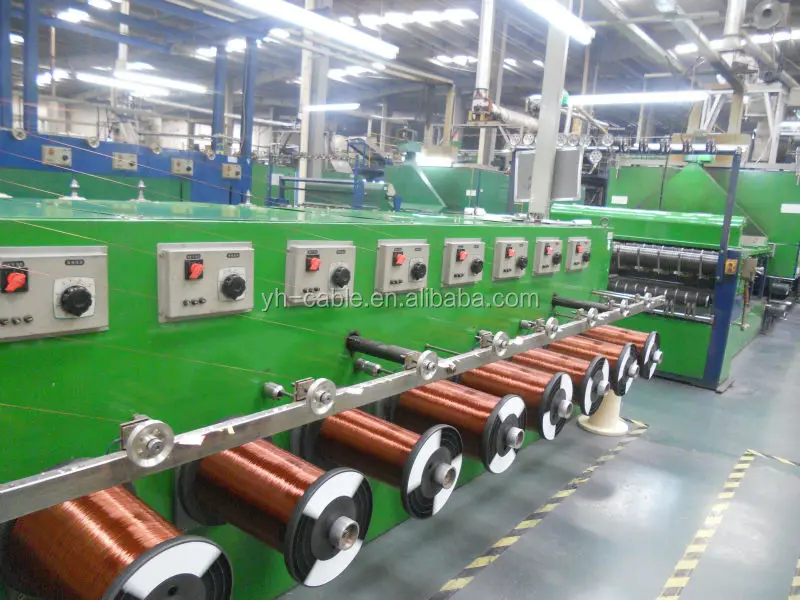

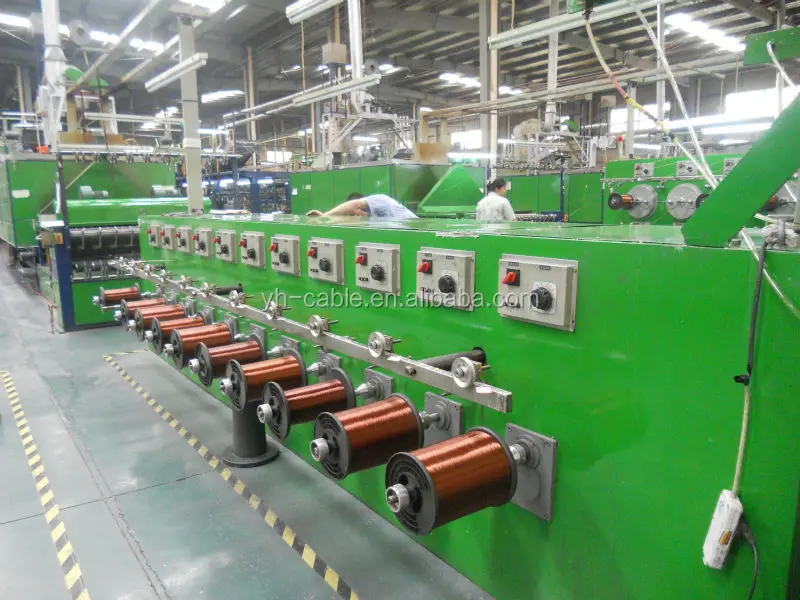

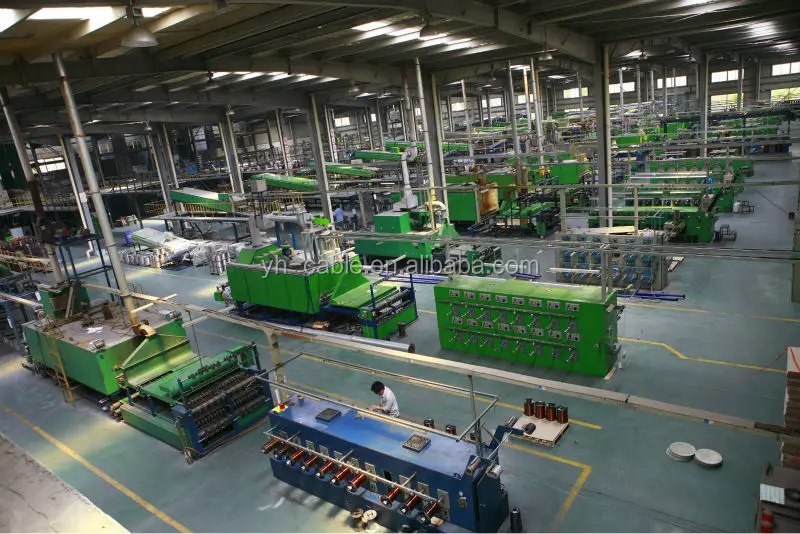

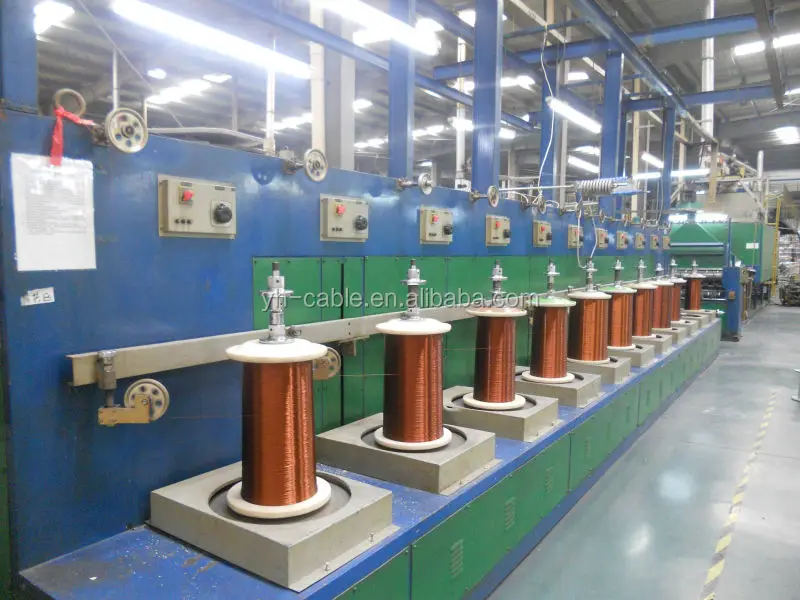

Produce Process

Xi'an Galaxy Imp & Exp Co., Ltd is a professional supplier, which is engaged in exporting all kinds of enameled copper wires,enameled aluminum wires,enameled copper clad aluminum wires,CCA/CCS/CCAM wires,electric wires and cables , heating cables and mats,power cables,welding cables, solar cables, communication cables and optical fiber wires, We are located in Xi'an city Shaanxi province. In recent years, Among our clients from Northern Europe,Southeast Asia,Africa,Western Europe and so on. we enjoy a good reputation through several year's effort and experience. In addition, our products can meet GB, IEC, UL,BS,AS,ASTM standards. Now our foreign trade department is a strong cohesive force team with professional skills, we are always available to discuss your requirements and ensure full customers' satisfaction. We also welcome OEM and ODM orders. Whether selecting a current product from our catalog or seeking engineering assistance for your application, you can talk to us about your sourcing requirements, we will try our best to give you a perfect solution at first time. Your satisfaction is our motivation . we warmly welcome your contacting.
