Home > Products > Materials > Polyurethane Heat Retaining Panel

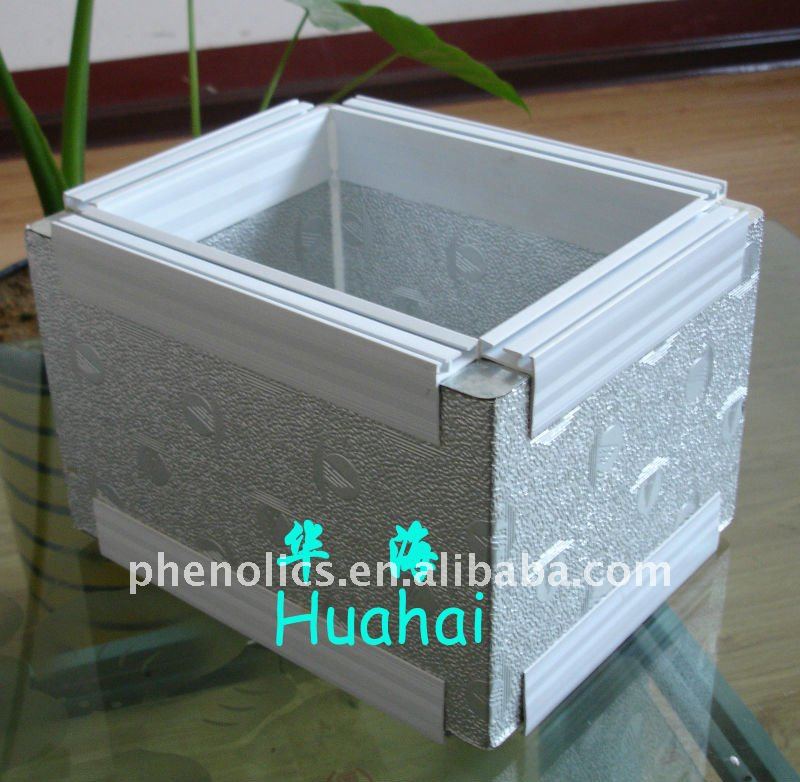

25mm Phenolic foam pre insulated Ducting Panel with aluminum Foil

FOB Price:

Open price

Min.Order Quantity:

500 Square

Supply Ability:

10000 Square per Meter/Square

Port:

Qingdao

Place of Origin:

Payment Terms:

L/C,T/T

Brand:

Products Model:

Products Details
Company Profile

Quick Details

Packaging & Delivery

Packaging Details: 20mm panel:10pcs per package,packing by plastic paper and carton 25mm panel:8pcs per package,packing by plastic paper and carton
Delivery Detail: within 7 days after receiving the deposit money

Specifications

Phenolic foam pre insulated Ducting Panel with aluminum Foil/color steel:

Technical Data Sheet of Phenolic Foam Air Duct Panel
ITEM	UNIT	SPECIFICATION
Density	kg/m3	Over 60
Double side Aluminum thickness	mm	0.08
Total thickness	mm	20,25,30mm
Thermal Conductivity	w/m.k	0.02
Flexural Strength	Mpa	1
combustion property	~	Class “0” BS Part6&7
Water Absorption Rate	%	1.9
Max Smoke Density	%	2%
Dimension Change Rate	%	0.3
Compressive Strength	Mpa	0.56mpa
Service Temperature	C	-150 to150
Standard Size	mm	3900120020/25/30mm,

Established in 2002 Tengzhou Huahai Group is a high and new technology enterprise which is located in Tengzhou City,Shandong Province China.Our group covers an area of 66,670 square meters. and has 612 employees.
Our main products are, HVAC Phenolic foam air ducting panel ,Heat resistant insulation board Pre-insulated PU air ducting panel,PU sandwich panels and PU Cold storage panel .
The primary members of the group include
Tengzhou City Huahai New Insulation Materials Co., Ltd.
Tengzhou Jutong Import & Export Trade Co.,ltd
Shandong Plant Co.,ltd
Huahai New Thermal Insulation Materials Co., Ltd. established in 2002, developed Phenolic foam composite board continuous production process with the cooperation of some universities and institutes. The new process ranked among the first in the world and it surmount the traditional moulding production process and was the first one in China which can produce continuously. The production line was praised as "the first line in China" by "China Building Materials News" and the experts. Moreover, aluminum foils and phenolic foam composite boarsd have passed the evaluation of provincial level scientific and technological achievement test. We have attained IS09001:2000 Quality Management System Certification and IS014001:2004 Environmental Management System Certification and have been elected as the standing committee member of China Thermal-Sound-Insulation Material Association.
We will follow the spirit of "build environmentally friendly home" to produce insulation and fireproof composite boards with advanced technology. We will build a phenolic city and make Huahai Group the largest phenolic foam production base in China with the top technology, quality and service.

Basic Information

Business Type: Manufacturer,Trading Company
Main Products:
Location: Shandong, China (Mainland) Asia
Year Established:

Trade Capacity

Accepted Delivery Terms: FOB,CFR,CIF,EXW
Accepted Payment Currency: USD
Accepted Payment Type: L/C,D/A,D/P,T/T,Western Union,MoneyGram,Credit Card,PayPal,Escrow,Cash
Nearest Port: QINGDAO

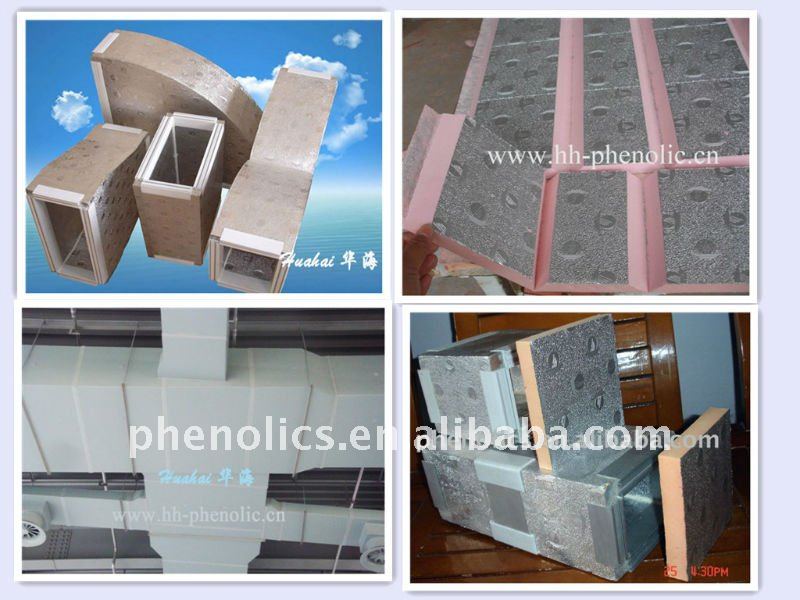

Company Photos
