Home > Products > Materials > Polyurethane Heat Retaining Panel

Polyisocyanurate PIR Insulation

FOB Price:

US 4.5-7 / Square Meter

Min.Order Quantity:

1000 Square

Supply Ability:

10000 Square per Meter/Square

Port:

Qingdao

Place of Origin:

Shandong, China (Mainland)

Payment Terms:

L/C,D/P,T/T

Brand:

Huahai

Products Model:

HH-TZ2

Products Details
Company Profile

Quick Details

Brand Name: Huahai

Model Number: HH-TZ2

Place of Origin: Shandong, China (Mainland)

Packaging & Delivery

Packaging Details: air duct panel export standard plastic bag and carton,10pcs per pack
Delivery Detail: --

Specifications

Polyisocyanurate (PIR) Insulation

Key Specifications

PU/PIR Foam Air Duct Panel
Fire Proof Performance: Class 'B'

ISO 9001:2008 ISO 14001:2004

Brief Introduction

Huahai PU Foam Pre-insulated Air Duct is used for air distribution in central air conditioning. The air ducts are made of PU Foam Sandwich Panels, the panels composite rigid polyurethane insulation foam faced on both sides with a protective low vapour permeability 80um aluminum foil.

PIR Foam pre-insulated Air Duct Panel is used for air distribution in central air conditioning, the panel is protected by aluminum foil,colored steel or iron sheet as protective layer, layer 70-220 micron thickness.

Huahai PIR panel is protected by 80 micron aluminum foil, embossed or smooth aluminum surface, light weight.

No benzene,no formaldehyde,no CFC.

Advantages

They are completely CFC and HCFC free, and are of highly thermal resistance.

Especially suit for using in air-conditioning and heating system installations.

Data Sheet of PU & PIR duct panel

Coating: aluminum foil/color steel/galvanized iron/

Core Material: polyurethane/polyisocyanurate foam
Thickness of aluminum foil: 60-80 micron
Density: 45-50kg/m3(PU) 50-55kg/m3(PIR)

Thermal Conductivity: 0.022-0.025w/m.k(PU) 0.019-0.022w/m.k(PIR)

Total thickness: 20/25/30mm
Size: 1.2m(w)x2.95/3.95m(L)
MOQ: 1000 square meters

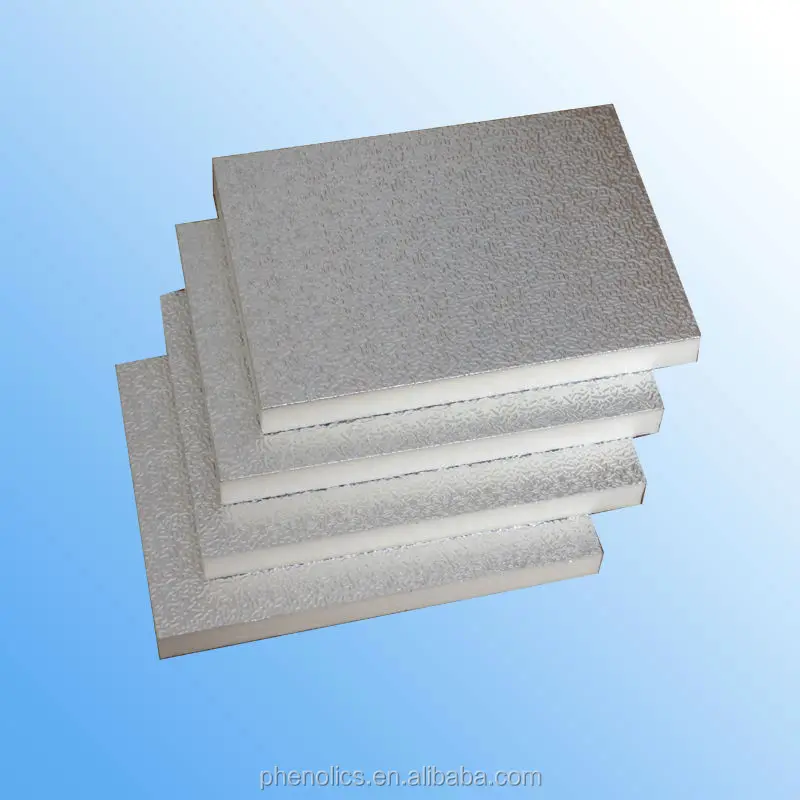

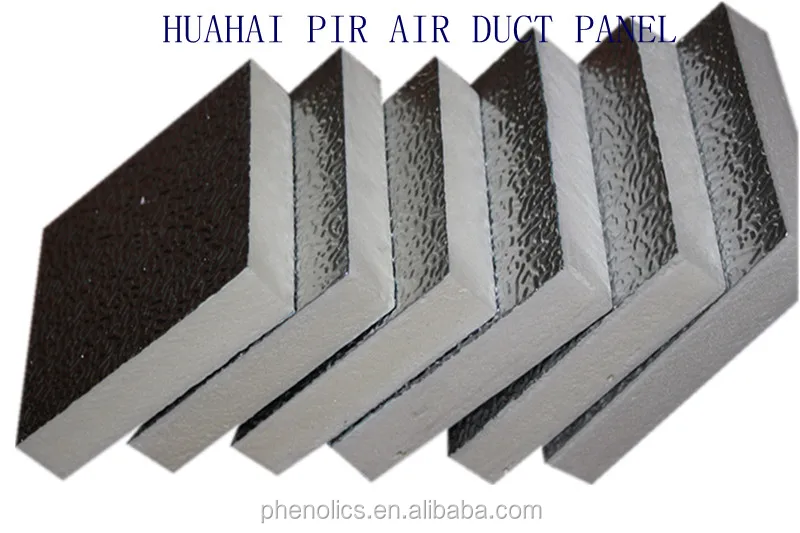

Product Pictures

You Should Choose Huahai:

We provide air duct panels to Qingdao International Sailing Center & Water Cube (2008 Beijing Summer Olympic Games National Swimming Center) and so on.

China Biggest & Earliest air duct manufacturer.

The Recommended Products of Olympic Construction Projects and Major National Construction Projects.

Established in 2002 Tengzhou Huahai Group is a high and new technology enterprise which is located in Tengzhou City,Shandong Province China.Our group covers an area of 66,670 square meters. and has 612 employees.
Our main products are, HVAC Phenolic foam air ducting panel ,Heat resistant insulation board Pre-insulated PU air ducting panel,PU sandwich panels and PU Cold storage panel .
The primary members of the group include
Tengzhou City Huahai New Insulation Materials Co., Ltd.
Tengzhou Jutong Import & Export Trade Co.,ltd
Shandong Plant Co.,ltd
Huahai New Thermal Insulation Materials Co., Ltd. established in 2002, developed Phenolic foam composite board continuous production process with the cooperation of some universities and institutes. The new process ranked among the first in the world and it surmount the traditional moulding production process and was the first one in China which can produce continuously. The production line was praised as "the first line in China" by "China Building Materials News" and the experts. Moreover, aluminum foils and phenolic foam composite boarsd have passed the evaluation of provincial level scientific and technological achievement test. We have attained IS09001:2000 Quality Management System Certification and IS014001:2004 Environmental Management System Certification and have been elected as the standing committee member of China Thermal-Sound-Insulation Material Association.
We will follow the spirit of "build environmentally friendly home" to produce insulation and fireproof composite boards with advanced technology. We will build a phenolic city and make Huahai Group the largest phenolic foam production base in China with the top technology, quality and service.
