PRODUCT  INTRODUCTION

Polyurethane foam sandwich panel(the abbreviation of Polyurethane is PU/PUR sandwich panel.it is fit for the projects which have serious require of keeping warm. Polyurethane core material is considered to the best material in keeping warm and thermal insulation.

This PUR core panel combines low thermal conductivity ratio and good fire resistance together with available thicknesses up to 200mm.

It is an ideal solution for cold storages as well as for facades with ultimate requirements for energy efficiency and fire safety.

PRODUCT  SPECIFICATION

1.Structure: Color Metal + PU foam + Color Metal

2.Covering Metal Thick: 0.4mm,0.5mm,0.6mm

3.PU foam Density: 40-42kg/m3

4.Length: According to the customer request

5.Width: 985mm/935mm

6.Thickness: 50/75/100/120/150/180/200/220mm

7.Thermal Conductivity:0.022W/M.K

8.Impact Strength:over150kpa

9.Temperature Range:-200°C--+150°C Specs

PRODUCT  PROPERTIES

1.To using deeper irregularities groove structure and foam tightly improver panel's seams airtightness

2.Designed special for building large and medium-sized cold storage,it combined with light-steel-frame to assemble,the cold storages,its shape,area,volume,can free design according to different needs.

3.Germany imported continuous production line, delicate foam, uniform density, internal void-free,energy saving and environmental protection, economic and beautiful, good thermal insulation properties, the length can be cut according to customer requirements.

PRODUCT  ADVANTAGES

1.Noble and elegant style

2.Environment-friendly and Energy-saving

3.Durable In Use

4.Duration Compression

5.Strong and Solid

6.Stylish Appearance

7.Good supporting, heat resistant, sound-insulated, sound absorption, light quality, non-toxic, odorless, green environmental protection.

PRODUCT  APPLICATIONS

1.Convenient food,condiment production and storage.

2.Vegetables,fruits,cold storage,fresh and processing.

3.Agricultural and sideline products trading market.

4.Low temperature logistics distribution centerfo fresh and frozen food

5.Vaccines, biological products, pharmaceuticals, chemicals and others low temperatures storage.

Sandwich panel thickness and cold storage temperature range

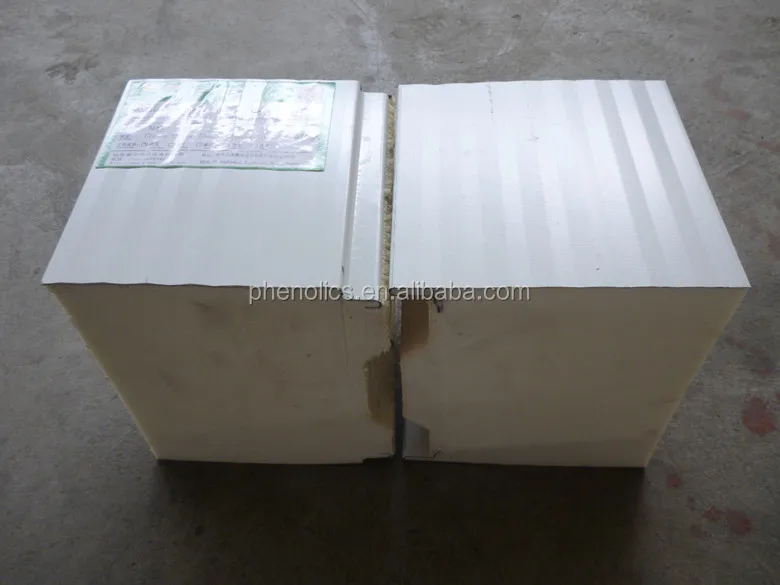

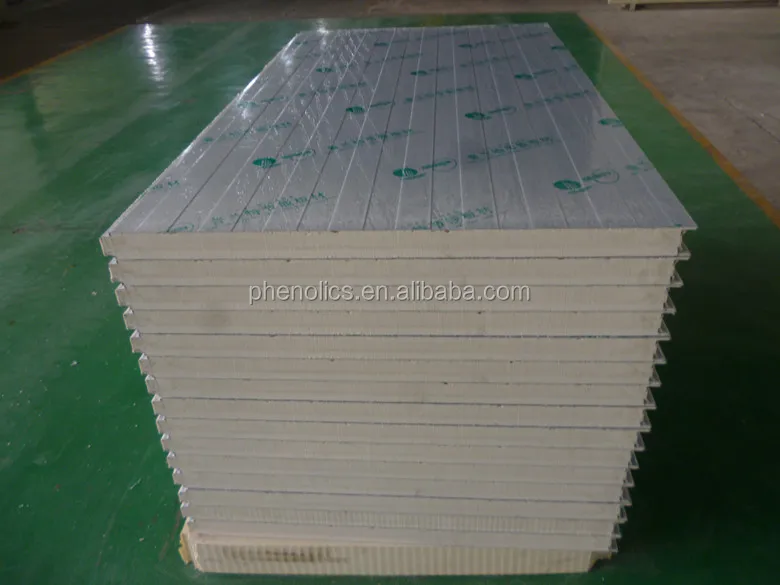

PRODUCT PICTURES

Main export countries and regions

Our cold room panels  have been exported to more than thirty countries and regions such as USA , Australia, Korea, Cyprus, Iran, Singapore, India, Thailand, Myanmar, Norway and Canada, Trinidad and Tobago,Peru,Japan, Guam, Ghana,Laos, UAE, Indonesia, Taiwan, Panama, Philippines, etc.
