Home > Products > Materials > Insulation Material

0.030mm polyester film for insulating, jelly filled telephone cable, videotape

FOB Price:

US 1,500-3,100 / Ton

Min.Order Quantity:

200 Kilogram/Kilograms

Supply Ability:

200 Ton/Tons per Month

Port:

Shanghai or Ningbo

Place of Origin:

Zhejiang, China (Mainland)

Payment Terms:

T/T

Brand:

Tianhong

Products Model:

Polyester

Products Details
Company Profile

Quick Details

Brand Name: Tianhong

Model Number: Polyester

Place of Origin: Zhejiang, China (Mainland)

Packaging & Delivery

Packaging Details: 1.Inner-plastic bag,Outside-carton,Then put on a plywood pallet 2.Inner-plastic bag,Outside plywood wooden box
Delivery Detail: Within 10 days after getting deposit.

Specifications

1.For insulating, jelly filled telephone cable, videotape
2.Printing,packaging,covering

1.Usage for 0.030mm polyester film

1.For insulating, jelly filled telephone cable, videotape

2.Printing,packaging,covering

3.Metalizing,lamination

4.Capacitor

5.Used for sheet moulding as the fiberglass sheet

2.Specifications

Thickness	0.012mm-0.25mm
Width	5mm-2000mm
Inner diameter(ID)	53.5mm or 76mm or 150mm 2.1in or 3.0in or 5.9in
Outer diameter(OD)	250mm-550mm
Color	Clear,Milk
Packaging	1.Inner-plastic bag,Outside-carton,Then put on a plywood pallet 2.Inner-plastic bag,Outside plywood wooden box

structure	Thickness	weight(gr/m²)	Yield(m²/kg)
Polyester film	12mic	16.5	60
Polyester film	15mic	20.6	48
Polyester film	20mic	27.7	36
Polyester film	23mic	31.9	31
Polyester film	25mic	34.7	28
Polyester film	30mic	41.2	24
Polyester film	35mic	48.2	20
Polyester film	40mic	55.3	18
Polyester film	50mic	68.8	14
Polyester film	60mic	82.3	12
Polyester film	70mic	94.5	10
Polyester film	170mic	234.0

3.Test report and test machine

Name	Width (mm)	Thickness (mm)	Tension (N)	Tensile strength (MPa)	Elongation at break (%)
0.030mm polyester film	30.000	0.030	154.14	128.447	107.674

4.Production line

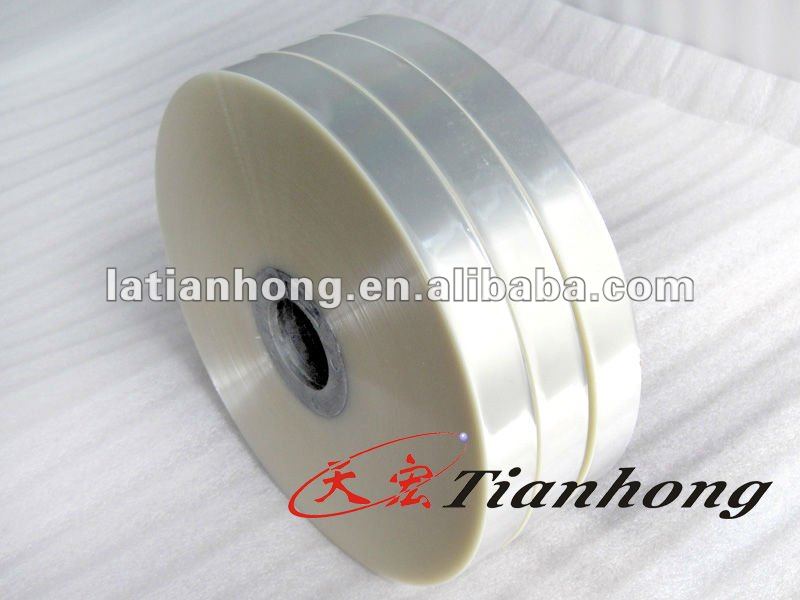

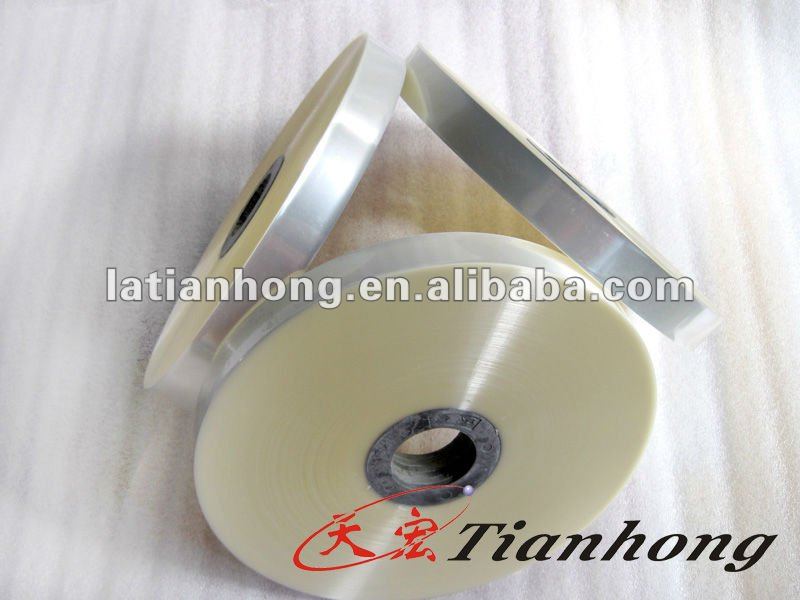

5.Product pictures

6.Packaging photos

a.Inner-plastic bag,Outside-carton,Then put on a plywood pallet

b.Inner-plastic bag,Outside plywood wooden box

7.Warehouse

8.Certificate:We have ISO,Supply SGS,Certificate of original,MSDS,Test report,ect

9.Sample: We are manufacturer,We supply free sample,But please pay express fee.

10.Contact:Please feel free to contact with me.

Mobile:86-15168349992

TEL:86-571-6106 1089

FAX:86-571-6381 0799

Linan Tianhong Telecommunication Material Co., Ltd was established in 2005, specializing in producing and processing raw materials for electric wires and cables and optical cables, such as aluminum mylar tape, copper mylar tape, copolymer coated aluminum tape(polyal tape), polyester film/tape, aluminum tape, copolymer coated steel tape(electro chrome coated steel tapes) and other telecommunication cable materials.

The company is located in the centralized Linglong Industrial Area of Linan, a state-level forest city with pleasant picturesque scenery, in Zhejiang Province. It enjoys superb convenient transportation, 100 kilometers away from Shanghai.

We take "good faith, high quality" as the basic principle of our company. Thanks to the full equipments, advanced technology, perfect detection means, and superior quality, the products of the company have passed ISO9001:2000 International Quality Management System Certification and ROHS Certification.

Laying emphasis on quality and high customer satisfaction, we have been able to earn the trust and loyalty of our clients over the years for delivering excellent quality products and prompt and reliable services.
