0.015mm polyester film for cable for packaging

FOB Price:

US 1,500-3,200 / Ton

Min.Order Quantity:

200 Kilogram/Kilograms

Supply Ability:

200 Ton/Tons per Month

Port:

Shanghai or Ningbo

Place of Origin:

Zhejiang, China (Mainland)

Payment Terms:

T/T

Brand:

Tianhong

Products Model:

0.015 mmPolyester

Products Details
Company Profile

Quick Details

Brand Name: Tianhong

Model Number: 0.015 mmPolyester

Place of Origin: Zhejiang, China (Mainland)

Packaging & Delivery

Packaging Details: 1.Inner-plastic bag,Outside-carton,Then put on a plywood pallet 2.Inner-plastic bag,Outside plywood wooden box
Delivery Detail: Within 10 days after getting deposit.

Specifications

1.For insulating, jelly filled telephone cable, videotape
2.For Printing,packaging,covering
3.For Metalizing,lamination

1.Usage:

1. 0.015mm polyester film For insulating, jelly filled telephone cable, videotape

2.For Printing,packaging,covering

3.For Metalizing,lamination

4.For Capacitor

5.For sheet moulding as the fiberglass sheet

2.Specifications:

Thickness	0.012mm-0.25mm
Width	5mm-2000mm
Inner diameter(ID)	38mm or 53.5mm or 76mm or 150mm 1.5in or 2.1in or 3.0in or 5.9in
Outer diameter(OD)	250-550mm
Color	Clear,Milk
Packaging	1.Inner-plastic bag,Outside-carton,Then put on a plywood pallet 2.Inner-plastic bag,Outside plywood wooden box

structure	Thickness	weight(gr/m²)	Yield(m²/kg)
PET film	12mic	16.5	60
PET film	15mic	20.6	48
PET film	20mic	27.7	36
PET film	25mic	34.7	28
PET film	30mic	41.2	24
PET film	35mic	48.2	20
PET film	40mic	55.3	18
PET film	50mic	68.8	14
PET film	60mic	82.3	12
PET film	70mic	94.5	10

3.Test report and test machine

Name	Width(mm)	Thickness (mm)	Tension (N)	Tensile strength (MPa)	Elongation at break (%)
PET FILM	20.000	0.023	95.17	206.899	112.447

Name	Width (mm)	Thickness (mm)	Tension (N)	Tensile atrength (MPa)	Elongation at break (%)
PET FILM	20	0.036	391.97	139.99	138.616

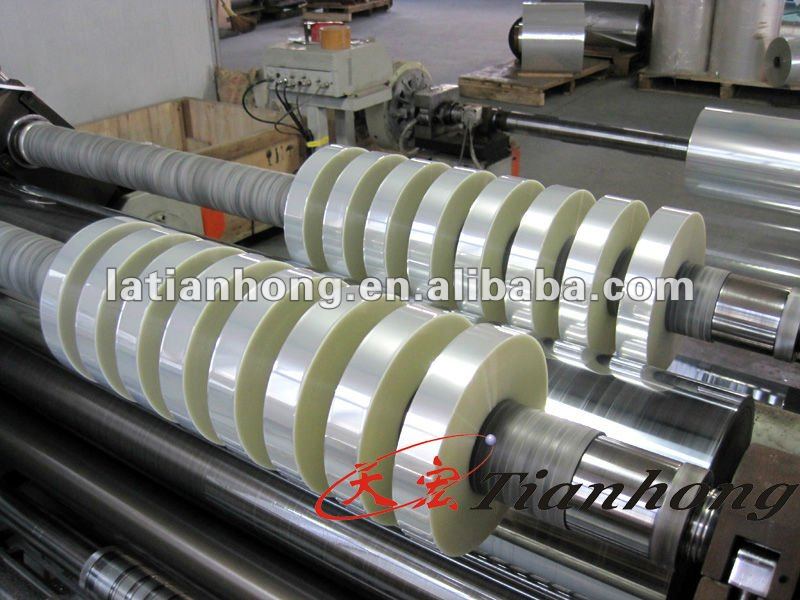

4.Production line

5.Product pictures

6.Packaging photos

a.Inner-plastic bag,Outside-carton,Then put on a plywood pallet

b.Inner-plastic bag,Outside plywood wooden box

7.Warehouse

8.Certificate:We have ISO,Supply SGS,Certificate of original,MSDS,Test report,ect

9.Sample: We are manufacturer,We supply free sample,But please pay express fee.

10.Contact:Please feel free to contact with me

Mobile:86-15168349992

TEL:86-571-6106 1089

FAX:86-571-6381 0799

Linan Tianhong Telecommunication Material Co., Ltd was established in 2005, specializing in producing and processing raw materials for electric wires and cables and optical cables, such as aluminum mylar tape, copper mylar tape, copolymer coated aluminum tape(polyal tape), polyester film/tape, aluminum tape, copolymer coated steel tape(electro chrome coated steel tapes) and other telecommunication cable materials.

The company is located in the centralized Linglong Industrial Area of Linan, a state-level forest city with pleasant picturesque scenery, in Zhejiang Province. It enjoys superb convenient transportation, 100 kilometers away from Shanghai.

We take "good faith, high quality" as the basic principle of our company. Thanks to the full equipments, advanced technology, perfect detection means, and superior quality, the products of the company have passed ISO9001:2000 International Quality Management System Certification and ROHS Certification.

Laying emphasis on quality and high customer satisfaction, we have been able to earn the trust and loyalty of our clients over the years for delivering excellent quality products and prompt and reliable services.
