Home > Products > Materials > Insulation Material

Copper foil Polyester film for Cable shielding

FOB Price:

US 8,500-15,000 / Ton

Min.Order Quantity:

1 Ton/Tons

Supply Ability:

200 Ton/Tons per Month

Port:

Shanghai or Ningbo

Place of Origin:

Zhejiang, China (Mainland)

Payment Terms:

D/P,T/T

Brand:

Tianhong

Products Model:

CU PET

Products Details
Company Profile

Quick Details

Brand Name: Tianhong

Model Number: CU PET

Place of Origin: Zhejiang, China (Mainland)

Packaging & Delivery

Packaging Details: a.Carton,Then put on a plywood pallet b. Inner-plastic bag,Outside-carton,Then put on a plywood pallet
Delivery Detail: 15 days after deposit

Specifications

1.High tensile strength
2.For shielding materials
3.Have ROHS,ISO9001,test report

Product Description

1.Application

1.Used in coaxial cable, local area network wire and electronic communications cable , computer peripheral wire , and other needs of anti interference shielding.

2.Copper foil provides conductivity and electromagnetic insulation. PET film provides electrical insulation and high mechanical resistance. On the other hand surlyn film makes the foil to engage and stick to applied surface.

2.Specification

Name	Copper foil Polyester film for Cable
Thickness	30micron-200micron
Width	5mm-120mm
ID	53mm±0.5mm or 75mm±0.5mm
OD	200mm-300mm
Color	Purple Bronze
Packaging	1.Inner-plastic bag,Outside-carton,Then put on a plywood pallet 2.Inner-plastic bag,Outside plywood wooden box
Application	1.Cable industry 2.Electronic parts 3.Mobile parts 4.Computer parts 5.For radiator fin

3.Test report and Test machine

Name	Width(mm)	Thickness (mm)	Tension (N)	Tensile strength (MPa)	Elongation at break (%)
Copper foil Polyester film for Cable	20.000	0.048	144.92	150.956	14.660

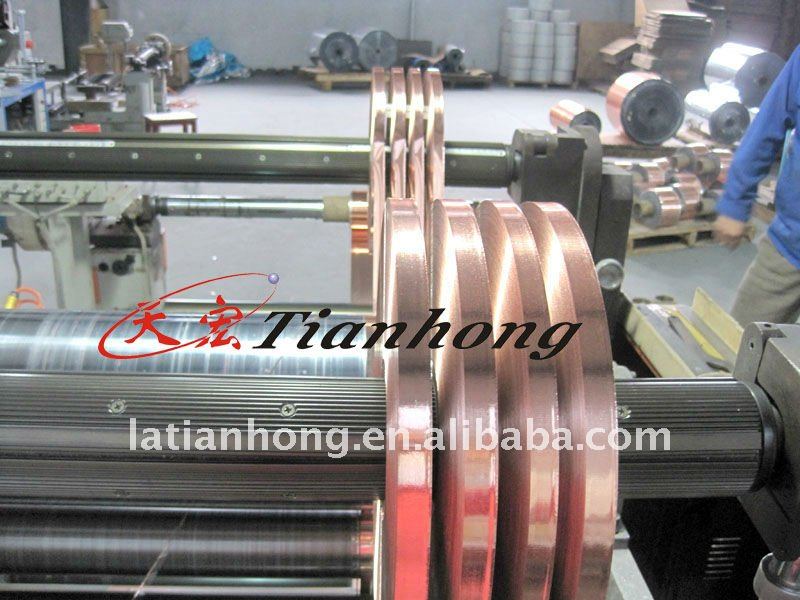

4.Production line: Lamination & Cutting

Lamination

Cutting

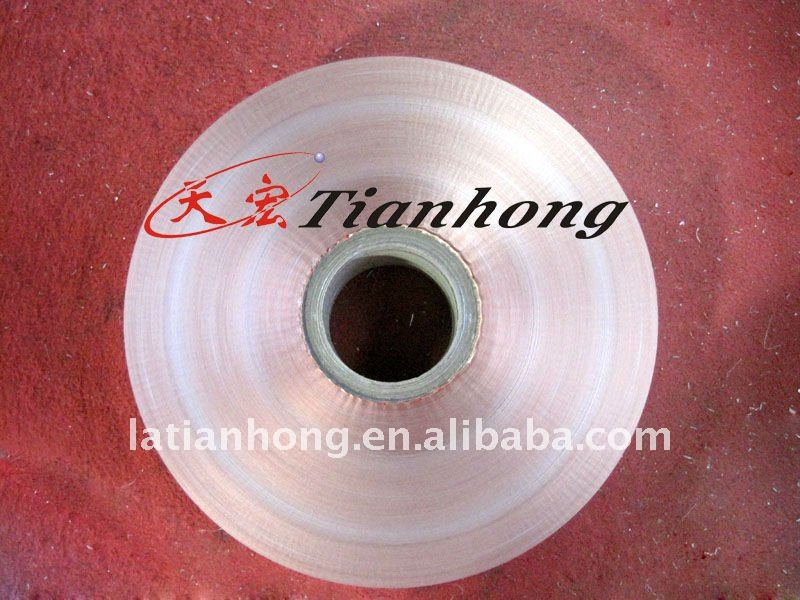

5.Product pictures

Packaging & Shipping

6.Packaging photos

a.Carton,Then put on a plywood pallet

b. Inner-plastic bag,Outside-carton,Then put on a plywood pallet

7.Warehouse

8.Application to Cables

9.Certificate:We have ISO,Supply SGS,Certificate of original,MSDS,Test report,ect

10.Sample: We are manufacturer,We supply free sample,But please pay express fee.

11.Contact:Please feel free to contact with me.

Mobile:86-15168349992

TEL:86-571-6106 8071

FAX:86-571-6381 0799

Linan Tianhong Telecommunication Material Co., Ltd was established in 2005, specializing in producing and processing raw materials for electric wires and cables and optical cables, such as aluminum mylar tape, copper mylar tape, copolymer coated aluminum tape(polyal tape), polyester film/tape, aluminum tape, copolymer coated steel tape(electro chrome coated steel tapes) and other telecommunication cable materials.

The company is located in the centralized Linglong Industrial Area of Linan, a state-level forest city with pleasant picturesque scenery, in Zhejiang Province. It enjoys superb convenient transportation, 100 kilometers away from Shanghai.

We take "good faith, high quality" as the basic principle of our company. Thanks to the full equipments, advanced technology, perfect detection means, and superior quality, the products of the company have passed ISO9001:2000 International Quality Management System Certification and ROHS Certification.

Laying emphasis on quality and high customer satisfaction, we have been able to earn the trust and loyalty of our clients over the years for delivering excellent quality products and prompt and reliable services.
