Single side Blue color aluminium PET film

FOB Price:

US 2,900-4,500 / Ton

Min.Order Quantity:

1 Ton/Tons

Supply Ability:

200 Ton/Tons per Month

Port:

Shanghai or Ningbo

Place of Origin:

Zhejiang, China (Mainland)

Payment Terms:

T/T

Brand:

Tianhong

Products Model:

Blue color aluminium PET film

Products Details
Company Profile

Quick Details

Brand Name: Tianhong

Model Number: Blue color aluminium PET film

Place of Origin: Zhejiang, China (Mainland)

Packaging & Delivery

Packaging Details: a.Inner-plastic bag,Outside-carton,Then put on a plywood pallet b.Inner-plastic bag,Outside plywood wooden box
Delivery Detail: Within 15 days after payment

Specifications

1.For wire cables
2.For insulation materials
3.For telephone lines
4.For flexible duct,air conditioner
5.For packaging

Product Description

1. Application

1.For wire cables

2.For insulation materials

3.For telephone lines

4.For flexible duct,air conditioner

5.For packaging

6.For champagne cap

2. Specifications

Name	Blue color aluminium PET film
Thickness	20u-150u
Width	5mm-1000mm
Inner diameter	38mm(1.5in) or 53.5mm(2.1in) or 76mm(3.0in)
Outer diameter	250mm-650mm
Color	Silver,Blue,Golden,Green,Pink
Packaging	1.Inner-plastic bag,Outside-carton,Then put on a plywood pallet 2.Inner-plastic bag,Outside plywood wooden box
Certificate	SGS,ISO9001
Tensile Strength	≥50 Mpa
Elongation at break	≥35%

Name:AL+PET
Structure	Thickness(mic)	Weight(g/m²)	Yield(m²/kg)
AL7+ PET12	21mic	36
AL7+ PET15	24 mic	39
AL9+ PET12	23mic	43	23
AL9 +PET15	26mic	48	21
AL9 +PET19	30mic	54	19
AL9 +PET23	34mic	60	17
AL12 +PET12	26mic	52	19
AL12 +PET15	29mic	56	18
AL12 +PET19	33mic	62	16
AL12 +PET23	37mic	67	15
AL12 +PET36	50mic	87	12
AL15 +PET19	36mic	70	14
AL25 +PET12	39mic	87	12
AL25 +PET23	50mic	102	10
AL40 +PET12	54mic	127	8
AL40 +PET15	57mic	131	8
AL40 +PET23	65mic	143	7
AL40 +PET36	78mic	161	6
AL50 +PET12	64mic	154	6

3.Test report and test machine

Width(mm)	Thickness (mm)	Tension (N)	Tensile strength (MPa)	Elongation at break (%)

17.000	0.043	96.03	131.370	106.381

4.Production line: Lamination & Cutting

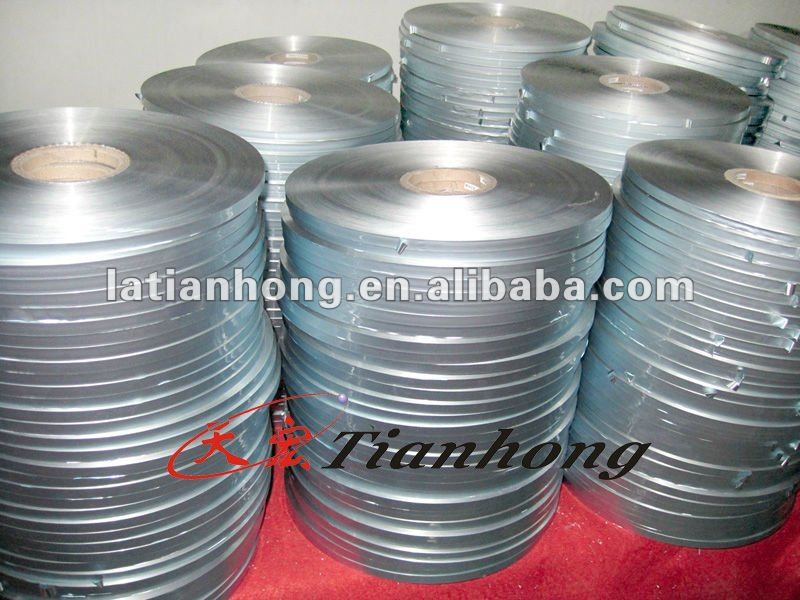

5.Product pictures

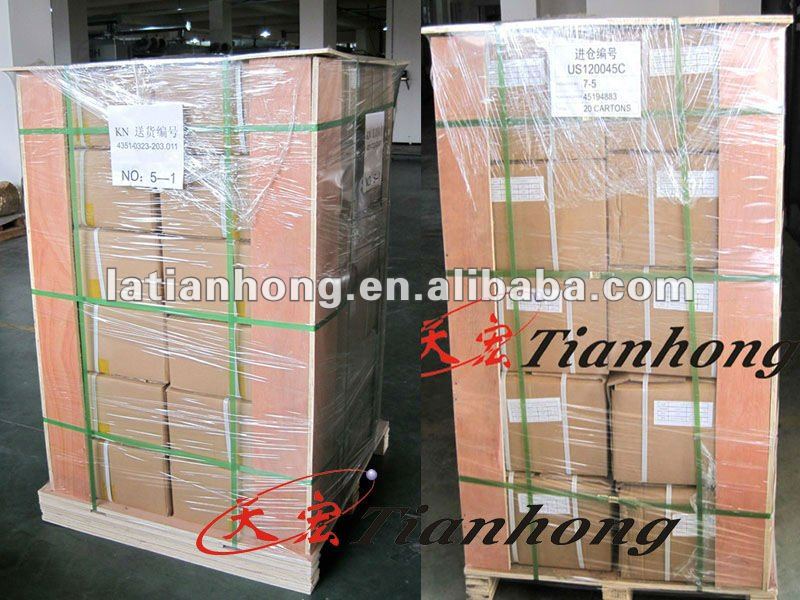

6.Packaging photos

a.Inner-plastic bag,Outside-carton,Then put on a plywood pallet

b.Inner-plastic bag,Outside plywood wooden box

7.Warehouse

8.Application to Cables and Flexible Ducts

9.Certificate:We have ISO,Supply SGS,Certificate of original,MSDS,Test report,ect

10.Sample: We are manufacturer,We supply free sample,But please pay express fee

11.Contact:Please feel free to contact with me

Mobile:86-15168349992

TEL:86-571-6106 1089

FAX:86-571-6381 0799

Linan Tianhong Telecommunication Material Co., Ltd was established in 2005, specializing in producing and processing raw materials for electric wires and cables and optical cables, such as aluminum mylar tape, copper mylar tape, copolymer coated aluminum tape(polyal tape), polyester film/tape, aluminum tape, copolymer coated steel tape(electro chrome coated steel tapes) and other telecommunication cable materials.

The company is located in the centralized Linglong Industrial Area of Linan, a state-level forest city with pleasant picturesque scenery, in Zhejiang Province. It enjoys superb convenient transportation, 100 kilometers away from Shanghai.

We take "good faith, high quality" as the basic principle of our company. Thanks to the full equipments, advanced technology, perfect detection means, and superior quality, the products of the company have passed ISO9001:2000 International Quality Management System Certification and ROHS Certification.

Laying emphasis on quality and high customer satisfaction, we have been able to earn the trust and loyalty of our clients over the years for delivering excellent quality products and prompt and reliable services.
