Home > Products > Materials > Insulation Material

aluminium polypropylene tapes

FOB Price:

US 2,800-3,300 / Ton

Min.Order Quantity:

1 Ton/Tons

Supply Ability:

200 Ton/Tons per Month

Port:

Shanghai

Place of Origin:

Zhejiang, China (Mainland)

Payment Terms:

L/C,T/T,Western Union

Brand:

Tianhong

Products Model:

Customer requirements

Products Details
Company Profile

Quick Details

Brand Name: Tianhong

Model Number: Customer requirements

Place of Origin: Zhejiang, China (Mainland)

Packaging & Delivery

Packaging Details: 1.Carton,Then put on a plywood pallet 2. Inner-plastic bag,Outside-carton,Then put on a plywood pallet
Delivery Detail: Up to customer's requirement

Specifications

Widely used in electronics, electrical, telecommunication.

Specifications

Thickness, length and width can according to customer requorements.

Name	Single side Co-Polymer coated Aluminum Tape
Thickness	150µ-600µ
Width	17mm-600mm
ID(inner diameter)	53.5mm / 76mm / 102mm / 150mm (2.1in / 3.0in / 4.0in / 5.9in)
ID material	Plastic or Metal
OD(outer diameter)	500-900mm
Length	1000m-2050m

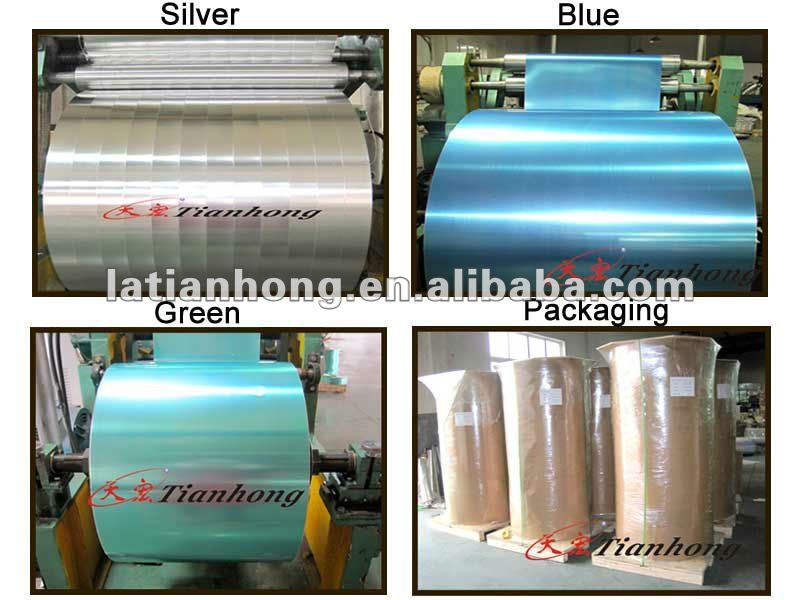

Color	Silver/Green/Blue
Packaging	1.Carton,Then put on a plywood pallet 2. Inner-plastic bag,Outside-carton,Then put on a plywood pallet

Name	Double side Co-Polymer coated Aluminum Tape
Thickness	200µ-600µ
Width	17mm-600mm
ID(inner diameter)	53.5mm / 76mm / 102mm / 150mm (2.1in / 3.0in / 4.0in / 5.9in)
ID material	Plastic or Metal
OD(outer diameter)	500-900mm
Length	1000m-2050m
Color	Silver/Green/Blue
Packaging	1.Carton,Then put on a plywood pallet 2. Inner-plastic bag,Outside-carton,Then put on a plywood pallet

Test report

No.	Name	Width (mm)	Thickness (mm)	Tension (N)	Tensile strength (MPa)	Elongation at break (%)
1	Poly+AL+Poly	70.000	0.300	1233.11	58.720	24.061

Contact

Mobile:86-15168349992

TEL:86-571-6106 1089

FAX:86-571-6381 0799

Linan Tianhong Telecommunication Material Co., Ltd was established in 2005, specializing in producing and processing raw materials for electric wires and cables and optical cables, such as aluminum mylar tape, copper mylar tape, copolymer coated aluminum tape(polyal tape), polyester film/tape, aluminum tape, copolymer coated steel tape(electro chrome coated steel tapes) and other telecommunication cable materials.

The company is located in the centralized Linglong Industrial Area of Linan, a state-level forest city with pleasant picturesque scenery, in Zhejiang Province. It enjoys superb convenient transportation, 100 kilometers away from Shanghai.

We take "good faith, high quality" as the basic principle of our company. Thanks to the full equipments, advanced technology, perfect detection means, and superior quality, the products of the company have passed ISO9001:2000 International Quality Management System Certification and ROHS Certification.

Laying emphasis on quality and high customer satisfaction, we have been able to earn the trust and loyalty of our clients over the years for delivering excellent quality products and prompt and reliable services.
