Brand Name: YONJOU
Model Number: F33K
Place of Origin: Zhejiang, China (Mainland)

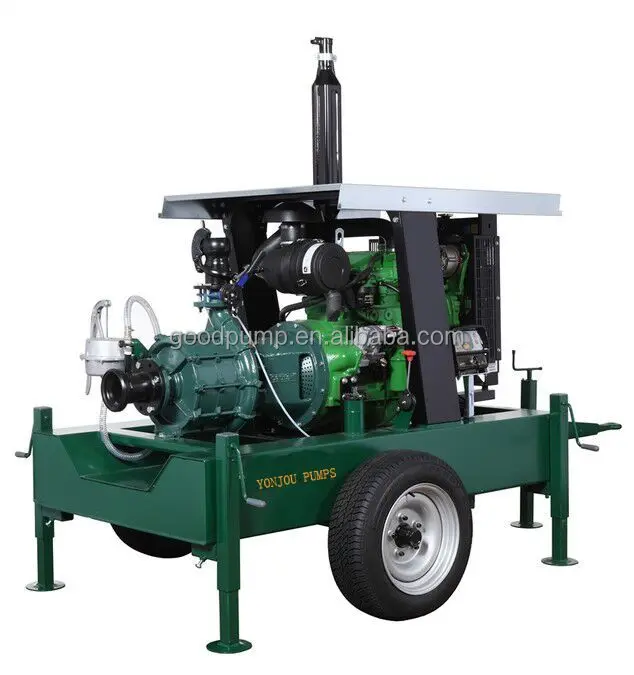

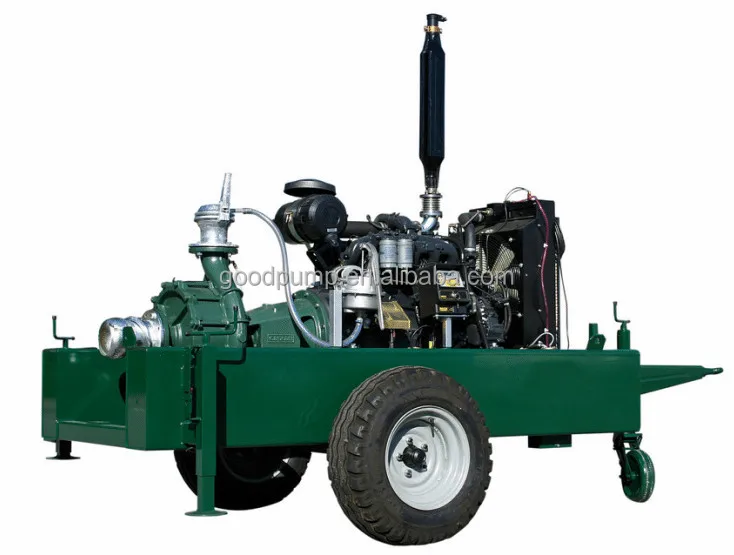

Farm Irrigation Diesel Water Pump
>>> Diesel Engine Brand: CUMMINS, DEUTZ.
>>> Pump casing is Italian brand
>>> Application Area: Main for farm irrigation
♦ Construction |
♦ Industrial |
♦ Municipal |
♦ Agricultural |
♦ Mining |
♦ Dewatering |
♦ Industrial Waste |
♦ Sewage |
♦ Oil Field |
♦ Petrochemical |
♦ Paper Mills |
♦ Processing |
>>> Characteristic
1 Medium: Clear Water
2 Parameter: Big Flow, Low head
3 Material: Cast Iron. Sealing type: packing seal
>>> Installation method
1 Constant Installation: Normally occur in a big projects, Constant water source and sprayers.
2 Mobile Unit: Normally occur somewhere water source unstable or no power supply.
Majority of them are assembled with diesel engine or gasoline engine.

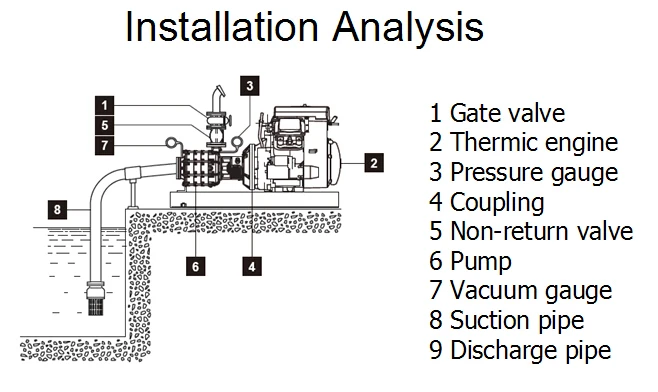

>>> Installation Analysis
>>> Equipped devices: the equipments you will get when buy the system.
1)Pump 2)Manual vacuum suction device 3)Diesel Enigine 4)Mobile pump truck 5)Suction pipe 5 meters
6)Discharge pipe 50 meters 7)Inlet quick joint DN100 8)Outlet quick joint DN80 9)Fuel tank
10)Control panel 11)Lifting device 12)Fly wheel coupling 13)Gate valve 14)Check valve
15)Inlet vacuum gauge 16)Outlet pressure gauge 17)Diesel rain cover 18)Parking device 1
9)Repari tool box 20)Service manual

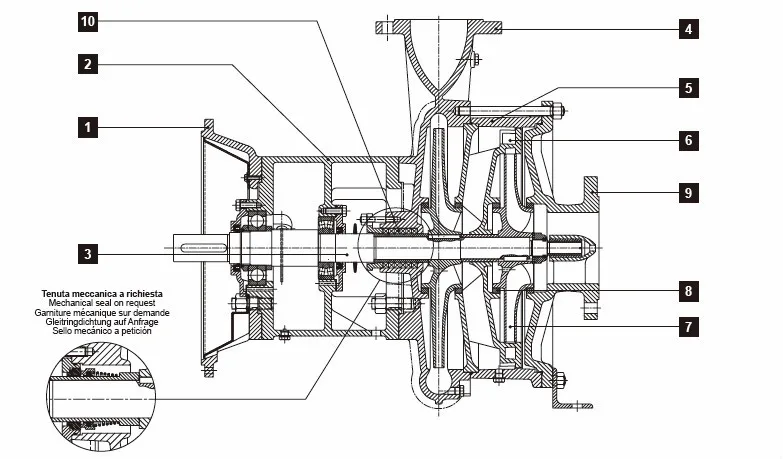

>>> Structure
>>> General Data
>>> Pump Testing
Each machine must be strictly tested before its delivery.
>>> Package
The goods are packed in new strong cases suitable for long distance ocean and air transportation.
1. Steel Bar with Plastic Film
2. Plywood Case
3. Steel Bar with Plywood
>>> Office & Workshop
>>> Production Process
>>> Customers' Visiting
>>> ISO9001:2008 & CE Certificate
1) What liquid do you transfer? Oil, Water, Food or Corrosive Chemical liquid, with solid particle or not, etc.
2) What's the flow or capcity (m3/h, L/m)?
3) What's the discharge head (m, feet, Mpa, bar )
