diesel engine pump diesel engine pump diesel engine pump

diesel engine pump

FOB Price:
US 100-9999 / Set
Min.Order Quantity:
1 Set/Sets
Supply Ability:
50 Set/Sets per Year
Port:
Shanghai/Ningbo
Place of Origin:
Zhejiang, China (Mainland)
Payment Terms:
L/C,T/T,Western Union
Brand:
YONJOU diesel water pump
Products Model:
diesel engine pump
Share:
  • Products Details
  • Company Profile

Quick Details

  • Brand Name: YONJOU diesel water pump

    Model Number: diesel engine pump

    Place of Origin: Zhejiang, China (Mainland)

Packaging & Delivery

  • Packaging Details: packing:standard export plywood case per Agricultural Irrigation Diesel Water Pump, moveble Diesel water pump, diesel fuel pump demension:1200*300*260mm Weight:500kg~2000kg per each agricultural irrigation diesel water pump complete set
  • Delivery Detail: Normally 15 days according to quantity

Specifications



Product Description

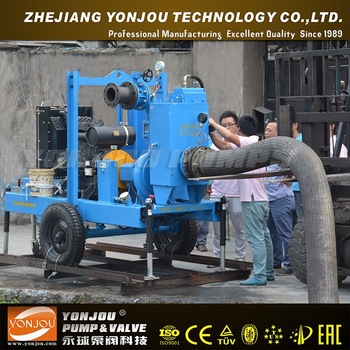

  Diesel Engine Pump









9m  Vacuum priming device Irrigation Water Pump for Farm











Application Area of agricultural irrigation diesel water pump



♦  Construction

♦  Industrial

♦  Municipal

♦  Agricultural

♦  Mining

♦  Dewatering

♦  Industrial Waste

♦  Sewage

♦  Oil Field

♦  Petrochemical

♦  Paper Mills

♦  Processing





Pump Specification:





Pump Type Split Casing Pump
Casing Material HT200
Impeller SS304,SS316,Copper,HT200
Pump Sealing Packing seal,Mechanical seal
Capacity Range 126m3/h~8520m3/h
Head Range 8m~140m
Inlet/Outlet diameter 6"(150mm)~32"(800mm)
Rotary Speed 1450rmp/2950rpm/585rpm/730rpm/970rpm
NPSH(r) 2.5m~7.5m
N.weight 165kgs~2550kgs
Pump Parts

Casing,Pump cover,Impeller,Shaft, Double suction sealing ring

Shaft sleeve,Bearing etc

Certificate

ISO9001:2008,CE,TUV





Basic Configuration of agricultural irrigation diesel water pump
:



Speed Sensor Governor
Pressure gauge 2 sets 12V battery
Water temp sensor Pump quality certificate
Common base Diesel engine handle book
Base fuel tank Heat exchanger
Lubricating oil pressure Lubricating heater
Water pressure gauge Pressure gage





Diesel engine specification:



Drive Variation Cummins,Deutz,Ricardo,Perkins or Chinese Diesel
Power Range 50HP~1066HP
Diesel driving Water cooled,air cooled
Cylinder 2 or 4
Cylinder diameter 95,96,100,102,105,110,113
Stroke 115,125,130,135
Displacement 3.26~9.49L
Engine Oil Capacity 13L,17L
Fuel consumption 218,224,231,251.6,258.4
N.weight 650kgs~2200kgs





Pumps Testing:







Company Information

>>>Zhejiang Yonjou Technology Co., Ltd  is manufcaturer with 105 emloyees.

It was established in 1995,  located in Yongjia country, Wenzhou city, Zhejiang province, borders Lishui on the west, Taizhou on the north, and Fujian to the south.

Our company is specialized in manufacturing high quality  oil pump, diaphragm pump, Diesel engine pump set, split& single stage& multistage centrifugal pump etc.





>>>Office&Workshop







>>>Customers' Visiting:







>>>Trade Show:







>>> Certificate:
