Brand Name: YONJOU
Model Number: 250S-60/4135AG
Place of Origin: China (Mainland)

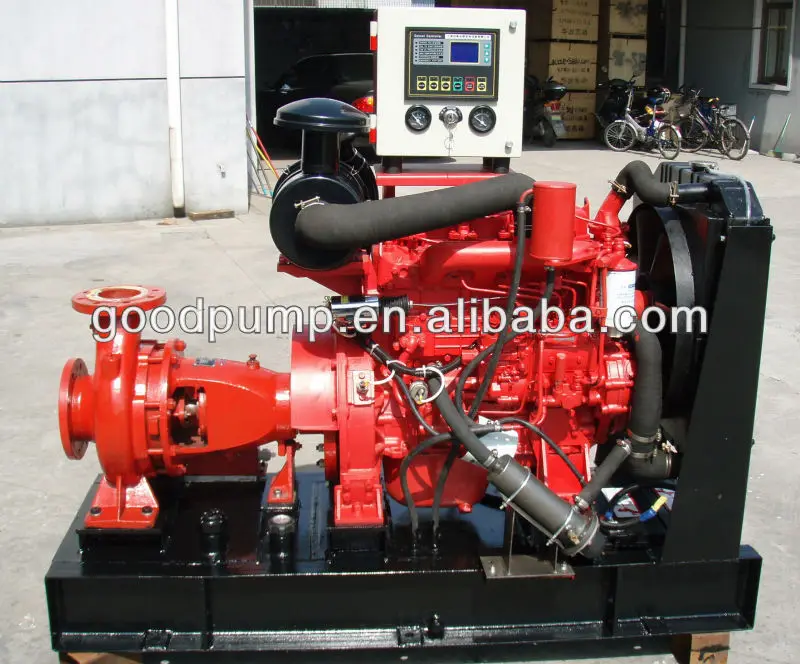

Agricultural excellent irrigation diesel water pump
Brief Intrduction:
Specification:
1:Inlet/Outlet: 6"(150mm)~32"(800mm)
2:Flow Rates: 126m3/h~8520m3/h
3.Head: 8m~140m
4.Horsepower: 50HP~1066HP
5.Material: Cast Iron,SS201,SS304,SS316,Copper
6.Diesel Driving: Water cooled or air cooled
7.Method of connection: pumps are available as basic units or may be flex-coupled,Clutch,V-belt driven or engine mounted.
8.Skid Mounted on: 2 or 4 wheels Trailer/Trailor,Cart
9.Drive Variation: Cummins,Deutz,Ricardo,Perkins or Chinese Diesel,Electric Motor
Package: CE, SGS,ISO9001:2008
Specification Performance Data Table | |||||
Model | Capacity (m3/h) | Head (m) | Speed (r/min) | Shaft Power (kw) | Motor Power (kw) |
26-20-100 | 4.5 | 15 | 2825 | 0.45 | 0.75 |
50-32-150 | 8 | 22 | 2900 | 1 | 1.5 |
50-32-160 | 10 | 25 | 2900 | 1.5 | 2.2 |
65-40-160 | 12.5 | 25 | 2900 | 2.5 | 3 |
50-50-170 | 12.5 | 32 | 2900 | 3.2 | 4 |
65-50-180 | 32 | 32 | 2900 | 4.5 | 5.5 |
65-50-170 | 40 | 25 | 2900 | 4.5 | 5.5 |
80-50-180 | 40 | 40 | 2900 | 6.7 | 7.5 |
80-50-170 | 60 | 20 | 2900 | 6.7 | 7.5 |
100-65-190 | 60 | 38 | 2930 | 9.2 | 11 |
100-65-200 | 80 | 40 | 2930 | 12.5 | 15 |
100-65-220 | 58 | 50 | 2930 | 12.5 | 15 |
100-65-230 | 100 | 55 | 2940 | 19.5 | 22 |
125-100-190 | 155 | 30 | 2940 | 20 | 22 |
100-65-240 | 100 | 70 | 2950 | 25.5 | 30 |
100-65-257 | 100 | 80 | 2950 | 32.5 | 37 |
125-100-220 | 160 | 45 | 2950 | 25.5 | 37 |
125-80-250 | 160 | 60 | 2970 | 35.5 | 45 |
125-100-257 | 200 | 60 | 2970 | 42.8 | 55 |
125-100-260 | 260 | 70 | 2970 | 64.3 | 75 |
125-100-270 | 300 | 70 | 2970 | 75.3 | 90 |
125-100-270 | 220 | 85 | 2970 | 68 | 90 |
150-125270 | 340 | 76 | 2970 | 89.5 | 110 |
150-125-270 | 400 | 78 | 2970 | 106 | 132 |
Remark:The capacity above the sheet based on the medium is clean water
