Brand Name: YONJOU
Model Number: S
Place of Origin: Zhejiang, China (Mainland)
Diesel Engine Fire Pump nfpa 20
>>>Description for fire pump nfpa 20 :
The casing is axially split, which permits removal of the complete rotor without moving either piping or motor. Pumps generating high heads have double volutes to reduce radial forces.
Replaceable wear rings protect the casing at the impeller running clearances. Flange drilled to ISO, DIN, BS or ANSI.
The close double suction impeller gives practically zero axial forces. Each impeller is statically and dynamically balanced according to NFPA 20 STANDARD .
Vertical or horizontal, soft packing or mechanical seal, grease or oil lubrication bearing on request. NFPA 20 standard pump is available
>>>Technical Data:
| Capacity: | 72 to3170 m3/h |
| Size: | 100~800mm |
| Head: | 10 to 125 m |
| Power: | 30 to 800 kw |
| Speed: | 1450 or 2900 r/min |
>>>Standard Scope of Supply

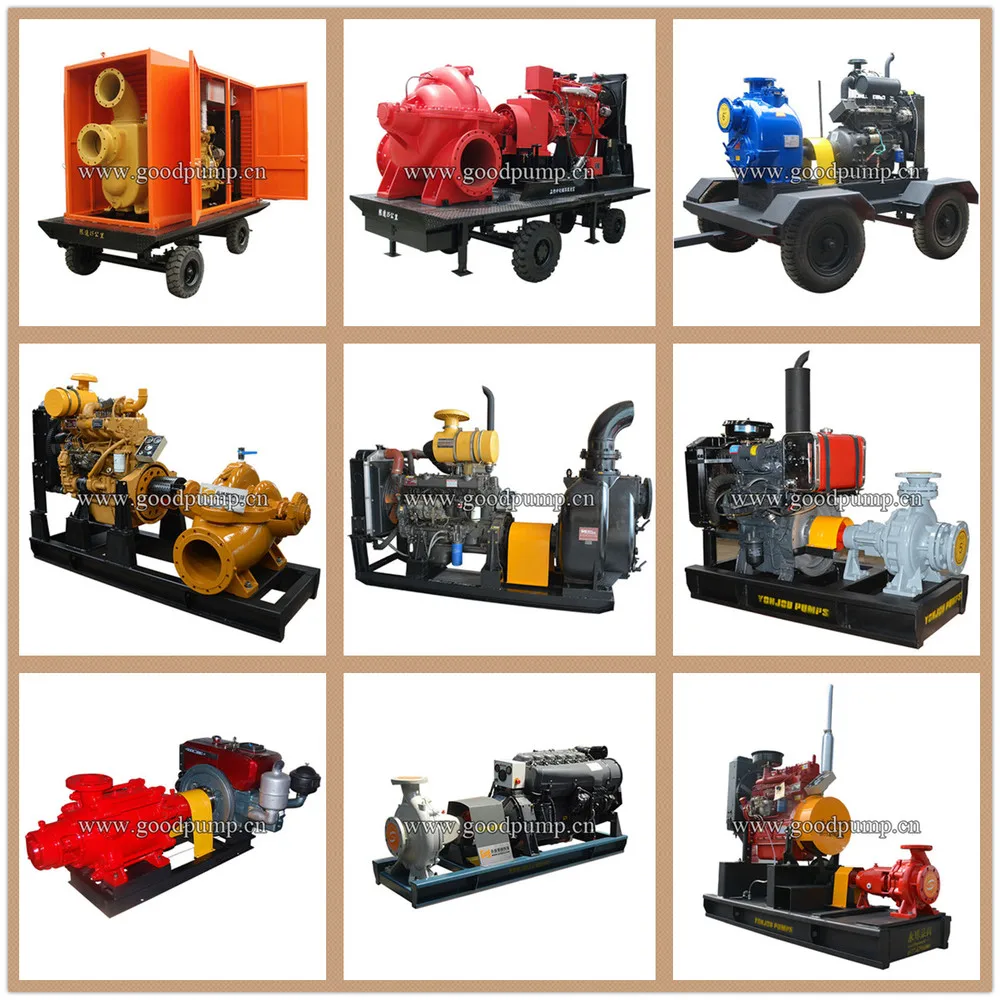

1) diesel pump unit: diesel engine, water pump, cooling fan, cooling water tank, steel structure base (including fuel tank 80-120L), battery, connecting wires, exhaust muffler, control panel.
2) standard design is the pump group, the fuel tank, control panel, battery composite type.
3) can be designed according to customer requirement pump group, the fuel tank, control panel, battery, outdoor rainproof cabinet composite outdoor type.
4) can be designed according to customer requirement trailer (four or two wheels) moveable type.
>>> Accessories & Spare Parts
(PVC Flexible Hose with Steel Wire, Flange Connection)
>>>Our package: strong enough during delivery by air or by sea for long time
Small pump: Styrofoam with Carton Box
(If has several cartons, we will use plastic film and steel bar to package them together )
Big pump: Plywood Case or Steel Bar with Plastic Film
(One set per Case or Several sets per Case, according to the pump size and quantity, or customer's request)
>>>Production Flow:
>>>Testing: Eachmachine must be strictlytestedbefore its delivery.
>>>Zhejiang Yonjou Technology Co., Ltd located in Yongjia country, Wenzhou city, Zhejiang province, borders Lishui on the west, Taizhou on the north, and Fujian to the south, founded in 1995, our company is specialized in manufacturing high quality oil pump, diaphragm pump, Diesel engine pump set, split& single stage& multistage centrifugal pump etc.
>>>Office&Workshop
>>>Customers' Visiting:
>>>Trade Show:
>>>CE Certificate and ISO9001:2008 Certificate:
>>>FAQ--- Frequently Asked Question
1. How to get our quotation in time, pls answer following questions:
1)What liquid do you transfer? Oil, Water, Food or Corrosive Chemical liquid, with solid particle or not, and so on~
2) What's the flow or capcity (m3/h, L/m)?
3) What's the discharge head (m, feet, Mpa, bar )
If you do not have any request, we will do as our normal standard.
4) Contact us to get the quotation
2.OEM: Ok
3. MOQ: 1set
4. Package: Standar export Plywood Case or Styrofoam with Carton
5. Shipping ways: By sea, By air, By express
6. Lead time: 3-15days
7. Term of payment: 100% T/T, Aliexpress, L/C, Westunion
8. Warranty Period: One year, except spare parts
9. Why choose us: 26years experiences manufacturer
Good quality with competitive pirce
ISO2009:8001, CE certificate
Professional after-sales service
10. Warranty Period:
1) Please operate according to pump productdescription. If you have any questions of pumps, kindly contact us, we willofferyouthe mostprofessional and the best service.
2) We guarantee our products for a period of ONE YEAR from date of dispatch from our factory (The warranty doens't apply to wearing parts).
