Yonjou Cast Iron Casing Gear Oil Pump

FOB Price:

US 68-1800 / Piece

Min.Order Quantity:

1 Piece/Pieces

Supply Ability:

600 Piece/Pieces per Month

Port:

Shanghai/Ningbo/Shenzhen

Place of Origin:

Zhejiang, China (Mainland)

Payment Terms:

L/C,T/T,Western Union

Brand:

YONJOU

Products Model:

BP, GC

Products Details
Company Profile

Quick Details

Brand Name: YONJOU

Model Number: BP, GC

Place of Origin: Zhejiang, China (Mainland)

Packaging & Delivery

Packaging Details: Standard plywood case or carton for Yonjou Cast Iron Casing Gear Oil Pump
Delivery Detail: 10 days from receiving payment (according to order quantity)

Specifications

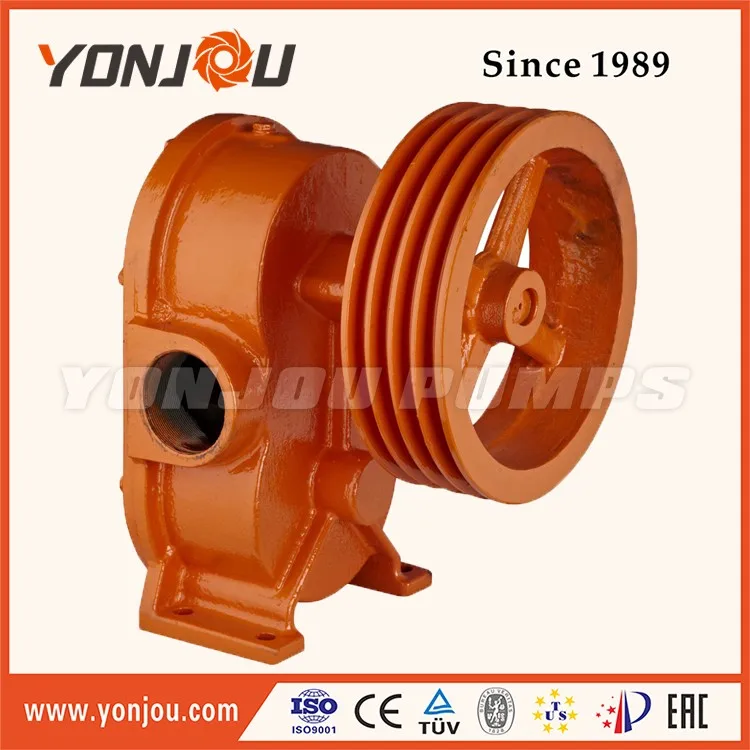

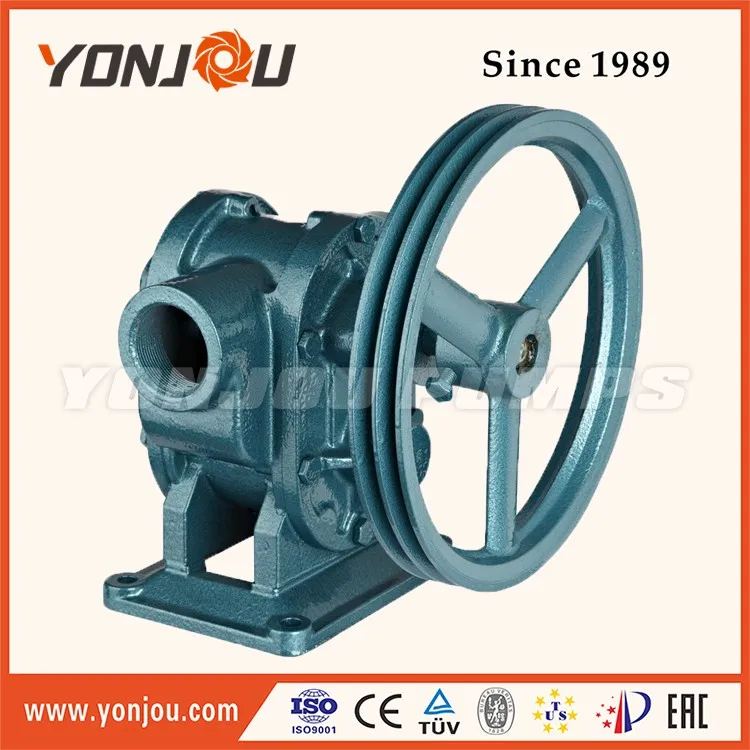

Yonjou Cast Iron Casing Gear Oil Pump

Product Description

GC Design:

Summarize:

1. Yonjou Cast Iron Casing Gear Oil Pump is simple, compact and light.

2. The belt pulley can protect pump from overloading in working and is suitable for the delivery of wide center-to-center distance.

3. The belt pulley driven gear pump could be used to transfer oil or equivalent lubricating fluid without solids and fiber.The stainless steel pump also could transfer chemical liquid, and the one with bronze gear is designed for low flash point oil, such as gasoline specifications.

4. By adopting belt pulley drive, the speed of pump could be adjusted low. It could be used for high viscosity medium. And the stainless steel pump also could transfer chemical liquid.

5. To the differect clients' demand, we design it into two material: GC type and BP type.

C type is made of cast iron, using to transit water, kerosene, white oil, heacy oil and machine oil etc.

B type is adopt barss gear, using to pump sea water, brine, weak acid and other chemistry liquid

Product details:

Working Principle:	Double Gears
Main applications:	Oil
Driver:	Electric motor, diesel engine.
Power Specs:	220/380/415V 3phase; 110/220/240V 1phase;50hz/60hz,etc
Max. permissible fluid temperature:	70°C(158°F)
Type of connection:	Thread
Installation position:	Horizontal
Casing parts material:	Cast iron, Stainless Steel
Shaft seal type:	Shaft seal ring
Free passage:	00 mm
Maximum viscosity:	1.5X103C.S.T
Maximum drive rating:	5.5 kW(7.5HP)
Maximum caliber:	80mm(3inch)
Maximum discharge-side pressure:	0.3MPa(3bar)
Maximum suction:	3m(9.8ft)
Flow rate range:	16-320L/min(4.2-84.5US.GPM)

Performance Data:

Model	Type	Inlet/Outlet	Speed (r/min)	Capacity (L/min)	Pressure (MPa)	NPSH (m)	Power (KW)	Weight (kg)
BPC-13 BPB-13	BPC: BPB:	13mm (1/2")	400	21	0.3	3	0.25	4.3
BPC-20 BPB-20		20mm (3/4")	400	37	0.3	3	0.55	7.1
BPC-25 BPB-25		25mm (1")	400	55	0.3	3	0.75	11.0
BPC-35 BPB-35		35mm	400	121	0.3	3	1.5	21.0
BPC-50 BPB-50		50mm	400	242	0.3	3	3	42.0
BPC-80 BPB-80		80mm	400	455	0.3	3	5.5	77.2

Model	GC-13	GC-20	GC-25	GC-40	GC-50	GC-80
Inlet/Outlet (inch)	1/2	3/4	1	1 1/2	2	3
Capacity (L/m)	21	37	55	121	242	455
Head (m)	10	10	15	15	15	15
Speed (rpm)	400rpm
Power (kw)	0.2	0.4	0.75	1.5	3	5.5
Weight (kg)	4	6	11	35	45	82
Material	Cast iron

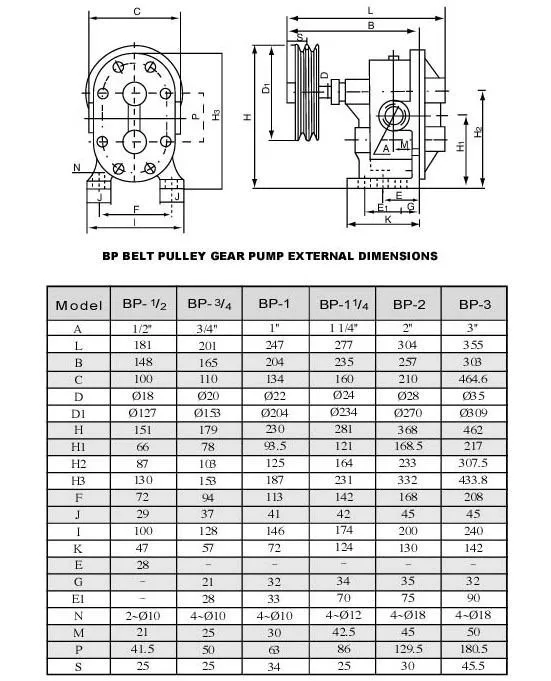

Dimension:

TESTING

Zhejiang yonjou Technology Co., Ltd. is a research and development, production, sales in the valve products supporting the production of complete sets of equipment, sales, investment and financial institutions modernized enterprise diversification.
Permanent ball brand was founded in 1989, is a region of southern Zhejiang earliest established brand valve, Wenzhou well-known trademark, famous trademark of Yongjia county. 2008 new start new orange smile trademark, pursuing new vitality to smile, to service for the foundation, and strive to be the permanent ball into the valve industry in national brand globalization.
Adhering to the "bigger and stronger" spirit, the company has passed the ISO9001 international quality system, the detection of the EU CE certification, SGS, BV, TUV certification, UTS product field, and has a number of national patents, products by PICC underwriting quality, the company continuously over the years has been rated as "ICBC AAA credit enterprise", Zhejiang province "Shou contract re credit units", "Zhejiang Province integrity of private enterprises", "science and technology enterprises in Zhejiang province", "Zhejiang Province valve industry quality brand", "Wenzhou famous trademark", "Yongjia county famous trademark", "Yongjia star enterprise", "Yongjia science and technology project implementation unit" etc.. Products are exported to Germany, American permanent ball, Britain, Russia, South Korea, Japan, Australia, Brazil, Indonesia, Singapore, Romania, the United Arab Emirates, Iran, Egypt and other 180 countries and regions. To provide products and services for CNPC, SINOPEC, ABB, SIEMENS, ARITA, GRUNDFOS, KSB, HANIL, JC, KENT, WVODESIGNS, MAIN, ITT and other Multi-National Corporation, and many times the ball directly to the permanent brand to enter the bidding project and the government procurement list.
