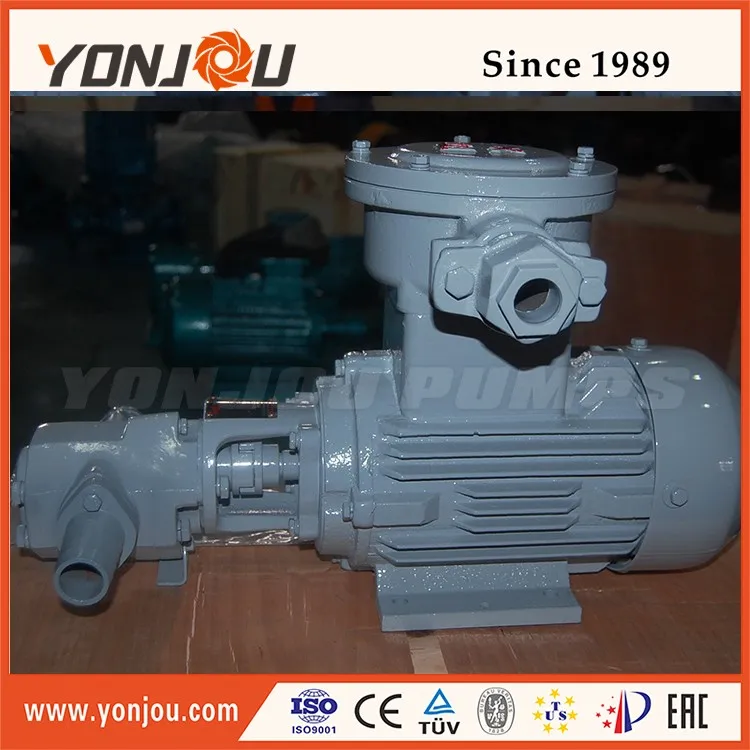

WCB small portable gear pump oil gear pump impeller price

WCB small portable gear pump oil gear pump impeller price

FOB Price:

US 48-1000 / Piece

Min.Order Quantity:

1 Piece/Pieces

Supply Ability:

307 Piece/Pieces per Month

Port:

Ningbo/Shanghai

Place of Origin:

Zhejiang, China (Mainland)

Payment Terms:

T/T,Western Union

Brand:

YONJOU

Products Model:

WCB

Products Details
Company Profile

Quick Details

Brand Name: YONJOU

Model Number: WCB

Place of Origin: Zhejiang, China (Mainland)

Packaging & Delivery

Packaging Details: plywood case or carton for WCB small portable gear pump oil gear pump impeller price
Delivery Detail: 8 days from receiving payment (according to order quantity)

Specifications

WCB small portable gear pump oil gear pump impeller price

Product Description

Summarzie:

1. Heavy fuel oil transfer pump can carry the pure and neutral oil (e.g.: engine oil,kerosene, diesel fuel, etc andvarious plant oils) with the viscosity of 1-8°E.

2. It can improve the working efficiency, reduce the labor strength, therefore, it is suitable for the oil transportation in commerce, industry, agriculture and so on.

3. It is low-pressure micro-portable energy-saving pump, normally used in the sale shops without power to supply to oil drums, oil refineries, power station, power plants, substations and oil tanks tansfer, light oil lubrication system of light oil delivery.

Product details:

Working Principle:	Double Gears
Main applications:	Oil (Forbidden Gasoline), Lubricating fluid
Driver:	Electric motor
Power Specs:	220V/380V/415V 3phase; 110V/220/240 1phase; 50hz/60hz,etc
Max. permissible fluid temperature:	80°C(Anti-oil rubber), 100°C(PTFE)
Type of connection:	Thread, Quick couple.
Installation position:	Horizontal
Casing parts material:	Cast iron, Stainless Steel
Gear mateiral:	Cast iron, Stainless Steel, Bronze
Shaft seal type:	Anti-oil rubber or PTFE
Maximum viscosity:	300C.S.T
Maximum drive rating:	1.1kW(1.5HP)
Maximum caliber:	25mm(1inch)
Maximum discharge-side pressure:	0.3MPa(3bar)
Maximum suction	5m(16.4ft)
Flow rate range:	30-100L/min(7.9-26.4US.GPM)

Performance Data:

Model	Capacity (L/min)	Head (m)	Power (W)	Caliber (mm)	Weight (kg)	Voltage Phase	Material
WCB30	30	30	370	20	17	Single phsae /3 phase	Cast Iron
WCB50	50	30	550	20	19
WCB75	75	30	750	25	21
WCB30P25	30	30	370	20	17		Stainless Steel
WCB50P	50	30	550	20	19
WCB75P	75	30	750	25	21
