Tractor Fuel Cut Off Cable Spare Parts

[Micro Adjust Performance Push-Pull Control Head]

Description:                               Applications:                                   Features:

 Micro Adjust                               • General aviation aircraft                 • Glass filled nylon control head
Performance Push-Pull             • Throttle control                                  • Travel: 3.00" maximum
Control Head                              • Mixture control                                  • Bend radius:3.00" minimum&                                                             • Prop/pitch control                                7.00"   minimum

                                                                                                                   • Operating temp:

                                                                                                                      -65°F — 165°F(input)

                                                                                                                      230°F

Material:                                            End Fittings:

• Stainless Steel or                           • Full Range

   Plated Carbon Steel
• Plastic Coated
  Carbon Steel Conduit
   and Innermember
• Plastic Seal
• Plastic Knob

[Control Head Performance]

Cablecraft Motion Controls designs and manufactures a wide range of aircraft cables. Our mixture, prop/pitch, and throttle micro adjust controls are compliant with FAA requirements. Depressing
the center button allows pushing or pulling the knob to make course travel adjustments. Rotating the knob counter-clockwise retracts the output in the finite mode, and clockwise extends.Four and one-half turns results in 1 of linear travel. Normal vibration does not affect the micro adjust setting. An optional friction lock accessory is available for applications influenced by excessive vibration. A friction lock (only) control head is also available.Various output configurations are available to suit
specific applications. The ordering code and technical descriptions show these choices.

[Micro Adjust]

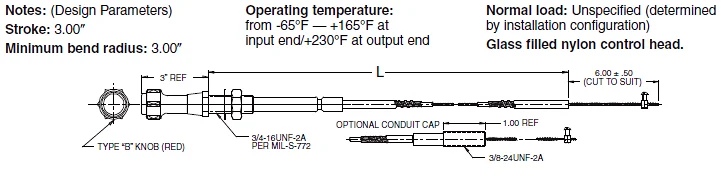

 Standard Output - Throttle 565-550

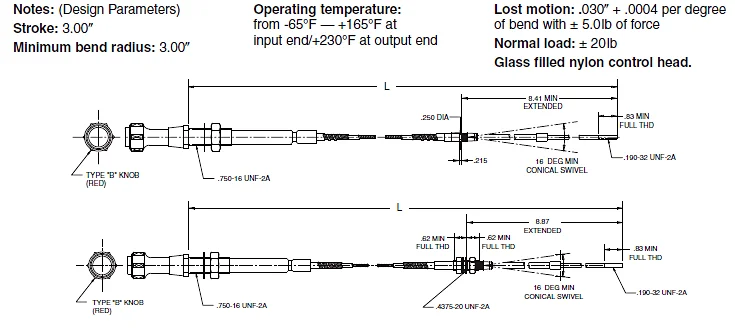

 Wire Rope Output - Throttle 565-557

 Solid Wire Output - Throttle 565-558

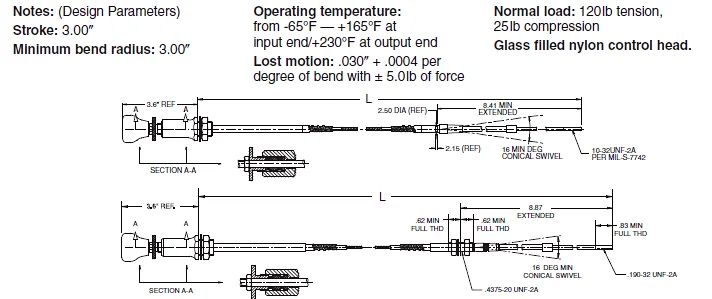

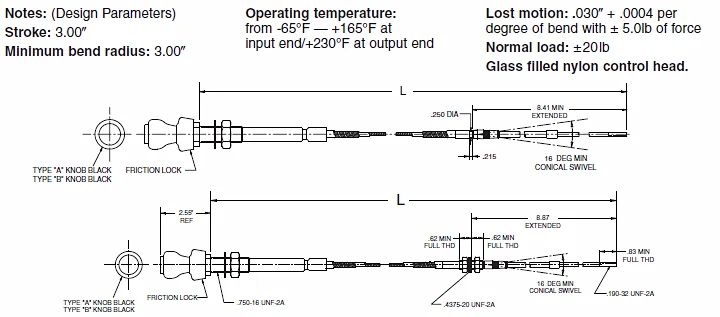

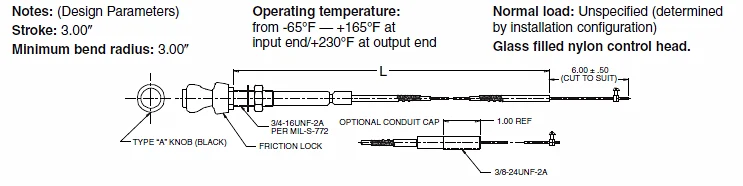

Friction Lock Control - Throttle 565-555

 All line art dimensions are represented in inches

[Output End Configurations]

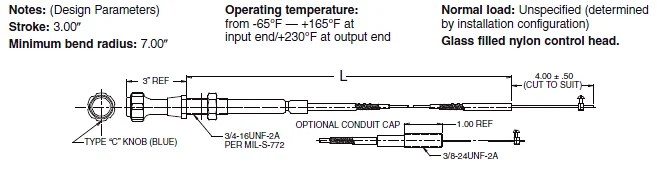

Standard Output - Mixture 565-550

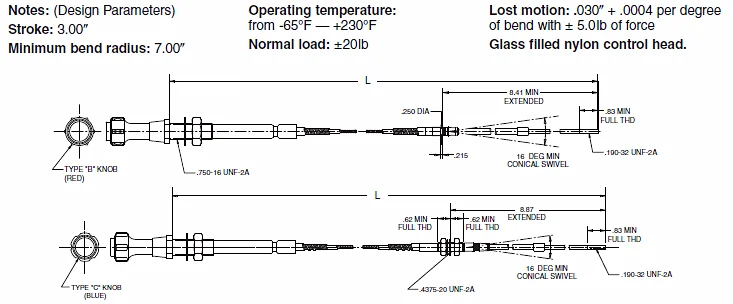

Wire Rope Output - Mixture 565-557

Solid Wire Output - Mixture 565-558

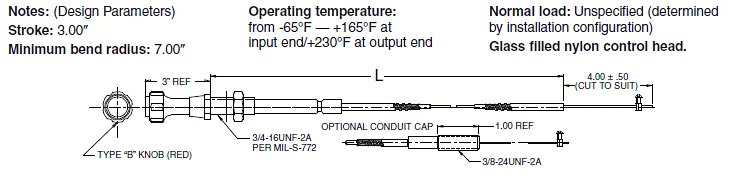

Standard Output - Prop/Pitch 565-550

 All line art dimensions are represented in inches

[Micro Adjust Control Heads]

Wire Rope Output - Prop/Pitch 565-557

Solid Wire Output - Prop/Pitch 565-558

     All line art dimensions are represented in inches
