Brand Name: YONJOU
Model Number: DBY
Place of Origin: Zhejiang, China (Mainland)

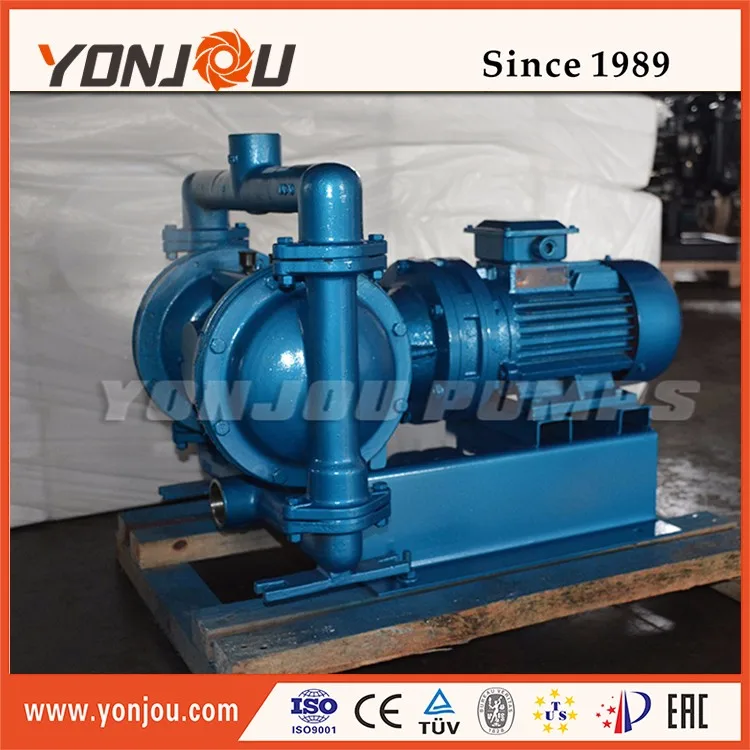

DBY Series Electric Diaphragm Pump for Ceramics and metallurgy
Summarize:
1. DBY large flow rate double diaphragm pump electric operated diaphragm pump as a new-type pump is long service life and safety.
2. Pump needn’t lead water with the merit of self-priming ability.
3. Pump applies to the low tension situation that the discharge pressure is below 3kgf/cm2.
4. Widely used for liquid which is corrosive, with solid, with high viscosity, volatile, inflammable, explosive and virulent; or even for glaze slip, confiture, glue water, tank bottom oil, etc.
Product details:
Working Principle: | Double Diaphragms |
Main applications: | Oil, Water, Chemical, Foodstuff,etc. |
Driver: | Electric |
Power Specs: | 220V/380/415V 3phase; 50hz/60hz etc. |
Max.permissible fluid temperature: | 120°C |
Type of connection: | Flange, Thread, Quick Coupled. |
Installation position: | Horizontal or Vertical |
Pump body material: | C.I, PP, SS, Al, PP, PTFE lined. |
Diaphragm, ball, material: |
F46, PTFE, NBR, EPDM, etc |
Max. grain diameter: | 1mm-8mm |
Maximum viscosity: | 5×104C.S.T |
Maximum drive rating: | 5.5KW(7.5HP) |
Maximum dischrage-side pressure: | 3kgf/cm2 |
Maximum caliber: | 100mm(4inch) |
Maximum dischrage head: | 30m(98.4ft) |
Flow rate range: | 0.5-20m3/h(2.2-88US.GPM) |
Performance Data:
Model |
Capacity (m3/h) |
Head (m) |
Suction (m) |
Max discharge pressure (kgf/cm2) |
Max grain diameter (mm) |
Power (KW) |
Speed (r/min) |
Motor type |
DBY-10 |
0.5 |
30 |
3 |
3 |
1 |
0.55 |
1450 |
220V-440V Single phase or 3 phase 50Hz/60Hz Gearbox reducer or Frequency control |
DBY-15 |
0.75 |
30 |
3 |
3 |
1 |
0.55 |
1450 |
|
DBY-25 |
3.5 |
30 |
4 |
3 |
2.5 |
1.5 |
1450 |
|
DBY-40 |
4.5 |
30 |
4 |
3 |
2.5 |
2.2 |
1450 |
|
DBY-50 |
6.5 |
30 |
4.5 |
3 |
3 |
4 |
1450 |
|
DBY-65 |
8 |
30 |
4.5 |
3 |
4.5 |
4 |
1450 |
|
DBY-80 |
16 |
30 |
5 |
3 |
8 |
5.5 |
1450 |
|
DBY-100 |
20 |
30 |
5 |
3 |
8 |
5.5 |
1450 |
