Home > Products > Water System > Water Pump

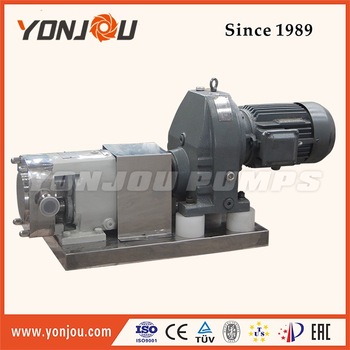

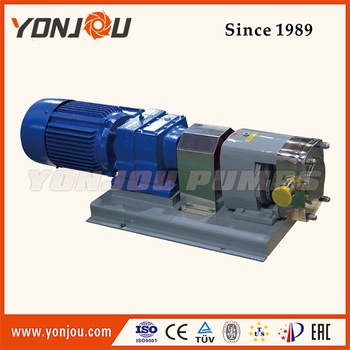

Rotor rotary pump fruit jerry transfer pump vegetable fluid pump Rotor rotary pump fruit jerry transfer pump vegetable fluid pump Rotor rotary pump fruit jerry transfer pump vegetable fluid pump

Rotor rotary pump fruit jerry transfer pump vegetable fluid pump

FOB Price:
US 300-999 / Unit
Min.Order Quantity:
1 Unit/Units
Supply Ability:
500 Unit/Units per Month
Port:
Ningbo/Shanghai/Qingdao/HK/etc
Place of Origin:
Zhejiang, China (Mainland), Zhejiang, China (Mainland)
Payment Terms:
L/C,T/T,Western Union
Brand:
YONJOU, Rotor rotary pump/ fruit jerry transfer pump/ vegetable fluid pump
Products Model:
LQ3A, LQ3A
Share:
  • Products Details
  • Company Profile

Quick Details

  • Brand Name: YONJOU, Rotor rotary pump/ fruit jerry transfer pump/ vegetable fluid pump

    Model Number: LQ3A, LQ3A

    Place of Origin: Zhejiang, China (Mainland), Zhejiang, China (Mainland)

Packaging & Delivery

  • Packaging Details: Standard Export Plywood Case for each Rotor rotary pump/ fruit jerry transfer pump/ vegetable fluid pump
  • Delivery Detail: 7 days after payment received

Specifications

Product Description



Summarize:

  1. Lobe pumps are used in a variety of industries including, pulp and paper, chemical, food, beverage,               pharmaceutical, and biotechnology.
  2. They are popular in these diverse industries because they offer superb sanitary qualities, high efficiency, reliability, corrosion resistance, and good clean-in-place and sterilize-in-place (CIP/SIP) characteristics.
  3. These pumps offer a variety of lobe options including butterfly lobe, double lobe, triple lobe.
  4. Rotary lobe pumps are non-contacting and have large pumping chambers, allowing them to handle solids such as cherries or olives without damage.  They are also used to handle slurries, pastes, and a wide variety of other liquids.





Product details:

Working Principle: Double rotors
Main Applications:        Food applications, Polymers, Paper coatings, Soaps and surfactants, Paints and dyes Rubber and adhesives, Pharmaceuticals
Driver: Variable Speed Motor, Geared Motor, Variable Frequency Motor
Power Specs: 220V, 240V, 380V, 400V, 415V, 440V, 460V,  50hz/60hz
Max.permissible fluid temperature: 150°C (302°F) / 250°C (482°F)-water cool type
Type of connection: Quick couple, Thread, Flange
Installation position: Horizontal
Casing/Inner parts material: Stainless Steel
Shaft seal type:   Mechanical seal
Maximum viscosity: 1x106 C.S.T
Maximum drive rating:  22kW(30HP)
Maximum caliber:   125mm(5inch)
Maximum discharge-side pressure: 5bar
Suction pressure: 0.08Mpa(0.8bar)









Performance data:

Type

Size

(mm)

Discharge

Capacity

per 100r (L)

Speed Range

 (rpm)

Flow

(L/H)

Motor Power

 (kW)
LQ3A-6 25 6 200-500 650-1600 0.75
LQ3A-8 32 8 200-500 850-2160 1.5
LQ3A-12 38 12 200-500 1300-3200 2.2
LQ3A-20 38 20 200-500 2100-5400 3
LQ3A-30 42 30 200-400 3200-6400 4
LQ3A-36 42 36 200-400 3800-7600 5.5
LQ3A-52 50 52 200-400 5600-11000 5.5
LQ3A-66 62 66 200-400 7100-14000 7.5
LQ3A-78 75 78 200-400 9000-18000 7.5
LQ3A-100 75 100 200-400 11000-22000 11
LQ3A-135 100 135 200-400 15000-30000 15
LQ3A-160 100 160 200-400 17000-34000 18.5
LQ3A-200 125 200 200-400 21600-43000 22
