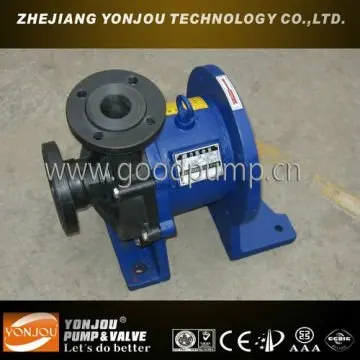

Yonjou Anti Corrosive Pump Yonjou Anti Corrosive Pump Yonjou Anti Corrosive Pump

Yonjou Anti Corrosive Pump

FOB Price:
US 300-3000 / Piece
Min.Order Quantity:
3 Piece/Pieces
Supply Ability:
1000 Piece/Pieces per Month
Port:
Ningbo, Shanghai
Place of Origin:
Zhejiang, China (Mainland)
Payment Terms:
T/T
Brand:
YONJOU
Products Model:
CQ
Share:
  • Products Details
  • Company Profile

Quick Details

  • Brand Name: YONJOU

    Model Number: CQ

    Place of Origin: Zhejiang, China (Mainland)

Packaging & Delivery

  • Packaging Details: Seaworthy plywood case
  • Delivery Detail: --

Specifications



                                       Yonjou Anti Corrosive Pump







Pump Description



>>> Summarize

  • Magnetic pumps adopt internal and external magnetic steel to delivery.
  • With a separate set in intermediate magnetic enclosed liquid in the separate kit, use static seal  instead of dynamic seal, through solves leakage or other problems occured in mechanical seal.
  • Pump material: corrosion-resistant stainless steel, corundum ceramic, PTFE graphite etc..

CQ Magnetic Pump:         Made of LCP

CQP Magnetic Pump:       Made of ANSI304/ANSI316

CQB-F Magnetic Pump:    Made of Cast Iron but PVDF/PDFE Lined

CQCB Magnetic Pump:     Made of ANSI304/ANSI316 (Gear pump)







>>> Main Application

  • Chemical Industrial, Pharmaceuticals, Oil, Electroplate, Food and so on.
  • A good choice for strong acid and alkali, oil, heavy liquid, poison, volatile liquid.



>>> Specifications

  • Capacity: 20 to 3350 l/min
  • Head: 5 to 50 m
  • Power: 0.18 to 30 kw
  • Speed: 2800 r/min











>>>Specification performance data table



Model Inlet Dia. (mm) Outlet Dia. (mm) Head (m) Capacity (l/min) Power (kW) Speed (r/min) Voltage (V)
8CQ-2F 8 6 2 15 0.025 2800 220
10CQ-3F 10 10 3 19 0.025 2800 220
14CQ-5F 14 10 5 20 0.038 2800 220
14CQ-5F 14 10 5 20 0.12 2800 220/380
16CQ-8F 16 12 8 30 0.12 2800 220/380
20CQ-12F 20 14 12 50 0.37 2800 220/380
25CQ-12F 25 20 12 80 0.37 2800 220/380
25CQ-15F 25 20 15 110 1.1 2800 220/380
32CQ-15F 32 25 15 110 1.1 2800 220/380
32CQ-25F 32 25 25 90 1.1 2800 220/380
40CQ-20F 40 32 20 180 1.5/2.2 2800 380
50CQ-25F 50 40 25 240 4 2800 380
50CQ-32F 50 40 32 220 4 2800 380
65CQ-32F 65 50 32 450 5.5 2800 380
