Brand Name: YONJOU
Model Number: IHF
Place of Origin: Zhejiang, China (Mainland)
High Quality Dosing Pump, Chlorine Dosing Pump, Chemical Dosing Pump

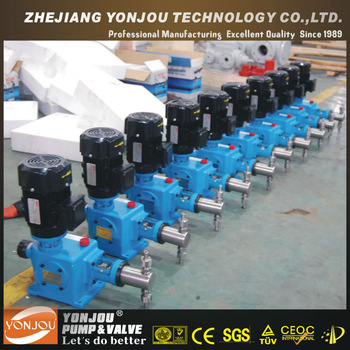

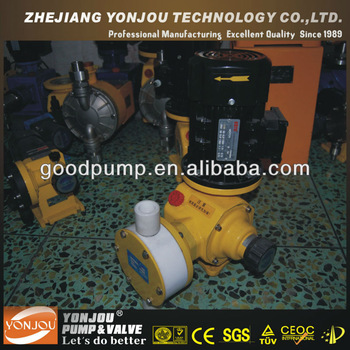

Chemical Diaphragm Dosing Pumps with PTFE Membrane
Flow:0.1~150L/H
Pressure:0~80Mpa
Power:380V,0.55Kw,50Hz
API Standard
Technological Parameters:
Flow Rate: 0.5~ 12100 L/H.
Pressure: 0.1~95 Mpa.
Adjustment Mode: Manual, Electric, Pneumatic, Frequency Conversation.
Measuring Accuracy: ± 1%.
Motor Power: 380V / 40W (or 60W) / 50Hz (for your reference only)
Fluid Temperature: -45~450°C
Allowed Particle Size: ≤ 0.01 mm
Viscosity of Fluid: 0.3~5000 cst
Head of Pump: 1
Diaphragm: 1
Material:
Worm Wheel: Tin Bronze
Worm: 40Cr or 38CrMoAl
Diaphragm: PTFE
Pump Head: PVC, CS, SS, PTFE, etc
Inlet & Outlet Part: PVC, CS, SS, PTFE, etc
Bearing: NSK Japan, SKF Sweden
Oil Seal: NOK Japan
Advantage:
1. Simple structure and beautiful appearance.
2. Vertical installation of motor avoid the leakage of lubrication oil and prevent the environmental pollution.
3. Patented Integrated Sleeve Adjustable Eccentric Transmission Mechanism.
4. High drive efficiency.
5. Strong carrying capacity with accurate flow rate.
6. The flow rate is adjustable with capability of 0-100% free adjustment.
7. Stable and reliable operation with low noise.
8. Convenient maintenance and long life service.
Application:
Our products are widely applied to petroleum, natural gas, chemical, power industry, environmental water treatment, nuclear industry, pharmaceutical, foodstuff, etc. We occupy an important market position in petroleum, natural gas, polycrystalline silicon, fluorine chemical, our market occupancy reaches more than 90% in Chinese fluorine chemical industry. We also win a big market proportion of oversea countries.We sincerely hope much more cooperation opportunities between you and us.
5. Company information:
>>>Zhejiang Yonjou Technology Co., Ltd is manufcaturer with 105 emloyees.
It was established in 1995, located in Yongjia country, Wenzhou city, Zhejiang province, borders Lishui on the west, Taizhou on the north, and Fujian to the south.
Our company is specialized in manufacturing high quality oil pump, diaphragm pump, Diesel engine pump set, split& single stage& multistage centrifugal pump etc.
