Vacuum Mechanical Seal Pump in Food industry

Vacuum Mechanical Seal Pump in Food industry

FOB Price:

US 120-1200 / Piece

Min.Order Quantity:

1 Piece/Pieces

Supply Ability:

900 Piece/Pieces per Month

Port:

Shanghai/Ningbo/Shenzhen

Place of Origin:

Zhejiang, China (Mainland)

Payment Terms:

T/T,Western Union

Brand:

YONJOU

Products Model:

2SK,SK,2BE

Products Details
Company Profile

Quick Details

Brand Name: YONJOU

Model Number: 2SK,SK,2BE

Place of Origin: Zhejiang, China (Mainland)

Packaging & Delivery

Packaging Details: Standard plywood case for Vacuum Mechanical Seal Pump in Food industry
Delivery Detail: 8 days afte receiving payment

Specifications

Vacuum Mechanical Seal Pump in Food industry

Product Description

Summarize:

1.Vacuum Mechanical Seal Pump in Food industry is mainly used to pump air and other gas which is little corrosive, insoluble in water & with little solid.

2. The water input into the pump revolve with high speed to form pressure and closed water cavity to take away air from container in suction end.

3. Pump with double stage structure is higher vacuum degree, bigger pumping speed, compact structure, reliable operation, easy operating & maintenance.

4. China vacuum pump is widely used in food industry, textile industry, medicine industry, chemical industry, dipping, drying or other craft processes.

Product details:

Working Principle:	Water ring vacuum pump
Main applications:	Air & Gas
Driver:	Electric motor
Power Specs:	380/415V 3phase; 220/240V 1phase; 50hz/60hz
Max.permissible fluid temperature:	50°C(122°F)
Type of connection:	Flange
Installation position:	Horizontal
Casing parts material:	Cast iron, stainless steel
Shaft seal type:	Mechanical seal, Packing seal
Free passage:	0mm
Limited vacuum:	-0.097Mpa(-0.97bar)
Maximum drive rating:	55KW(75HP)
Maximum caliber:	125mm(5inch)
Flow rate range:	54-1800m3/h(237.6-7920US.GPM)

Performance Data:

Model	Pumping capacity(m3/min)		Ultimate vacuum pressure	Motor power	Speed	Water consumption	Diameter(mm)
Model	Max.	When the suction pressure is -0.093MPa (-700mmHg)	(MPa) (mmHg)	(KW)	(r/min)	(L/min)	Inlet	Outlet
2SK-1.5	1.5	0.9	-0.097(-725)	4	1440	10-15	40	40
2SK-3	3	2	-0.097(-725)	7.5	1440	15-20	40	40
2SK-6	6	4	-0.098(-735)	15	1460	25-35	50	50
2SK-12	12	8	-0.098(-735)	22	970	40-50	100	100
2SK-20	20	14	-0.098(-735)	45	740	60-80	125	125
2SK-30	30	20	-0.098(-735)	55	741	60-80	125	125

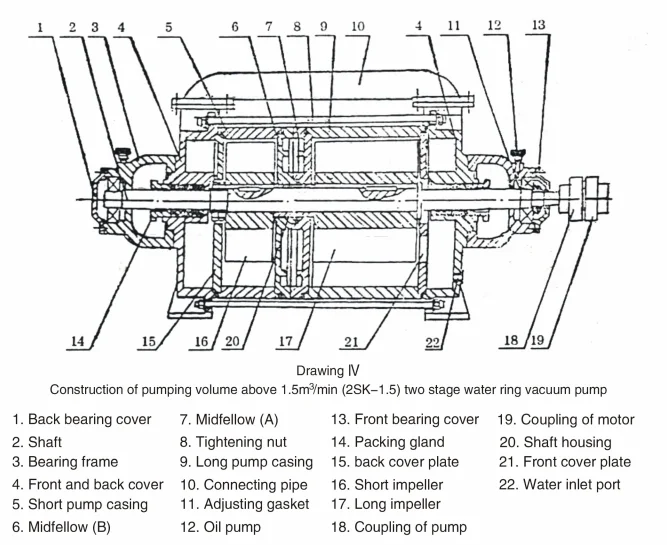

Structure Diagram:

TESTING

Packaging & Shipping

FAQ

Company Information

Zhejiang Yonjou Technology Co., Ltd is one of the leading manufacturers and exporters in the field of industry pumps with manufacturing facilities in mainland China. We are specialized in oil pump, diaphragm pump, diesel engine pump, centrifugal pump, screw pump, chemical pump etc.
