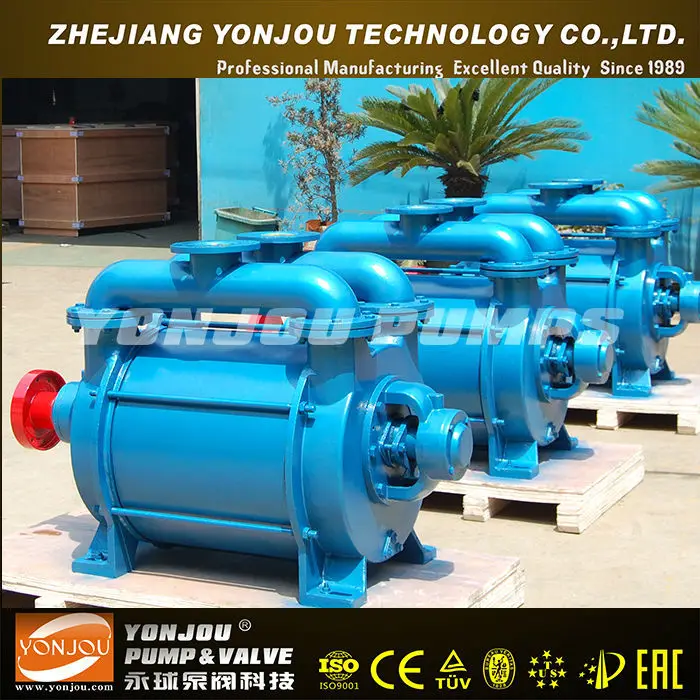

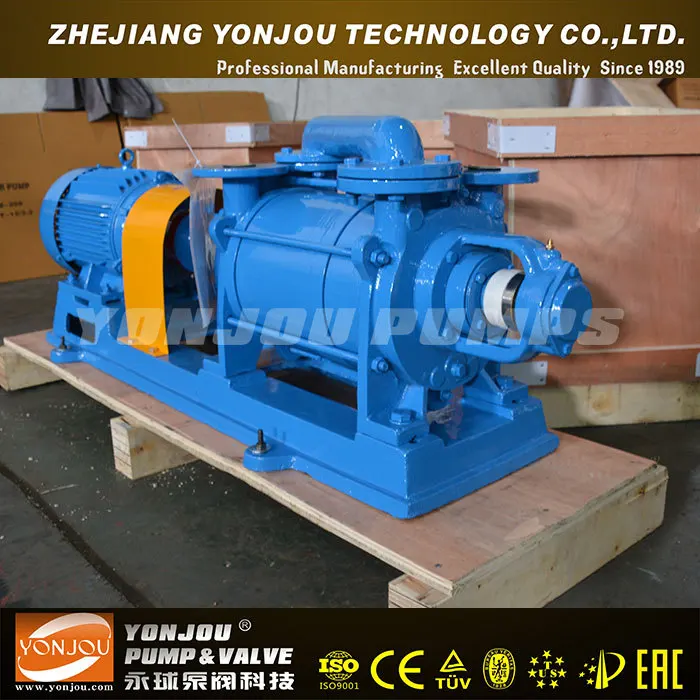

2sk series liquide ring vacuum pump

FOB Price:

US 1000-2000 / Set

Min.Order Quantity:

1 Set/Sets

Supply Ability:

500 Set/Sets per Month

Port:

NIngbo

Place of Origin:

Zhejiang, China (Mainland)

Payment Terms:

L/C,T/T,Western Union

Brand:

YonJou

Products Model:

2SK

Products Details
Company Profile

Quick Details

Brand Name: YonJou

Model Number: 2SK

Place of Origin: Zhejiang, China (Mainland)

Packaging & Delivery

Packaging Details: packing :standard export plywood case inlet diameter:70mm~300mm outlet diameter:70mm~250mm weight:88kg~500kg per each liquide ring vacuum pump
Delivery Detail: --

Specifications

Product Description

Summarize:

Water/ Liquid ring vacuum pump is used to pump air and other non-corrosive, do not dissolve in water, solid particles of free gas, airtight containers in order to obtain a higher vacuum.

Water ring vacuum pump is widely used in the manufacture of electronic devices, vacuum drying, vacuum evaporation, vacuum concentration, vacuum resurgence, vacuum impregnated into the filter, impregnated, coated with wax,

welding, smelting, chemical industry, light industry, petroleum, medical , pharmaceutical, printing and dyeing, semiconductor, food, atomic energy, textile and other research institutes, universities, industrial and mining enterprises. SK-type Direct water ring vacuum pump is not used for evacuating the high oxygen, toxic, explosive or chemical pump oil gas, nor as a compressor or transfer pump use.

Product details:

Working Principle:	Vacuum
Main applications:	Chemical industry, light industry, petroleum, medical , pharmaceutical, printing and dyeing, semiconductor, food, atomic energy, textile and other research institutes, universities, industrial and mining enterprises
Driver:	Electric motor
Type of connection:	Flange
Installation position:	Connect with electric motor
Casing parts material:	Cast Iron, Stainless Steel
Capacity range:	1.5-30 m3/min
Ultimate Vacuum:	-0.091 / -0.093

Performance Data:

Model	Capacity(m³/min)		Ultimate vacuum		Motor power(kw)		Speed (r/min)	Compressor (MPa)	Caliber(mm)
Model	Max	0.041MPa (-450mmHg)	mmHg	MPa	Pump	Compressor	Speed (r/min)	Compressor (MPa)	Inlet	Outlet
SK-1.5	1.5	1.35	-680	-0.091	4	4	1440	0~0.1	70	70
SK-3	3	2.8	-700	-0.093	5.5	7.5	1440	0~0.1	70	70
SK-6	6	5.4	-700	-0.093	11	15	1460	0~0.1	80	80
SK-12	12	10.8	-700	-0.093	18.5	30	970/980	0~0.1	80	80
SK-20	20	18	-700	-0.093	37	55	740	0~0.1	150	150
SK-30	30	27	-700	-0.093	55	75	740	0~0.1	150	150
SK-42	42	37.8	-700	-0.093	75	-	740	-	150	150
SK-60	60	54	-700	-0.093	90	-	590	-	250	250
SK-85	85	76.5	-700	-0.093	132	-	590	-	250	250
SK-120	120	108	-700	-0.093	185	-	490	-	300	250

Packaging & Shipping

Company Information

Zhejiang yonjou Technology Co., Ltd. is a research and development, production, sales in the valve products supporting the production of complete sets of equipment, sales, investment and financial institutions modernized enterprise diversification.
Permanent ball brand was founded in 1989, is a region of southern Zhejiang earliest established brand valve, Wenzhou well-known trademark, famous trademark of Yongjia county. 2008 new start new orange smile trademark, pursuing new vitality to smile, to service for the foundation, and strive to be the permanent ball into the valve industry in national brand globalization.
Adhering to the "bigger and stronger" spirit, the company has passed the ISO9001 international quality system, the detection of the EU CE certification, SGS, BV, TUV certification, UTS product field, and has a number of national patents, products by PICC underwriting quality, the company continuously over the years has been rated as "ICBC AAA credit enterprise", Zhejiang province "Shou contract re credit units", "Zhejiang Province integrity of private enterprises", "science and technology enterprises in Zhejiang province", "Zhejiang Province valve industry quality brand", "Wenzhou famous trademark", "Yongjia county famous trademark", "Yongjia star enterprise", "Yongjia science and technology project implementation unit" etc.. Products are exported to Germany, American permanent ball, Britain, Russia, South Korea, Japan, Australia, Brazil, Indonesia, Singapore, Romania, the United Arab Emirates, Iran, Egypt and other 180 countries and regions. To provide products and services for CNPC, SINOPEC, ABB, SIEMENS, ARITA, GRUNDFOS, KSB, HANIL, JC, KENT, WVODESIGNS, MAIN, ITT and other Multi-National Corporation, and many times the ball directly to the permanent brand to enter the bidding project and the government procurement list.
