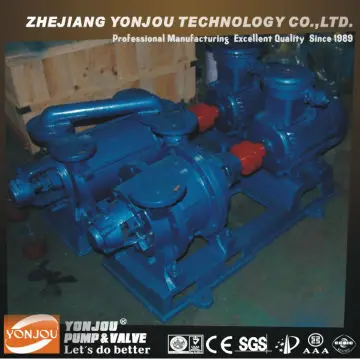

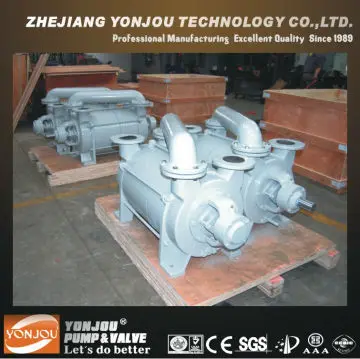

SK Single Stage Liquid Ring Vacuum Pump Water Ring Vacuum Pump

FOB Price:

US 120-2200 / Piece

Min.Order Quantity:

1 Piece/Pieces

Supply Ability:

900 Piece/Pieces per Month

Port:

Shanghai/Ningbo/Shenzhen

Place of Origin:

Zhejiang, China (Mainland)

Payment Terms:

L/C,T/T,Western Union

Brand:

YONJOU

Products Model:

Products Details
Company Profile

Quick Details

Brand Name: YONJOU

Model Number: SK

Place of Origin: Zhejiang, China (Mainland)

Packaging & Delivery

Packaging Details: Standard plywood case or carton (Water Ring Vacuum Pump)
Delivery Detail: 5 days from receiving payment (according to your order quantity)

Specifications

Water Ring Vacuum Pump

1. Usage:
1) Application is air or any other gas which is non-corrosive, non-soluble in water and without solids. Air or gas contains a small amount of liquid is allowed.

2) Water ring vacuum pumps and compressors are widely used in machinery, petrochemical, pharmaceutical, food, sugar industry and paper sector.

2. Characters:
As in the work, the gas compression process is isothermal, so the compression and pumping explosive gas, less prone to risk.

Capacity range: 1.35~108m3/min

Limited vacuum range: -98~5pa

Caliber range: 10~300mm

Power-range: 0.37~185kW

Max medium temperature: 70°c

Material : Cast iron,Aluminium alloy,Stainless steel

Specification performance data table

Model	Capacity(m³/min)		Ultimate vacuum		Motor power(kw)		Speed (r/min)	Compressor (MPa)	Caliber(mm)
Model	Maximum	0.041MPa (-450mmHg)	mmHg	MPa	Pump	Compressor	Speed (r/min)	Compressor (MPa)	Inlet	Outlet
SK-1.5	1.5	1.35	-680	-0.091	4	4	1440	0~0.1	70	70
SK-3	3	2.8	-700	-0.093	5.5	7.5	1440	0~0.1	70	70
SK-6	6	5.4	-700	-0.093	11	15	1460	0~0.1	80	80
SK-12	12	10.8	-700	-0.093	18.5	30	970/980	0~0.1	80	80
SK-20	20	18	-700	-0.093	37	55	740	0~0.1	150	150
SK-30	30	27	-700	-0.093	55	75	740	0~0.1	150	150
SK-42	42	37.8	-700	-0.093	75	-	740	-	150	150
SK-60	60	54	-700	-0.093	90	-	590	-	250	250
SK-85	85	76.5	-700	-0.093	132	-	590	-	250	250
SK-120	120	108	-700	-0.093	185	-	490	-	300	250

type	Suction amount (m³/min)		Utmost pressure		Power (kW)	Rotary speed(r.p.m)	Supplied water amoun(L/min)	Caliber of the suction port and drain port
type	Max	when the suction pressure is 0.093Mpa, it is no less than	mmHg	MPa	Power (kW)	Rotary speed(r.p.m)	Supplied water amoun(L/min)	Caliber of the suction port and drain port
2SK1.5	1.5	0.9	-730	-0.097	4	1440	10-15	φ40
2SK-3	3	2	-735	-0.098	7.5	1440	15-20	φ40
2SK-6	6	4	-735	-0.098	15	1460	25-35	φ70
2SK12	12	8	-735	-0.098	22	970	40-50	φ100
2SK30	20	14	-735	-0.098	45	740	60-80	φ125
2SK30	30	20	-735	-0.098	55	740	70-90	φ125
