Brand Name: F&C
Model Number: F3C-05WSM01-N R2M
Place of Origin: Hunan, China (Mainland)
Know more information about the product,welcome to contact me at any time via Skype:Lulu_Lu1995 or cellphone:86-15173188970
Feature of F3C Series Round proximity sensor
1.Flexible cable,
2.360 degree view LED indicator,
3.Red protective sleeve,
4.imported electronic components
All these make F&C inductive proximity switch sensor have stable quality ,durable and friendly to use.that is the reason why more and more factory choose F&C brand

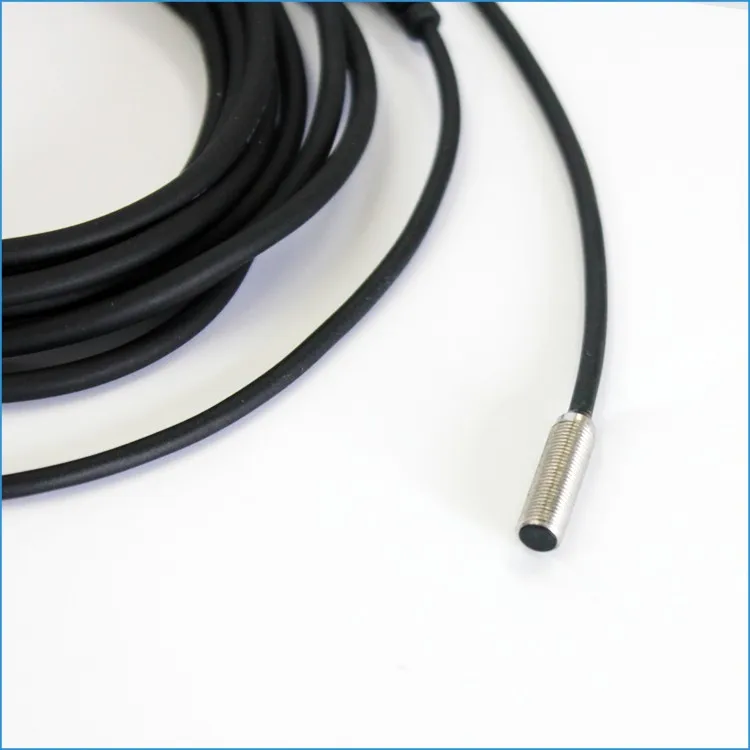

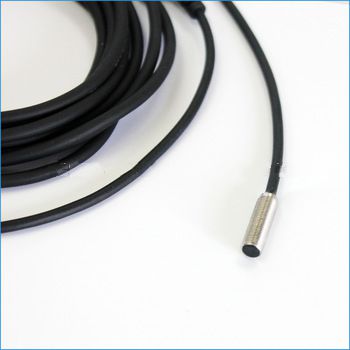

Product display
flush type inductive proximity sensor,position sensor,proximity sensor switch
Specification
| Model | F3C-05WSM01-N R2M F3C-05WSM01-N2 R2M F3C-05WSM01-P R2M F3C-05WSM01-P2 R2M |
||
| Detection distance | 1mm | ||
| Recommended distance | 0.8mm | ||
| Repeat positioning accuracy | 0.005mm | ||
| Response frequency | 800Hz | ||
| Hysteresis | ≤10% Detection distance | ||
| Operating voltage | 12-24VDC(customize 5V) | ||
| Current consumption | <10mA | ||
| Load current | 24V 100mA Max | ||
| Residual voltage | <1.0VDC | ||
| Protection circuit | Power anti-received protection and short circuit protection |
||
| Operating Temperature | -25℃-+70℃ | ||
| Waterproof degree | IP67 | ||
| Material | PBT and SUS304 | ||

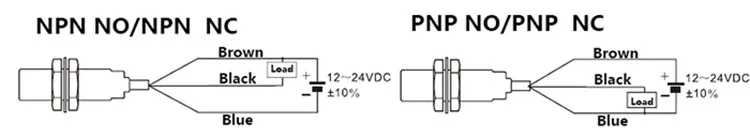

| Wiring method | φ3.0×2M/3-wires | ||
F&C Round proximity switch sensor coding rule
| F3C | F3C: standard sensing distance. F3L: double sensing distance |
| 05 | Outer diameter is M5 (φ3,φ3.8,φ8,M4,M5,6.5mm,M10,M14,M8,M12,M18, M30 available) |
| W | K: Standard main body E: short main body W:Ultra short main body |
| S | N: Non-shield S: shield |
| M | Thread |
| 01 | Sensing distance (0.8,01,1.2,02,04,08,12,18,30 available) |
| N | N: NPN NO N2:NPN NC P:PNP NO P2:PNP NC P:PNP NO P2:PNP NC |
| R | soft cable |
| 2M | 2M cable(cable length can be customized) |

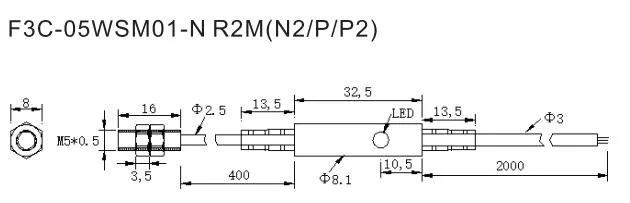

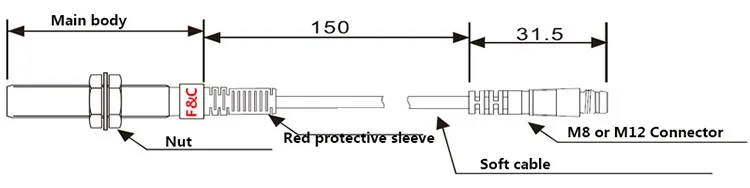

Dimension Drawing
Certifications
