Brand Name: F&C
Model Number: F3C-10WSM02-N R2M
Place of Origin: Hunan, China (Mainland)
small M10 2mm sensing 5V dc NPN NO amplifier in-cable proximity sensor
Specification
small M10 2mm sensing 5V dc NPN NO amplifier in-cable proximity sensor
Model | F3C-10WSM02-N R2M |
Head Dimension: | M10 |
Output Method | NPN NO |
Detection Distance | 3mm |
Hysteresis | Less than 10% of sensing distance |
Standard Sensing Object | 10*10*1(Iron) |
Operating Voltage | 5 VDC |
Protection Degree | IP67 |
Operating Temperature | -25℃-70℃ (No Icing) |
Reverse Polarity Protection | Yes |
Short Circuit Protection | Yes |
Material | PBT and SUS 304 |
Wire Method | diameter 3*2M/-3wires |
Feature
1. in-cable amplifier, convenient for narrow space installation.
2.12-24vdc operating voltage
3. Clear LED indicator.
4.5V proximity switch can be customized.

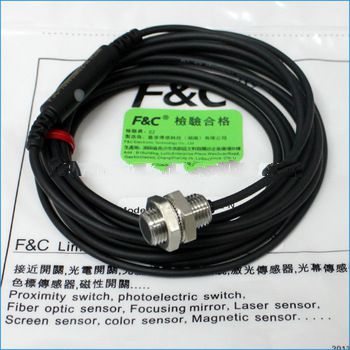

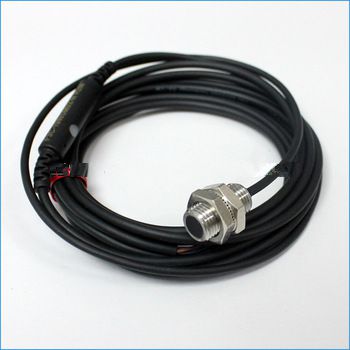

Photo for small M10 2mm sensing 5V dc NPN NO amplifier in-cable proximity sensor
Dimension Drawing
small M10 2mm sensing 5V dc NPN NO amplifier in-cable proximity sensor
Wiring Drawing
Before-sales Services
1.24-hours online service is available here. Once you have any questions, just contact us and our professional staff will reply very quickly. Email, Skype, Whatsapp or Online Message are acceptable.
2.Market information also will be provided. Since we are an experienced manufacturer of sensor, the market information about sensors will be offered as long as you need.
On-purchase Services:
1.The information of sensors that we provided is fully presented including product details, pictures, delivery and so on;
2.All your problems or worries will be solved quickly by our sales. It is worth noting that the prices of our sensors are quite negotiable. We have large discount for big quantity.
After-sales Services
1. The warranty period is 18 months.
2. If we send the wrong parts to you, free replacement will be available.
3. As for the installation of the parts, if you have any questions, do not hesitate to contact us at any time.
We will ship our product aboard with standard export package.
For small Qty, We will Ship our product to you by express.
For mass production , We will ship our product to you by Air or sea.
F&C main product include fiber optic amplifier , fiber optic sensor, fiber optic lens, proximity sensor, photoelectric sensor, label sensor, light curtain, laser alignment, pressure sensor,
magnetic sensor, M8 M12 female connector, laser sensor, color sensor,rail power supply,
solid state relay.
F&C Technology has been making continuous breakthrough in new technology and new material application,. Our Target is “What you need can be found in F&C Sensing Technology”.
1.Why Choose F&C Sensing Technology?
