waterproof Sn 5mm 3-wire Flush M18 inductive proximity switch with CE

waterproof Sn 5mm 3-wire Flush M18 inductive proximity switch with CE

FOB Price:

US 1-15 / Piece

Min.Order Quantity:

1 Piece/Pieces

Supply Ability:

50000 Piece/Pieces per Month

Port:

Shenzhen;Guangzhou

Place of Origin:

Hunan, China (Mainland)

Payment Terms:

L/C,D/A,D/P,T/T,Western Union,MoneyGram,paypal

Brand:

F&C

Products Model:

F3C-18KS05-N R2M

Products Details
Company Profile

Quick Details

Brand Name: F&C

Model Number: F3C-18KS05-N R2M

Place of Origin: Hunan, China (Mainland)

Packaging & Delivery

Packaging Details: Standard export package ;Customized export package
Delivery Detail: 10 days after payment

Specifications

waterproof Sn 5mm 3-wire Flush M18 inductive proximity switch with CE

Product Description

F&C inductive proximity switch Code Rule

1. Proximity sensor category(C:standard sensing distance ; L: double detection distance Type;

N: Square Type)

2. Head Dimension( Dia 4mm, M5,6.5mm, M8, M12, M18, M30)

3. Body Length( K: Standard Length; E: Short body)

4. Shield or Non-Shield

5. Detection distance(15:15mm)

6. Output Method(N: NPN NO; N2: NPN NC; P:PNP NO; P2: PNP NC;

B:2 wires NO: B2: 2 wires NC)

7. 2 meter standard soft wires

waterproof Sn 5mm 3-wire Flush M18 inductive proximity switch with CE

Wires	Model	Sensing Distance	Output Method
3-wire	F3C-18KS05-N R2M	5mm	NPN NO
	F3C-18KS05-N2 R2M	5mm	NPN NC
	F3C-18KS05-P R2M	5mm	PNP NO
	F3C-18KS05-P2 R2M	5mm	PNP NC
3-wire	F3L-18KS08-N R2M	8mm	NPN NO
	F3L-18KS08-N2 R2M	8mm	NPN NC
	F3L-18KS08-P R2M	8mm	PNP NO
	F3L-18KS08-P2 R2M	8mm	PNP NC

Specification for waterproof Sn 5mm 3-wire Flush M18 inductive proximity switch

Model	F3C-18KS05-N R2M
Output Method	NPN NO
Mounting Method	Flush
Detection Distance	5mm
Hysteresis	Less than 10% of sensing distance
Standard Sensing Object	18181(Iron)
Operating Voltage	12-24 VDC
Current Consumption	Less than 8mA (No Load)
Load current	100mA Max at 24 VDC
Residual Voltage	Less than 1.5VDC (No Load)
Leakage Current	Less than 0.01mA
Protection Degree	IP67
Operating Temperature	-25℃-70℃ (No Icing)
Reverse Polarity Protection	Yes
Short Circuit Protection	Yes
Material	PBT and Nickelled copper
Wire Method	Dia 4mm*2M/-3 wires

Advanatage of waterproof Sn 5mm 3-wire Flush M18 inductive proximity switch

1. Clear 360 degree view LED Indicator

2.Patent red protective sleeve

3.Nickel-copper alloy case

4.Cable and Connector version

5.Short-Circuit and Reverse Polarity protection.

All F&C Sensors use imported world first electronics components.

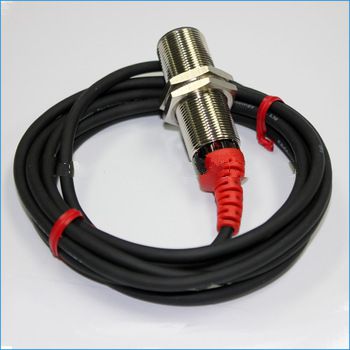

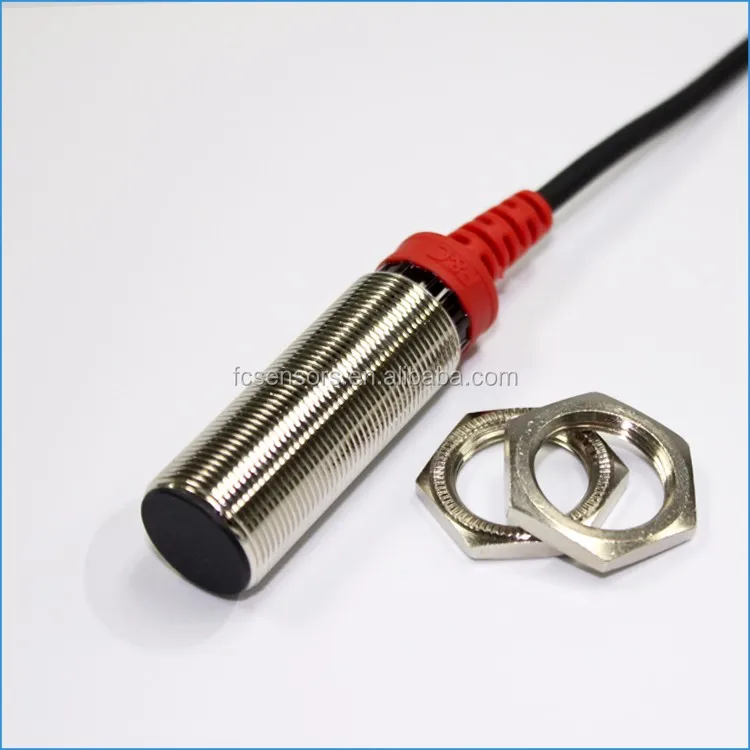

Product Display

^{waterproof Sn 5mm 3-wire Flush M18 inductive proximity switch}

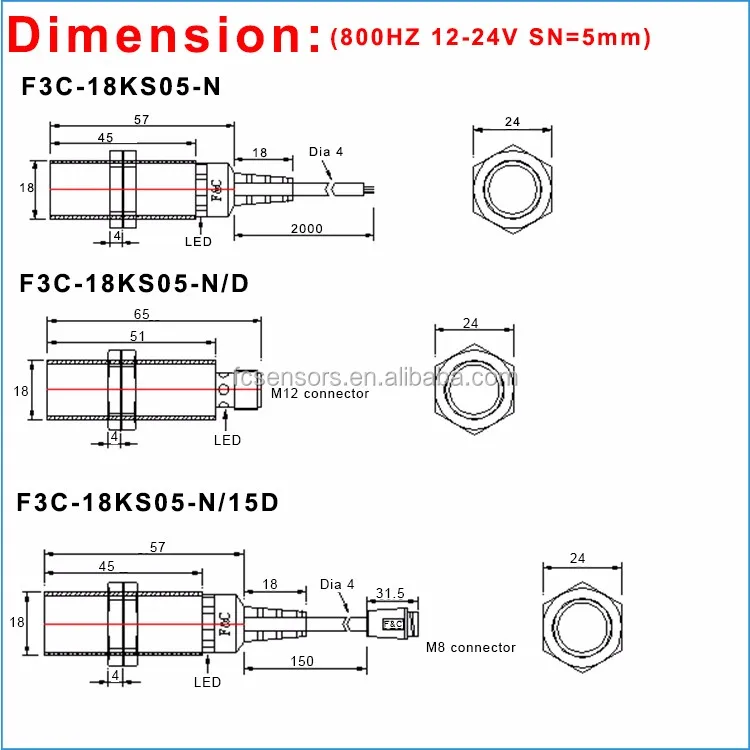

Product Drawing

Dimension Drawing

Our Services

1.Prompt reply to our customer, we have to reply all the email within 24hrs

2.Provide free replacement if there is any quality problem with our product.

3. Accept OEM Order, Ship the product with your logo.

Packaging & Shipping

We will ship our product aboard with standard export package.

For small Qty, We will Ship our product to you by express.

For mass production , We will ship our product to you by Air or sea.

F&C Electronics established a new company in changsha of Hunan province for produce in 2013, we specialized in making sensors. such as: fiber optical sensors, fiber amplifiers, photoelectric sensors, proximity sensors, laser sensors, color sensors etc.
Our current sensors have been widely used in industrial machinery and equipment, light industry, shoemaking industry, textiles, chemical, petroleum, tobacco, food industry, metallurgy,electric power field, for the purpose of limiting, position detection, automatic counting, speed measuring, automatic protection, signal transmission, protection, or isolation.
We welcome new and old customers from all walks of life to contact us for future business relationships and mutual success!
