Brand Name: F&C
Model Number: F3C-06KS01-NR2M
Place of Origin: Hunan, China (Mainland)

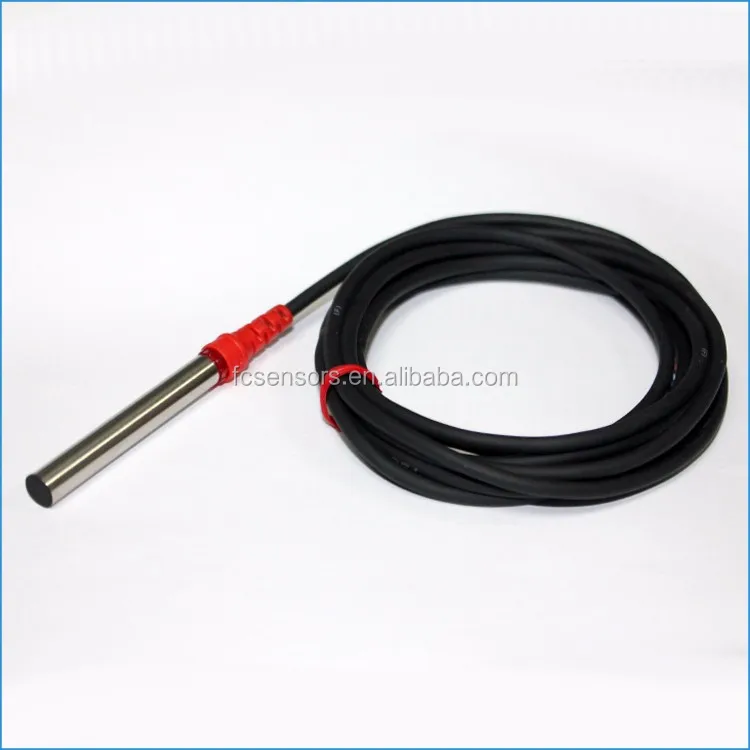

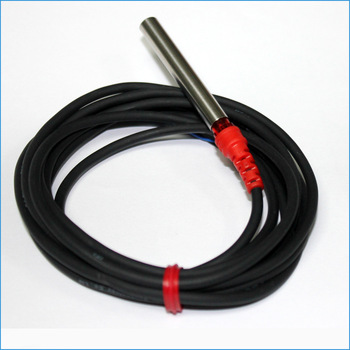

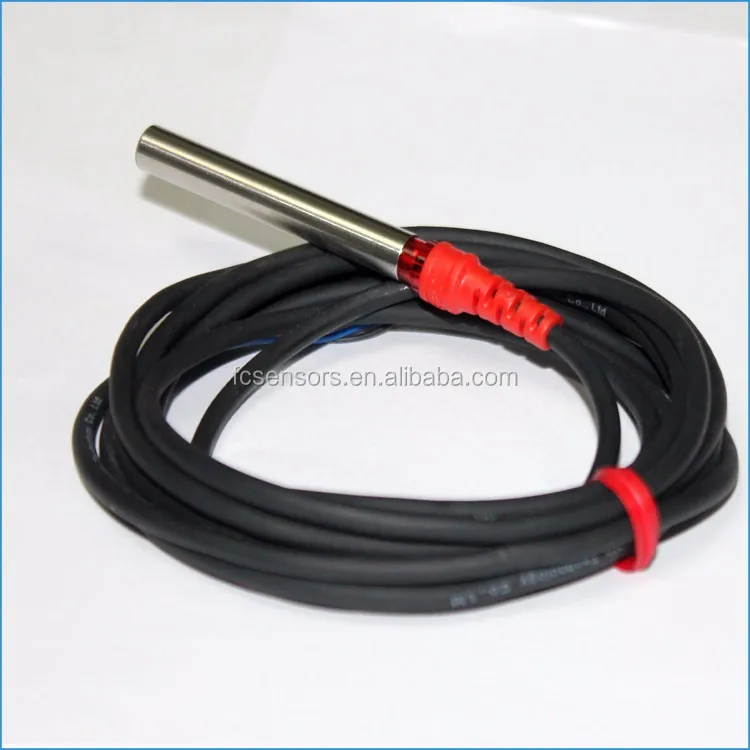

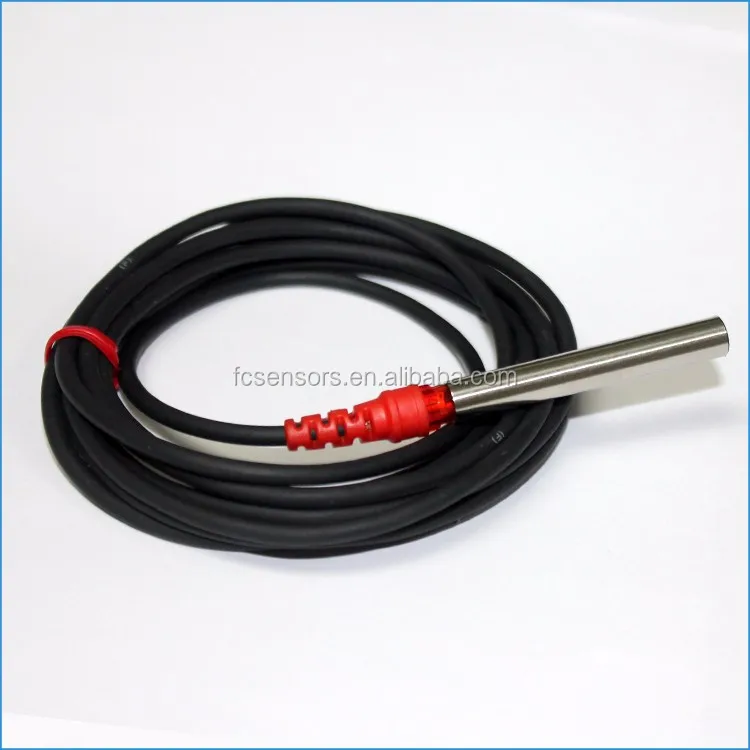

D6.5mm sn1mm 12V dc flush type inductive sensor
Please Click the picture for more details on our related inductive sensors.
Feature:
*Diameter:6.5mm
*DC 3-wires(12-24VDC+/-10%) ,customize 5VDC model
*PNP or NPN
*Detection distance:1mm
*Standard Sensing Object: iron 6.5*6.5mm
Circuit Protection: polarity reverse and short-circuit protection.
*Protection Grade: IP67
*Connection Method:Pre-wired 2m cable, pre-wired 150mm cable and M8 connector
Product display
Specification
| Mounting | Flush |
| Sense Distance | 1mm |
| Output NPN NO | F3C-06KS01-NR2M |
| Output NPN NC | F3C-06KS01-N2R2M |
| Output PNP NO | F3C-06KS01-PR2M |
| Output PNP NC | F3C-06KS01-P2R2M |
| Sensing Object | 6.5×6.5×1mm(iron,metal) |
| Response Frequency | 600HZ |
| Hysteresis | within 10% of sensing distance |
| Operating Voltage | 12~24V DC |
| Operating Temperature | -25~70℃ |
| Material | PBT and SUS304 |
| Connection | dia3.0*2M/3-wires |
| Certificate | CE |
| Protection Degree | IP67 |
| Polarity Protection | Yes |
| Short Circuit Protection | Yes |
1.Prompt reply to our customer, we have to reply all the email within 24hrs
2.18 month quality warranty, provide free replacement if there is any quality problem with our product.
3. Most economical shipping method will be choose to save the freight for our customer.
4. Accept OEM Order, Ship product with your logo.
We will ship our product aboard with standard export package.
For small Qty, We will Ship our product to you by express.
For mass production , We will ship our product to you by Air or sea.
F&C Sensing Technology originated from Taiwan is a professional sensor manufacturer with 23 years experience in sensor field.Our factory has a rich experience engineer team and owns over 30 patents. Our products cover 14 series and 5000 specification.
main product :fiiber optic amplifier, fiber optic sensor, fiber opic lens, proximity sensor, photoelectric sensor,
laser sensor,laser displacement sensor, color mark sensor,Label Sensor, Light Curtain, Laser projector, pressure switch, magnetic sensor, female connector, din-rail power supply, solid state relay.
F&C Technology has been making continuous breakthrough in new technology and new material application.
We hope we can provide one-stop service for your customer and extend our product line , then all you need can be shipped from F&C Sensing Technology
