Brand Name: F&C, F&C
Model Number: F3C-18EN08-N
Place of Origin: Hunan, China (Mainland)
M18 8mm 5V DC IP67 waterproof inductive proximity switch sensor
Specifications for 5v dc proximity sensor:
Model | F3C-18EN08-N |
Output Method | NPN/PNP |
Maximum detection | 8mm |
Standard sensing object | 12*12*1 24*24*1(iron) |
Outputing Way | NPN.NO.NC |
Response Frenquency | standard 800Hz |
Opearting voltage | 12-24VDC, 5V customizable |
Loard current | 24V 100mA max |
operating temperature | -25 to +70 degree |
Material | PBT |
Protection degree | IP67 |

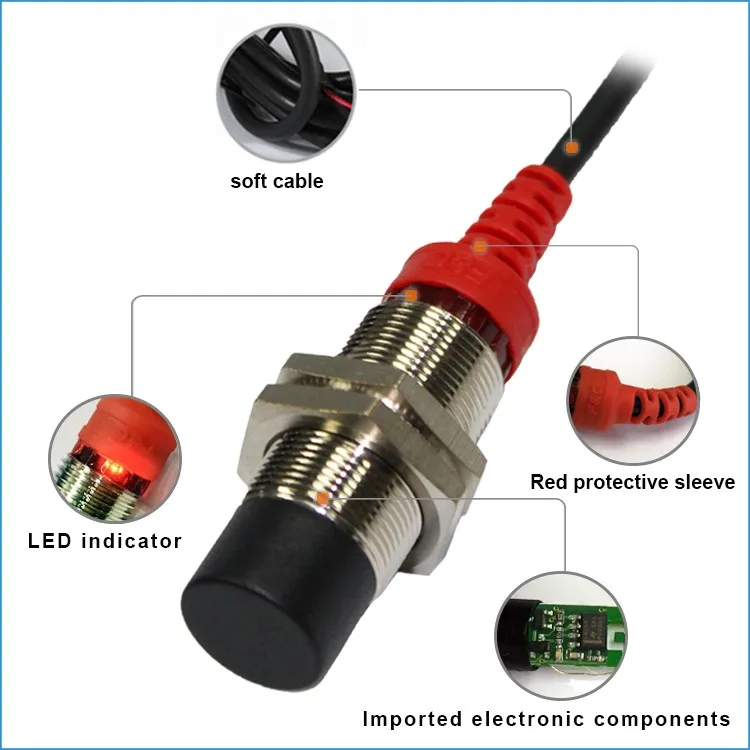

Features and advantages for 5v dc proximity sensor :
1. Red protective sleeve designed, to protected it better.
2. High performance 12-24VDC Built-in amplifier .
3. All round LED indicator.
4. 0.1ms high speed response time
5. OEM order accepted.

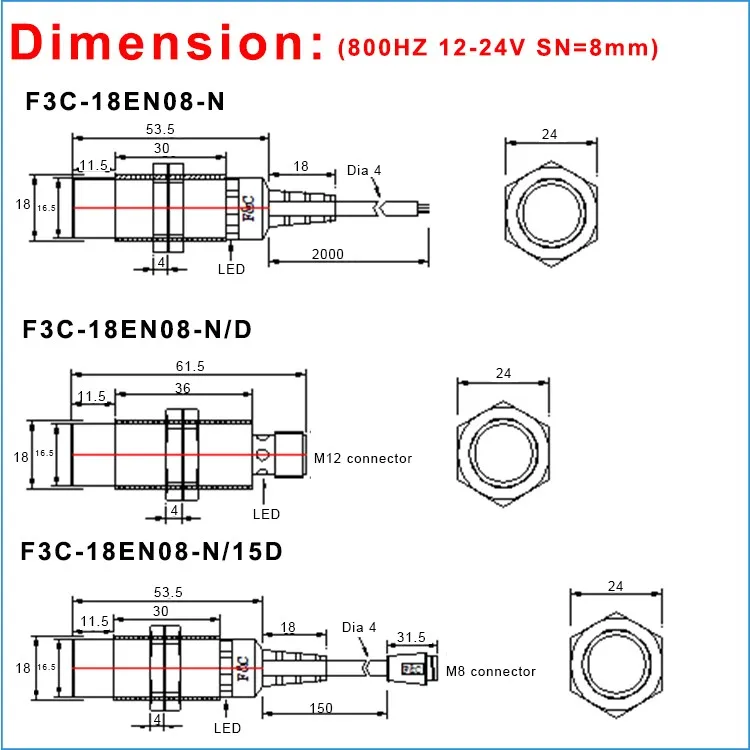

;Dimensions for proximity switch sensor:
1. We will ship our product aboard with standard export package and customized package also accepted. Generally, all order will be shipped within 5 days after payment confirmed.
2. For small quantity, We will Ship our product to you by express.
3. For mass production , We will ship our product to you by Air or sea.
1. Prompt reply to our customer, all customers will be replied within 24 hours.
2. Provide free replacement if there is any quality problem with our product.
3. Accept OEM Order, Ship the product with your logo.
