inductive proximity sensor, AC 2-wire proximity switch, non flush type sensor switch

inductive proximity sensor, AC 2-wire proximity switch, non flush type sensor switch

FOB Price:

Get Latest Price

Min.Order Quantity:

1 Piece/Pieces

Supply Ability:

1000 Piece/Pieces per Day

Port:

Shenzhen

Place of Origin:

Hunan, China (Mainland)

Payment Terms:

T/T,Western Union

Brand:

F&C

Products Model:

F3C-12KN04-AC R2M

Products Details
Company Profile

Quick Details

Brand Name: F&C

Model Number: F3C-12KN04-AC R2M

Place of Origin: Hunan, China (Mainland)

Packaging & Delivery

Packaging Details: 16*6*9 cm
Delivery Detail: Shipped in 7 days after payment

Specifications

inductive proximity sensor, AC 2-wire proximity switch, non flush type sensor switch

Feature of F3C Series Round proximity sensor

1.Flexible cable,
2.360 degree view LED indicator,
3.Red protective sleeve,
4.imported electronic components
All these make F&C inductive proximity switch sensor have stable quality ,durable and friendly to use.that is the reason why more and more factory choose F&C brand

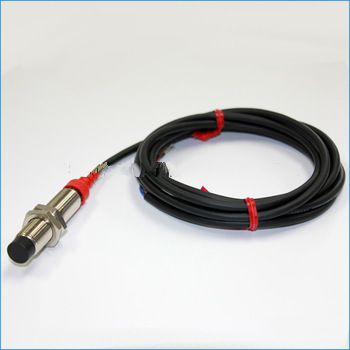

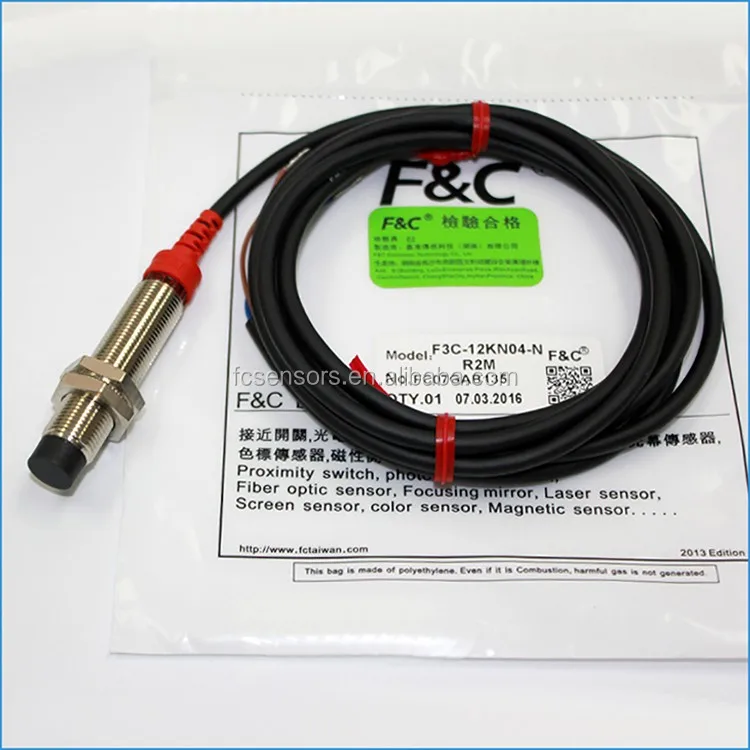

Product display

Inductive Proximity Sensor Detection Switch NPN DC12~24V 4mm normally open proximity switch

Specification

Model	F3C-12KN04-N R2M F3C-12KN04-N2 R2M F3C-12KN04-P R2M F3C-12KN04-P2 R2M	F3L-12KN08-N R2M F3L-12KN08-N2 R2M F3L-12KN08-P R2M F3L-12KN08-P2 R2M
Type	Haplotype distance	Double distance
Detection distance	4mm	8mm
Recommened distance	3.2mm	6.4mm
Standard Detection object	12121(Iron)	24241(Iron)
Response frequency	800Hz
Hysteresis	≤10% Detection distance
Operating voltage	12-24VDC(customize 5V)
Current consumption	<10mA
Load current	24V 100mA Max
Residual voltage	<1.0VDC
Protection circuit	Power anti-received protection and short circuit protection
Operating Temperature	-25℃-+70℃
Waterproof degree	IP67
Material	PBT
Wiring method	φ4.0×2M/3-wires

F&C Round proximity switch sensor coding rule

F3C	F3C: standard sensing distance. F3L: double sensing distance
12	Outer diameter is M12 (4mm,M5,6.5mm,M8,M12,M18, M30 available)
K	K: Standard main body E: short main body
S	N: Non-shield S: shield
2	Sensing distance
P	N: NPN NO N2:NPN NC P:PNP NO P2:PNP NC P:PNP NO P2:PNP NC
R	soft cable
2M	2M cable(cable length can be customized)

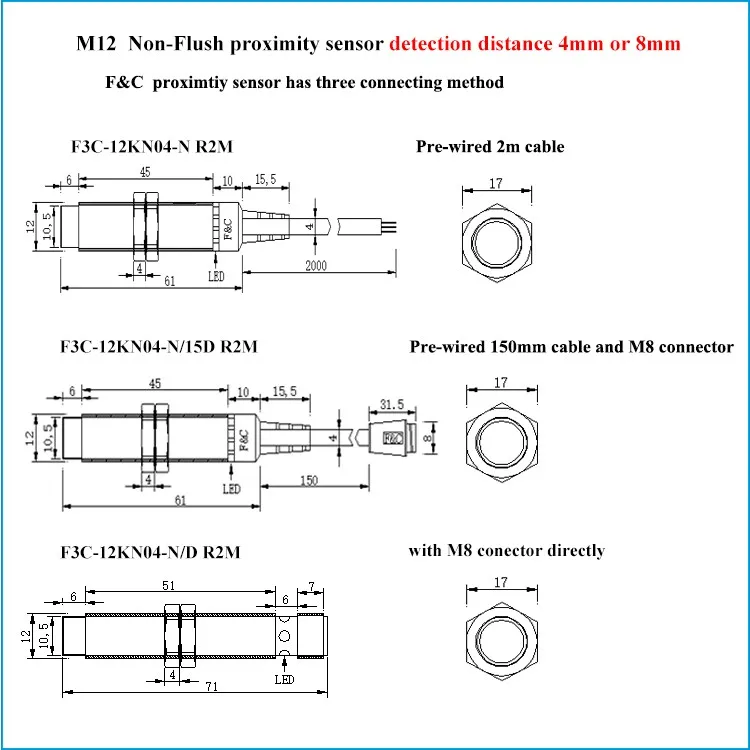

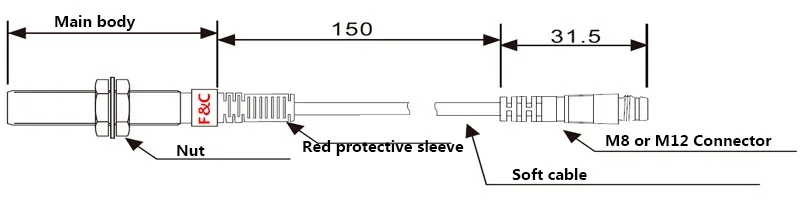

Dimension Drawing
