Home > Products > Intelligent Control > Sensor

Cylinder inductance sensor, DC 3 wires 5V proximity sensor, M12 sensor

Cylinder inductance sensor, DC 3 wires 5V proximity sensor, M12 sensor

FOB Price:

US 4-7 / Piece

Min.Order Quantity:

5 Piece/Pieces

Supply Ability:

5000 Piece/Pieces per Week

Port:

SHENZHEN

Place of Origin:

Hunan, China (Mainland)

Payment Terms:

L/C,D/A,D/P,T/T,Western Union,MoneyGram,Paypal

Brand:

F&C

Products Model:

F3C-12KS02-P R2M

Products Details
Company Profile

Quick Details

Brand Name: F&C

Model Number: F3C-12KS02-P R2M

Place of Origin: Hunan, China (Mainland)

Packaging & Delivery

Packaging Details: DC 3 wires 5V proximity sensor, M12 sensor Box package
Delivery Detail: 7 days after payment confirmed

Specifications

Cylinder inductance sensor, DC 3 wires 5V proximity sensor, M12 sensor

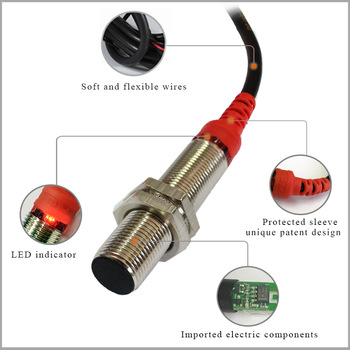

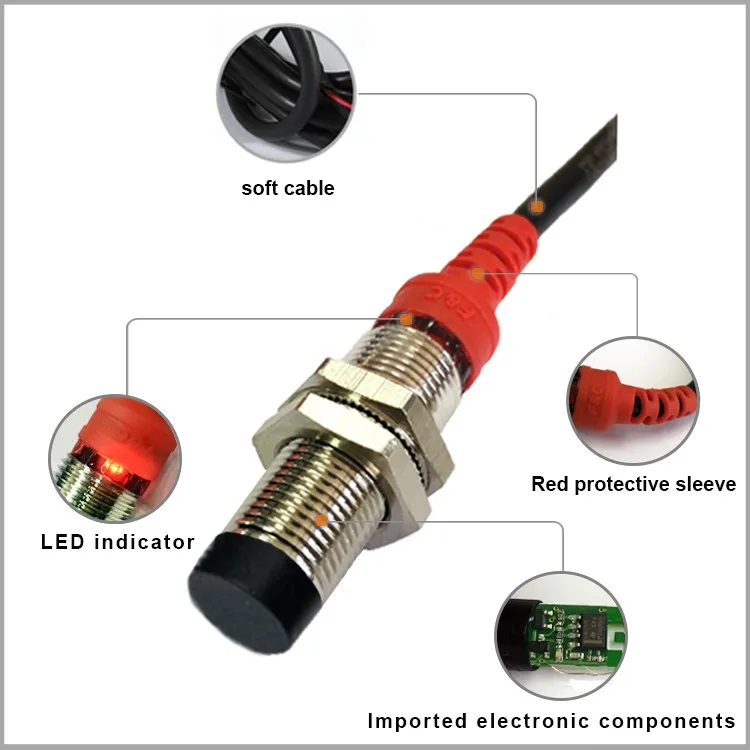

Feature of F3C Series Round proximity sensor

1.Flexible cable,
2.360 degree view LED indicator,
3.Red protective sleeve,
4.imported electronic components
All these make F&C inductive proximity switch sensor have stable quality ,durable and friendly to use.that is the reason why more and more factory choose F&C brand

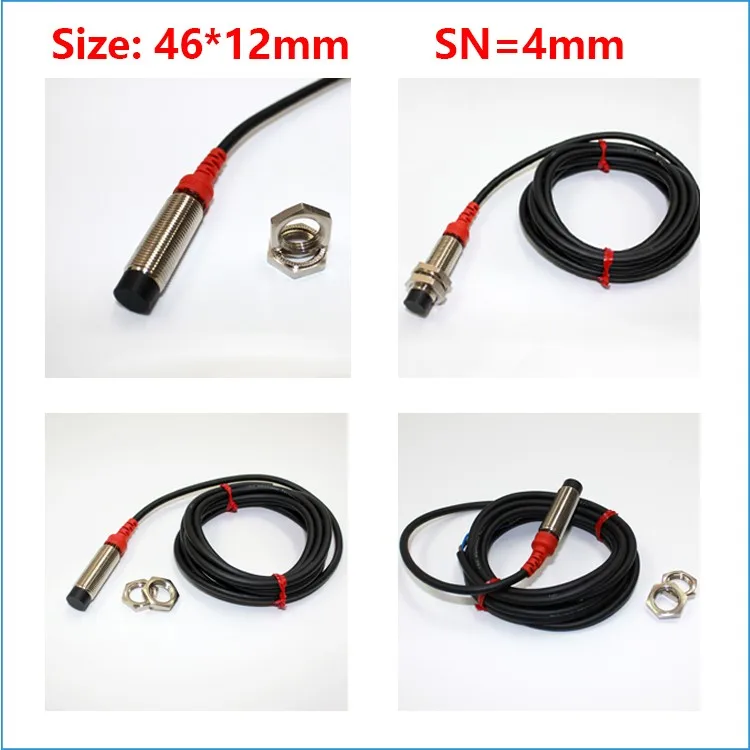

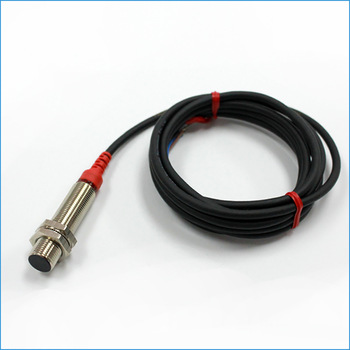

Product display

Round proximity sensor,proximity sensor, sensor for metal detecting sensor

Specification

Model	F3C-12EN04-N R2M F3C-12EN04-N2 R2M F3C-12EN04-P R2M F3C-12EN04-P2 R2M	F3L-12EN08-N R2M F3L-12EN08-N2 R2M F3L-12EN08-P R2M F3L-12EN08-P2 R2M
Type	Haplotype distance	Double distance
Detection distance	2mm	4mm
Recommened distance	1.6mm	3.2mm
Standard Detection object	12121(Iron)	24241(Iron)
Response frequency	800Hz
Hysteresis	≤10% Detection distance
Operating voltage	12-24VDC(customize 5V)
Current consumption	<10mA
Load current	24V 100mA Max
Residual voltage	<1.0VDC
Protection circuit	Power anti-received protection and short circuit protection
Operating Temperature	-25℃-+70℃
Waterproof degree	IP67
Material	PBT
Wiring method	φ4.0×2M/3-wires

F&C Round proximity switch sensor coding rule

F3C	F3C: standard sensing distance. F3L: double sensing distance
12	Outer diameter is M12 (4mm,M5,6.5mm,M8,M12,M18, M30 available)
K	K: Standard main body E: short main body
S	N: Non-shield S: shield
2	Sensing distance (02,04,08,12,18,30 available)
P	N: NPN NO N2:NPN NC P:PNP NO P2:PNP NC P:PNP NO P2:PNP NC
R	soft cable
2M	2M cable(cable length can be customized)

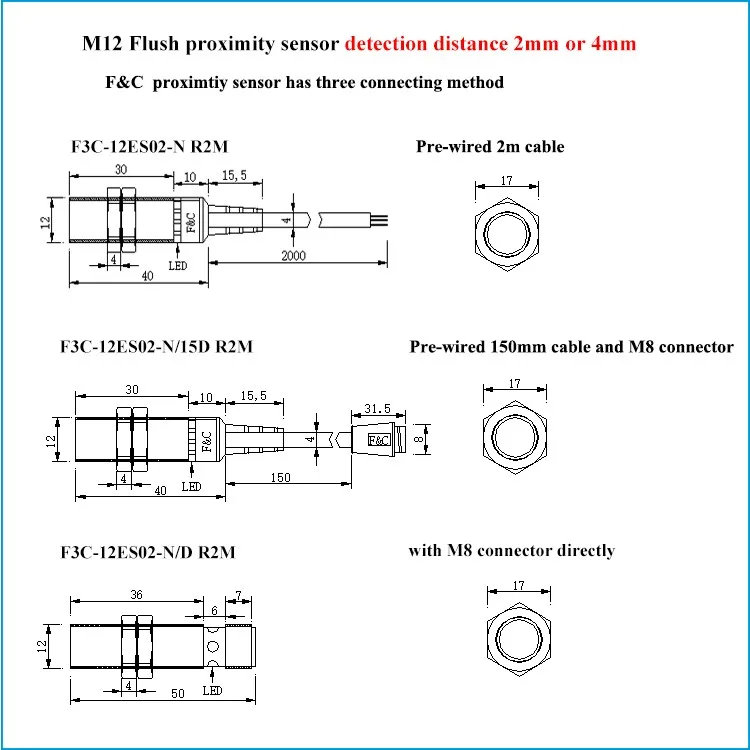

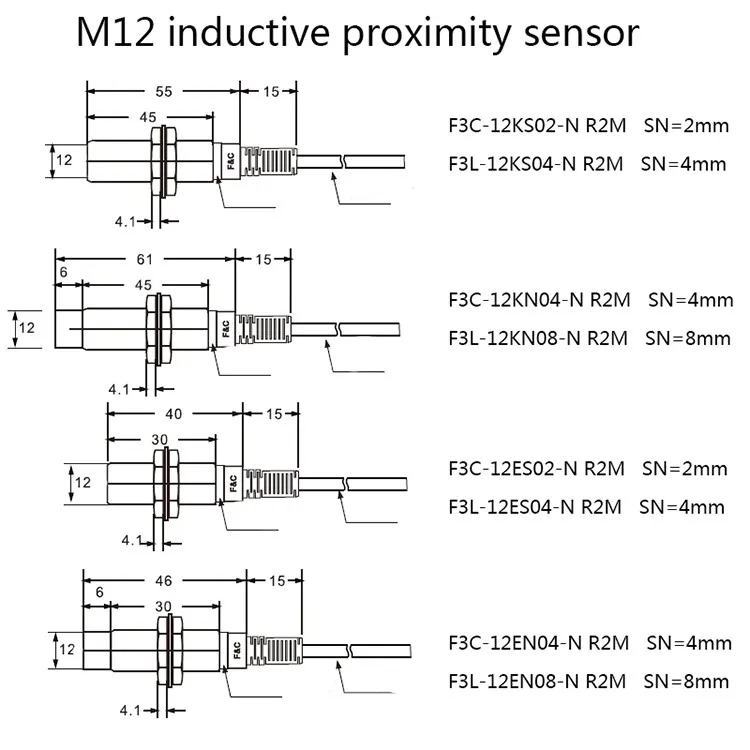

Dimension Drawing

Certifications

F&C Electronics established a new company in changsha of Hunan province for produce in 2013, we specialized in making sensors. such as: fiber optical sensors, fiber amplifiers, photoelectric sensors, proximity sensors, laser sensors, color sensors etc.
Our current sensors have been widely used in industrial machinery and equipment, light industry, shoemaking industry, textiles, chemical, petroleum, tobacco, food industry, metallurgy,electric power field, for the purpose of limiting, position detection, automatic counting, speed measuring, automatic protection, signal transmission, protection, or isolation.
