automatic mini laser die board cutting machine 300w power

FOB Price:

US 10000-15000 / Set

Min.Order Quantity:

1 Set/Sets

Supply Ability:

2000 Set/Sets per Year

Port:

Shanghai/Wuhan

Place of Origin:

Hubei, China (Mainland)

Payment Terms:

T/T,Western Union

Brand:

Hasary

Products Model:

HLD1218

Products Details
Company Profile

Quick Details

Brand Name: Hasary

Model Number: HLD1218

Place of Origin: Hubei, China (Mainland)

Packaging & Delivery

Packaging Details: Wooden Case
Delivery Detail: 7-15 Business Days

Specifications

professional automatic laser die board cutting machine with dual screw300w power

Product Description

Characteristic of Machine

1. CE approved

2. Double laser heads, cut bidirectionally from top and bottom at the same time, with high cutting efficiency, also assure the cutting seam to be straight

3. Automatic tracing system for focus point, overcomes the barrier of surface uneven

4. Powerful software, like AutoCAD, CorelDraw, and Adobe Photoshop for unique designing.

5. Adopting imported guide rails, ballscrew transmission system, servo motor and our special designed software, insure steady performance

6. CNC operation, with high cutting speed and accuracy

7. Exhaust system to keep the working condition free of smoke pollution

8. Can cut max. 25mm thickness, especially perfect performance on 20mm plywood

9. With our multi-function bending machine, can realize the full automatic process of template making.

Technical Parameters

Model of Machine	HLD1208	HLD 1210	HLD 1212	HLD 1215	HLD 1218	HLD 1224
Valid Size (mm)	1200*800	1200*1000	1200*1200	1200*1500	1200*1800	1200*2400
Laser Tube Type	CO₂Sealed Laser Tube
Laser Power	300W (work bidirectionally with two laser heads)
Cutting Speed	1.2m/min
Power Supply	220V 10A
Cutting Width	0.3-3mm(optional)
Max. Thickness	30mm
Color Separation	Yes
Cutting Precision	±0.02mm
Image Form	PLT, EPS, BMP, DXF
Control System:	Movement Control Board/CNC
Transmission	ballscrew
Driving System	Big motor
Air Feed Means	air

Application

1. Widely used in package and printing industry for different template making.

2. This equipment can be used to cut die board for carton box, label, cartoon, cards etc.

3. Applicable materials include plywood, plastic, organic materials, and other non-metal materials.

Packaging & Delivery

Packaging Detail: Wooden case

Delivery Detail: 30-35 Working Days

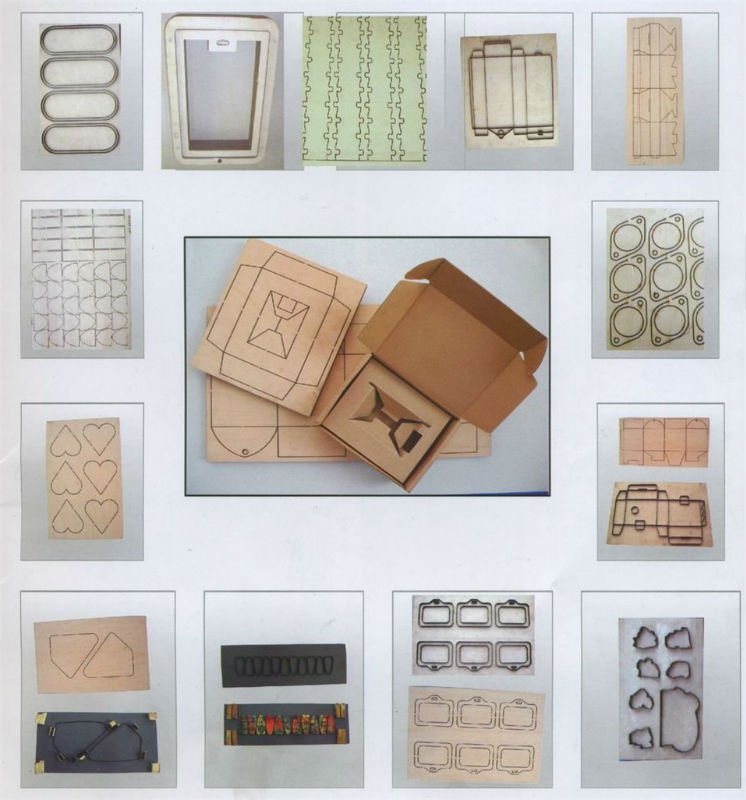

Sample display

Our Service

1. We provide one year warranty and lifetime maintenance, not included normal replacement of wearing parts.
2. Also we provide online and telephone service 24 hours a day, when it is necessary, we will send technician to the customer side to solve the problem.
3. User-friendly English manual and CD for machine using and maintaining.
4. Self-developed English software can do all kinds of pattern recognition.

Company Information

About Hasary

Wuhan Hasary Equipment Co.,Ltd is specialized in laser equipment such as metal laser cutting machine, fiber laser cutting machine, laser engraving machine and others. We have our own factory in Wuhan city,Hubei Provice,China.

Hasary laser adhering " qulity wins the market and the quality service wins the customers".

Our company has a powerfull R&D team. Through continuous research and development, all of these research results enable us to become one of few top leading companies in Chinese Market. They are fully committed and devoted to the further enhancement of their technological leadership in CNC and Laser Machinery industry. our own research laboratory device has been developed into laser equipment which can work continuously and stably for 24-hour a day.

Hasary Factory

Exhibition Show

Our Custmer

Any more information, please feel free to contact us, we can provide working videos and detailed info also the best price, Thanks!
