Aerothermal heat pump

FOB Price:

Open price

Min.Order Quantity:

1 Set/Sets

Supply Ability:

5000 Set/Sets per Month

Port:

Huangpu

Place of Origin:

Guangdong, China (Mainland)

Payment Terms:

L/C,T/T

Brand:

Hiseer

Products Model:

AW13/F

Products Details
Company Profile

Quick Details

Brand Name: Hiseer

Model Number: AW13/F

Place of Origin: Guangdong, China (Mainland)

Packaging & Delivery

Packaging Details: Plywood case
Delivery Detail: 25 days

Specifications

1.low noise,EN12102 test .
2.Design for Nordic climate
3.built-in hot water pump,electric heater,three way valve .easy install

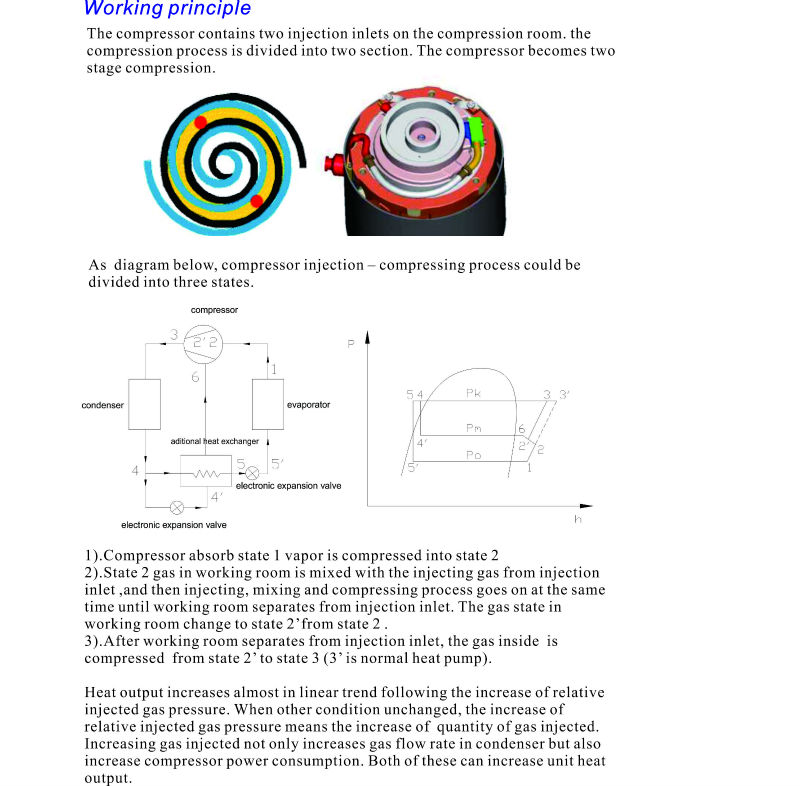

Thanks to EVI technology, Hiseer aerothermal heat pump designed for Nordic climate could offer heat strongly even under minus 25 Celsius degree.

World famous components, stable performance ,reliable and durable.

Intelligent control. User friendly.

Typical installation diagram:

Technical parameter:

AIR TO WATER HEAT PUMP		AW13/F
Heat output/Power consumption at 7/35°C	kW	14.0/3.6	COP 3.89
Heat output/Power consumption at 7/45°C*	kW	15.1/4.5	COP 3.36
Heat output/Power consumption at 7/55°C*	kW	14.8/5.8	COP 2.55
Heat output/Power consumption at 2/35°C	kW	12.0/3.5	COP 3.43
Heat output/Power consumption at 2/45°C*	kW	13.5/4.6	COP 2.93
Heat output/Power consumption at -7/35°C*	kW	10.6/3.9	COP 2.72
Heat output/Power consumption at -7/45°C*	kW	10.5/4.7	COP 2.23
Heat output/Power consumption at -10/35°C*	kW	9.5/3.9	COP 2.44
Heat output/Power consumption at -10/45°C*	kW	9.4/4.8	COP 1.96
Heat output/Power consumption at -15/35°C*	kW	8.6/3.9	COP 2.21
Heat output/Power consumption at -15/45°C*	kW	8.5/4.8	COP 1.77
Cool output/Power consumption at 35/7°C	KW	12.0/4.35	COP 2.76
Starting current	A	55
Power		380-415V/3PH/50Hz
Compressor		HITACHI scroll
Condenser		Brazed plate heat exchanger
Refrigerant R410A filling weight	kg	3.9
Nominal flow heating medium	m3/h	2.4
Internal pressure drop at nominal flow	kPa	24
Air flow	m³/h	5000
Nominal output fan	W	300
Max outgoing heating medium temperature	°C	55°C
Indoor unit dimensions(HxWxD)	mm	1200x650x400
outdoor unit dimensions(HxWxD)	mm	880x1150x350
Pipe connector		DN32
Indoor unit Weight	kg	150
outdoor unit Weight	kg	70
Operating ambient temp. range	°C	Heating -20~35
		Cooling 10~45
		DHW -20~43
The above data is tested by EN14511. 7/35°C means that :outdoor air temp.7°C, outlet water temp. 35°C
* : EVI is operating.
