Home > Products > Refrigeration Equipment > Condensing unit

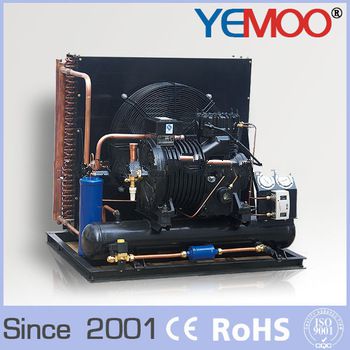

3hp 2.2kw Hangzhou Yemoo fan coil unit/refrigerator unit for truck with ac motor

3hp 2.2kw Hangzhou Yemoo fan coil unit/refrigerator unit for truck with ac motor

FOB Price:

US 680-2800 / Unit

Min.Order Quantity:

1 Piece/Pieces

Supply Ability:

2000 Piece/Pieces per Month

Port:

Shangai / Ningbo

Place of Origin:

Zhejiang, China (Mainland)

Payment Terms:

T/T,Western Union

Brand:

YEMOO(air cooled fan coil unit)

Products Model:

YMC2-030A

Products Details
Company Profile

Quick Details

Brand Name: YEMOO(air cooled fan coil unit)

Model Number: YMC2-030A

Place of Origin: Zhejiang, China (Mainland)

Packaging & Delivery

Packaging Details: Carton/ plywood/ Wooden case
Delivery Detail: 1-7 days

Specifications

Product Description

Characteristics:

1. Air cooled fan coil unit for medium & high temperature (environment +12℃~ -10 ℃)

2. Air cooled fan coil unit for low temperature & frozen environment (-10℃ ~ -30℃)

3.Equipped with YEMOO semi-hermetic piston compressor

4.Air cooled fan coil unit condensers are punched by high velocity ram machine. Folded by secondary

operation:condenser coils are expanded by mechanical tube expansion to obtain high heat exchanging capacity.

5.Shell &tube water condensers use high efficient wire-whorled copper pipes which can highly increase condensers’ heat exchanging efficient. Take small volume and keep light weight All condensers are produced and inspected strictly based on “Pressure Vessel of Refrigeration equipment” to ensure products’ quality.

6.Equipped with well-known brand of refrigeration parts:

1)Normal configuration of air cooled fan coil unit: filter drier, solenoid valve, double pressure controller, high & low pressure meter.

2)Standard configuration of air cooled fan coil unit:vibration absorber, oil separator, filter drier, sight glass. solenoid valve, double pressure controller, high & low pressure meter.

7.We offer additional parts to meet your special requests.

Other components of air cooled fan coil unit:

Receiver, solenoid valve, dry filter, sight glass, higher pressure meter, low pressure meter, pressure controller, unit frame

Optional components:

Shock absorber, oil separator, gas liquid separator

If you need any further information, please feel free to contact us.

We offer customize service, OEM welcomed!

Technical Data

Technical data	Air cooling condensing unit for medium & high temperature
Unit model	YMC2-030A	YMC2-040A	YMC2-050A	YMC2-080A	YMC2-100A	YMC3-150A
Compressor model	YMC2-030	YMC2-040	YMC2-050	YMC2-080	YMC2-100	YMC3-150
Norminal motor power (KW)	2.2	3	3.7	5.88	7.35	11
Displacement (W)	5314	6622	8745	12334	17746	25774
Refrigerant	R22
Power	380/400V-3PH-50Hz
Starting Current (A)	30-32	38-44	53-58	74-81	112-126	162-184
Max Operating current(A)	5.7	7.6	8.6	15	17.6	24.3
Crankcase heater (W)	60	60	60	120	180	180
Power of condensina fan motor	180	250	250	370	250x2	370x2
Fan motor working current	0.4	0.55	0.55	0.8	0.55x2	0.8x2
Range of Eva. Temp.(oC)	0 ~ -20 oC
Fitting environment Temp.(oC)	+0 ~ -10 oC

Dimension and installing dimension	Condenser	Receiver	Dimension			Installation Size		Connecting tube		Weight
Dimension and installing dimension	Air Cap.	Volume	A	B	C	E	F	Air Inlet	Liquid	Weight
Model	M³/h	dm³	mm	mm	mm	mm	mm	Ø(mm)	Ø(mm)	kg
YMC2-030A	12	780	680	520	720	390	19	10	115	133
YMC2-040A	13	670	670	600	610	380	25	12	170	139

Hangzhou Yemoo Refrigeration Equipment Co., Ltd. was established in 2003. Our company has standard factory and office buildings totally covering an area of 60,000sqm. We are a professional integrative manufacturer and devoting in refrigeration equipment R&D, design, production, sale, cold room project installation and service. Our production base is located in Xinchang County, Zhejiang. It only takes 2 hours' drive from Shanghai Pudong Airport, Hangzhou Xiaoshan Airport, Ningbo Port and Yiwu Market. With the convenient transportation, we sincerely welcome all potential clients worldwide to visit our company.

Adhering to the essence of technology during the pass decades, constantly summing up experience and pursuing scientific and technological innovation on the R&D, manufacturing of semi-hermetic refrigeration compressor, water-cooling condensing unit, air-cooling condensing unit, box-type condensing unit, evaporator and condenser, our quality has reached a high level all over the world, which obtains our clients' trusts and affirmation. We have passed ISO9001, ISO14001 and CCC for China and CE, RoHS and UL certifications for international market. We are also the agent and distributer of Bitzer, Danfoss, Maneurop compressor, Danfoss expansion valves, Danfoss solenoid valve, etc.

Even more quantities of products are hot selling in and out of China. We have more than 80 agents in 30 different states and cities worldwide, and our products are exported to Europe, America, Australia, the Middle East and Southeast Asia. We have gained good reputation in international market.

Our business principle is "Quality first, Client advanced, Innovation is the soul and our clients' satisfaction is our value of life".
