Brand Name: YEMOO
Model Number: YMZF-030M (3hp small refrigeration unit)
Place of Origin: Zhejiang, China (Mainland)
Characteristics:
1. Save labor---plate work structure, well formed, light weight, saving labor.
2. Save time---Connecting tube adopt bell like mouth, more convenient for connecting, can save 50% of installation time, as easy as install air conditioner.
3. Save space---new type of thin-wall design, can install back by wall and save space.
4. Mute refrigeration technology---units' fans are designed in a big angle, pit impressing and other mute technology. Copeland hermetic compressor, safe and low noisy.
5. Anticorrosive galvanized sheet steel which experienced strict salt spray test, with additional spray coating, suitable for bad weather environment.

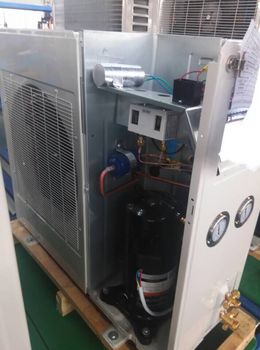

6. Equipped with copeland ZB screw compressors, dependable, high efficient, low noise and little vibration.
7. Equipped with check valve in inlet and outlet, easy for installation and maintain.
8. Various brand of compressor for your choice.
9. Fits different refrigerant: R134a, R404a, R507a and R22.
Range of application:
1. Refrigeration industry, cold room project.
2. Agricultural, food, restaurant, chemical industry.
Model | Titular Power | Condensing TemperatureoC | Refrigerating Capacity QO (W) | ||||
Evaporating Temperature oC | |||||||
-12 | -5 | 0 | 5 | 10 | |||
YMZB-020M | 2HP | 30 | 3550 | 4700 | 5650 | 6700 | 7850 |
40 | 3200 | 4250 | 5250 | 6100 | 7250 | ||
50 | 2650 | 3800 | 4550 | 5450 | 6500 | ||
YMZB-030M | 3HP | 30 | 5200 | 6850 | 8200 | 9700 | 11450 |
40 | 4650 | 6200 | 7450 | 8900 | 10500 | ||
50 | 3800 | 5500 | 6650 | 7950 | 9450 | ||
YMZB-040M | 4HP | 30 | 6950 | 9200 | 11000 | 13000 | 15350 |
40 | 6250 | 8300 | 10000 | 11900 | 14100 | ||
50 | 5100 | 7400 | 8900 | 10650 | 12700 | ||
YMZB-050M | 5HP | 30 | 8650 | 11400 | 13650 | 16150 | 19050 |
40 | 7750 | 10300 | 12400 | 14800 | 17550 | ||
50 | 6350 | 9200 | 11050 | 13250 | 15750 | ||
YMZB-060M | 6HP | 30 | 10450 | 13700 | 16400 | 19500 | 23100 |
40 | 9450 | 12500 | 14950 | 17800 | 21100 | ||
50 | 7650 | 11100 | 13400 | 16000 | 18950 | ||
YMZF-030M | 3HP | 30 | 1590 | 2010 | 2500 | 3100 | 3800 |
40 | 1460 | 1840 | 2300 | 2840 | 3500 | ||
50 | 1340 | 1690 | 2100 | 2590 | 3150 | ||
YMZF-040M | 4HP | 30 | 1970 | 2490 | 3100 | 3800 | 4650 |
40 | 1810 | 2290 | 2850 | 3500 | 4300 | ||
50 | 1650 | 2070 | 2580 | 3200 | 3900 | ||
YMZF-050M | 5HP | 30 | 2790 | 3500 | 4400 | 5400 | 6650 |
40 | 2570 | 3250 | 4050 | 5000 | 6100 | ||
50 | 2330 | 2950 | 3650 | 4550 | 5550 | ||
YMZF-060M | 6HP | 30 | 3250 | 4100 | 5150 | 6400 | 7900 |
40 | 3000 | 3800 | 4750 | 5900 | 7250 | ||
50 | 2680 | 3400 | 4300 | 5350 | 6550 |

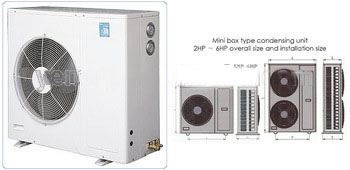

Model | Fan Motor Power | Fan Motor Oper. Current | Evaporating Temperature | Dimension | Installation Size | Connecting Pipe | Weight | ||||
Long | Width | Height | Long | Width | Suction | Liquid | |||||
(W) | (A) | (oC) | (mm) | (mm) | (mm) | (mm) | (mm) | Ø(Inch) | Ø(Inch) | (KG) | |
YMZB-020M | 60 | 0.26 | 10 ~ -20 | 950 | 350 | 840 | 580 | 390 | 5/8 | 3/8 | 70 |
YMZB-030M | 60 | 0.26 | 950 | 350 | 840 | 580 | 390 | 5/8 | 3/8 | 75 | |
YMZB-040M | 60x2 | 0.26x2 | 950 | 350 | 840 | 580 | 390 | 3/4 | 3/8 | 86 | |
YMZB-050M | 60x2 | 0.26x2 | 950 | 350 | 1240 | 580 | 390 | 3/4 | 1/2 | 90 | |
YMZB-060M | 60x2 | 0.26x2 | 950 | 350 | 1240 | 580 | 390 | 3/4 | 1/2 | 90 | |
YMZF-030M | 60 | 0.26 | 950 | 350 | 840 | 580 | 390 | 5/8 | 3/8 | 70 | |
YMZF-040M | 60 | 0.26 | 950 | 350 | 840 | 580 | 390 | 5/8 | 3/8 | 75 | |
YMZF-050M | 60x2 | 0.26x2 | 950 | 350 | 840 | 580 | 390 | 3/4 | 3/8 | 86 | |
YMZF-060M | 60x2 | 0.26x2 | 950 | 350 | 1240 | 580 | 390 | 3/4 | 1/2 | 90 |
