Extruded Copper or Carbon Steel Corrugated tube In Heat Exchanger Parts

 One of the drawing

Extruded  Copper or Carbon Steel Corrugated tube In Heat Exchanger Parts

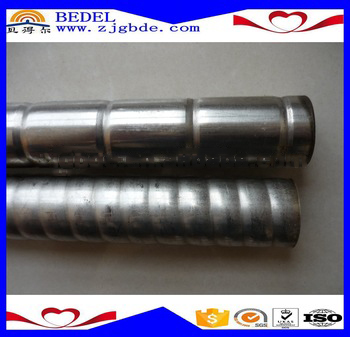

Corrugated tube (expansion wave tube)
High heat transfer efficiency
    The special design of peaks and troughs makes the fluid in expansion wave tube forms a strong turbulence because of the section continuous mutation inside and outside the pipe. Even when the flow velocity is small, the fluid in the tube inside and outside all can form strong disturbance, greatly improving the heat transfer coefficient of heat exchange tube. The heat transfer coefficient of expansion wave tube is 2 ~ 3 times higher than a traditional tube heat exchanger.
non-fouling, non blockage, and non dirty, smooth operation
    In the process of work, on the one hand, the media of expansion wave tube inside and outside always is in a highly turbulent state, to makes it hard for solid particles in the medium deposit scale, on the other hand, Affected by the medium temperature difference expansion wave tube may be out of shape as infinitesimal axial expansion, at the same time, the curvature of the tube inside and outside can has a change. Due to the coefficient of linear expansion between dirt and bellows tube is vary wide, a larger pulled off force between dirt and heat exchange tube will produce, so even if there are scale, they could burst up and off automatically, and keeping the heat exchanger has always been persistent and highly efficient performance. At the same time, there is no congestion because the channel is wide, the pressure drop is small, and the energy-saving effect is obvious.
Automatic compensation function
    The special structure shape makes the expansion wave tube can effectively reduce the thermal stress, do not need to set expansion joint in the heat, which simplifies the structure of products and improves the reliability of the product.
Reliable, safe and strong
    The existences of the peaks and troughs make the expansion wave tube axial expansion ability enhancement, effectively reduces the temperature difference stress, can adapt to the changing of the large temperature difference and pressure so that it can't be leaks of tube rupture caused by the phenomenon. With a unique connection technology, Baffle plate and bellows tube prolong the service life of heat exchanger.

BARE TUBE

MATERIAL

FIN TUBE

MATERIAL

BARE TUBE

DIAMETER

(MM)

CARBON STEEL

COPPER,STAINLESS STEEL,ALLOY
