2017 new high quality L type spiral twining finned tube used in heat exchanger

2017 new high quality L type spiral twining finned tube used in heat exchanger

FOB Price:

US 4-20 / Meter

Min.Order Quantity:

100 Meter/Meters

Supply Ability:

100000 Meter/Meters per Month

Port:

Shanghai

Place of Origin:

Jiangsu, China (Mainland)

Payment Terms:

L/C,T/T

Brand:

BEDEL

Products Model:

001

Products Details
Company Profile

Quick Details

Brand Name: BEDEL

Model Number: 001

Place of Origin: Jiangsu, China (Mainland)

Packaging & Delivery

Packaging Details: 2017 new high quality L type spiral twining finned tube used in heat exchanger with sea worthy plywood case and steel frame
Delivery Detail: Shipped in 30 days after payment

Specifications

2017 new high quality L type spiral twining finned tube used in heat exchanger

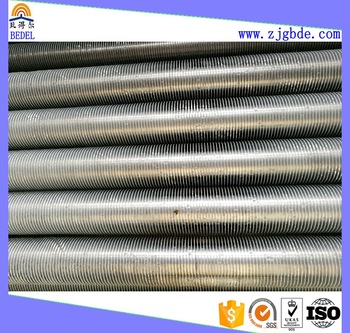

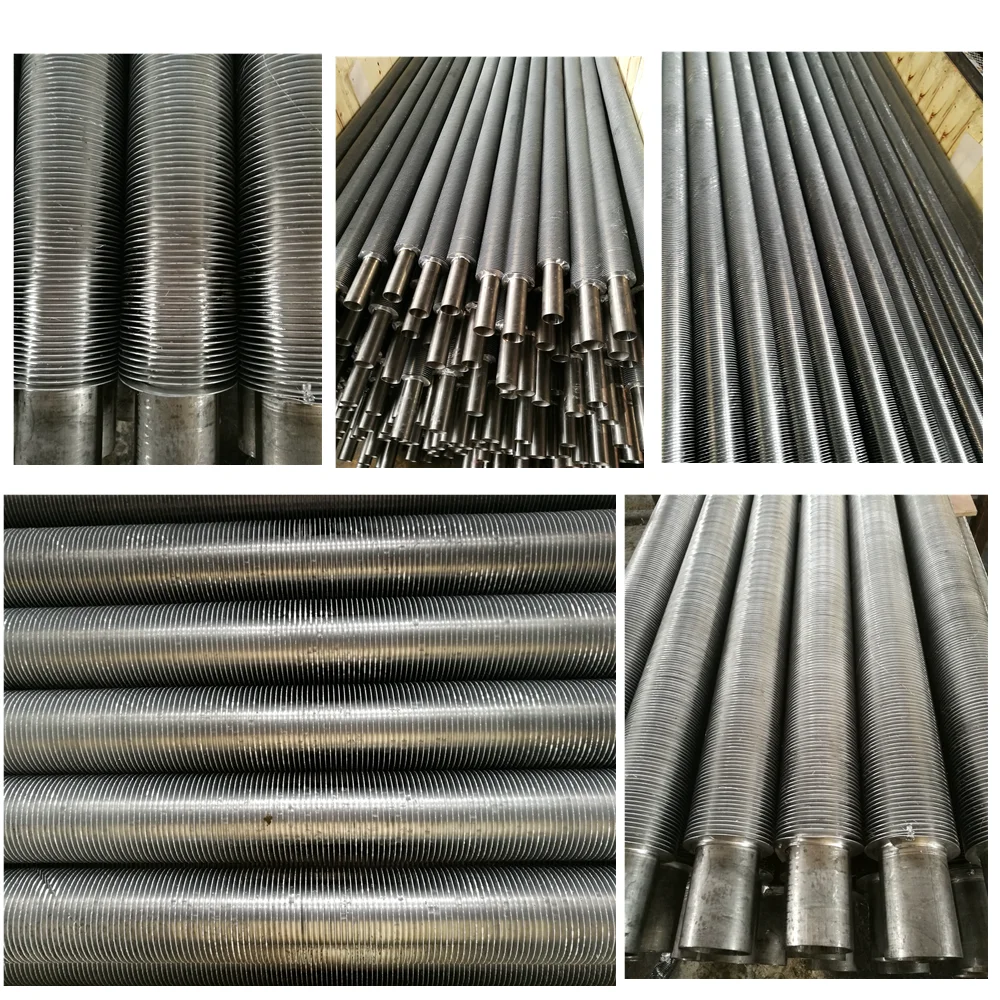

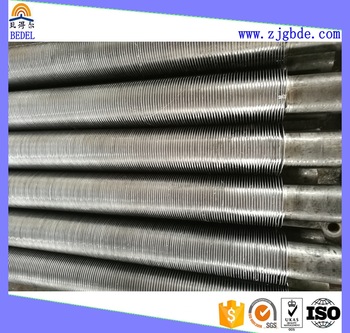

L Type Spiral Fin Tube

L-type finned tube

L-type finned tube makes the trapezoidal cross-section forming by rolling combine closely with the heat flux density distribution size. The fins combine tightly with the tube,which makes the thermal efficiency higher and put an end to thermal resistance that brings by the non eliminate contact from segment gap of the string type finned tube.

Working temperature: 230 ℃
1 Features:
The winding technology improves production efficiency and heat transfer, makes the average fin pitch and higher proportion between fins and tube. At the same time, the base tube can be protected from air erosion.

2 Application:
L-type finned tube mainly used in petrochemical, electric power, paper making, tobacco, building heating and other industry such as air cooler, air heater and air heater of food industry, plant starch spray drying system.

One Of Reference Drawing

Product Name	Wound L Type Fin Tube
Material	Copper Stainless Steel,Aluminum,Carbon Steel, Alloy, Copper, etc
Type	Wound
MOQ	100 Meter
Packing	Strong Plywood Case With Steel Frame
Warranty	1Year
Payment	T/T, L/C
Application	Heater,Heat Exchanger Parts

FIN TUBE REFERENCE
TYPE	NAME	BARE TUBE MATERIAL	FIN TUBE MATERIAL	BARE TUBE DIAMETER (MM)	FIN SPECIFICATION (MM)
TYPE	NAME	BARE TUBE MATERIAL	FIN TUBE MATERIAL	BARE TUBE DIAMETER (MM)	FIN PITCH	FIN HEIGHT	FIN THICK
EMBEDDED	G-TYPE FIN TUEB	CARBON STEEL COPPER,STAINLESS STEEL,ALLOY	ALUMINUM	16-63	2.1-5	<17	~0.4
EXTRUDED	SINGLE METAL COMBINED METAL	CARBON STEEL, COPPER STAINLESS STEEL,ALLOY	COPPER ALUMINUM	8-51	1.6-10	<17	0.2-0.4
	LOW FIN TUBE T-TYPE FIN TUBE	CARBON STEEL, COPPER STAINLESS STEEL,ALLOY	/	10-38	0.6-2	<1.6	~0.3
	BAMBOO TUBE CORRUGATED TUBE	CARBON STEEL,COPPER STAINLESS STEEL	/	16-51	8-30	<2.5	/
WOUND	L/KL/LL TYPE FIN TUBE	CARBON STEEL, COPPER STAINLESS STEEL,ALLOY	COPPER ALUMINUM	16-63	2.1-5	<17	~0.4
STRING	STRING FIN TUBE	ALUMINUM,COPPER CARBON STEEL STAINLESS STEEL	ALUMINUM,COPPER CARBON STEEL STAINLESS STEEL	25-38	2.1-3.5	<20	0.2-0.5
U-TYPE	U-TYPE TUBE	CARBON STEEL,COPPER STAINLESS STEEL	/	16-38	/	/	/
WELDING	HF-WELDING FIN TUBE	CARBON STEEL, ALLOY STAINLESS STEEL	CARBON STEEL, ALLOY STAINLESS STEEL	16-219	3-25	5-30	0.8-3
	H/HH TYPE FIN TUBE	CARBON STEEL, ALLOY STAINLESS STEEL	CARBON STEEL, ALLOY STAINLESS STEEL	25-63	8-30	<200	1.5-3.5
	STUDED FIN TUBE	CARBON STEEL, ALLOY STAINLESS STEEL	CARBON STEEL, ALLOY STAINLESS STEEL	25-219	8-30	5-35	Φ5-20
