Brand Name: TiBright
Model Number: FB301S
Place of Origin: Shandong, China (Mainland)

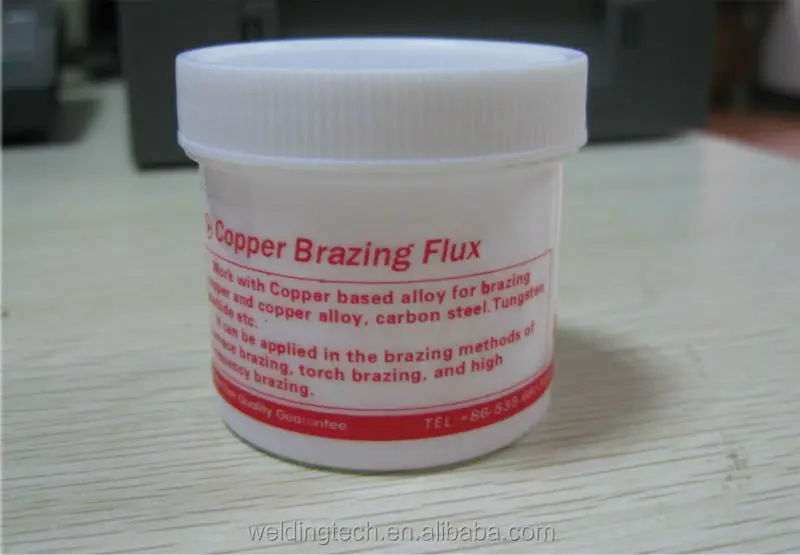

Copper Brazing Flux Powder
Please visit our website for more information, www.tibright.com
Product Usage |
Copper brazing flux powder can work together with copper or nickel based brazing filler metals on copper, copper alloy, stainless steel, nickel alloy, carbide steel, and diamond PCD at the temperature range of 750-1150°C in frame brazing, induction brazing, electrical resistance welding, furnace brazing, and so on. |
Physical Description |

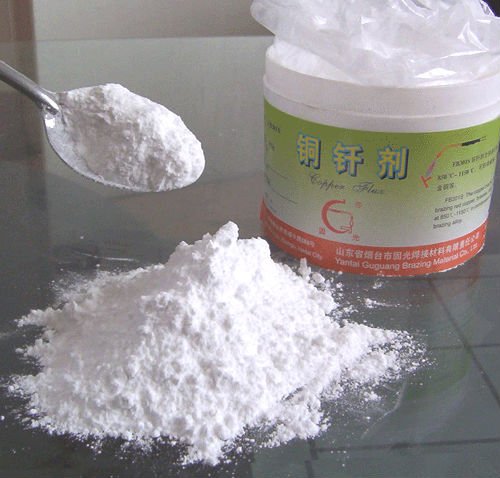

White powder, granularity ≤ 150um. |
Standard |
JB/T6045-92, Fluxes for Brazing, Zhuang, Hongshou |
Storage |
Keep it in dry and cool place. Protect against damp, inedible. |
Package |
a) 226.8g (8 Oz)/Plastic Can, 80 Cans/ Carton b) 454 g (16 Oz)/Plastic Can, 40 Cans / Carton c) 500 g / Plastic Can, 40 Cans / Carton d) 500 g / Plastic Bag, 60 Bags / Drum e) Customized Package is available. |
Yantai Tibright Welding Materials Co. Ltd. is a manufacturer of all kinds brazing materials, equipments, and utensils. The company has started since 2000. We are the most professional researcher and developer in China. We have accumulated dozens of different product technology and sunsequenly abundant product pool. We are also grad to customize product for specific costomers.
When choose from our product pool, please check out our recommended product list and if you have any questions, please let us know and we will try our best to satisfy your inquiry.
Code |
Activity range(°C) |
Description |
FB301S-1 |
780-950 |
General purpose,good fluidity.Work with copper based alloy for brazing steel,mild steel,steel alloys,stainless steel,tungsten carbide,diamond tools etc. |
FB301S-2 |
750-1150 |
Good fluidity,work with copper based brazing alloys for brazing alloys for brazing tungsten carbide tools. |
FB301S-3 |
780-950 |
Good fluidity,work with copper based brazing alloys for brazing steel,low carbon steel,steel alloy,stainless steel,tungsten carbide,diamond tools etc. |
Basically our package issue for powder product is for 500 gram/box, 20 box/carton. However, we have several special package for international customers: 20 gram/box, 225 gram/box, 400 gram /box. Small packages are popular for customers in reparement industry.

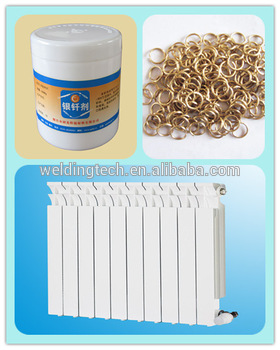

The surface of the work piece should be cleaned carefully before brazing.Excellent brazing performance will get on brazing a surface without oxidation film and grease stains.In flame brazing,neutral flame is usually required.The powder can be mixed with hot water to be creamy,while the other option is to dip the filler metal wire in the powder.Operator should try not to heat the filler metal and the flux directly by the flame.The residues is glassy solid attached on the work ieces.Usually it can be sanded off.The more convenient method is to merge the hot work pieces into cold water after the solidification of the filler metal.The residues can fall off the surface because of the sudden boiling of water.Partial component in the residue can be dissolved into the water.In this method,the temperature difference between the cold water and the work pieces should be cautiously controlled to prevent the shaping and cracking of the work pieces.Suitable for factory of radiator,bike,fitness apparatus,refrigeration accessories,automobile accessories,ornaments and jewelry,electric equipments,hardware tools,etc
Yantai Tibright Welding Materials Co. Ltd. was started from laboratory in 1996 and founded in 2000. The company is the first one who specialized on brazing materials in China, which means we did not have much foundations, and the pioneers of the company started product formulars from very basic repeadly research. Ever since then, Tibright have had all product developed by ourselves.
Our main current customers are in dozens of different fields, such as radiator, compressor, electic utility, glasses, auto parts, tools, nuclear station, and so on. Our big customers include Haier, Gree, Media, Siemens, Sanhua, and so on.
One headlight of our service is that we provide costomized product specially designed for specific costomer. We have a lot of successful cases in which the customer had the product suitable for the procedure, environment and operation habits perfectly.
We also provide entire brazing solution for customers to solve all the problem related to brazing process. For those brazing parts, materials and dimensions which are hard to braze we can come up with a solution after enough research for our customers.
