Brand Name: TiBright
Model Number: D1V
Place of Origin: Shandong, China (Mainland)

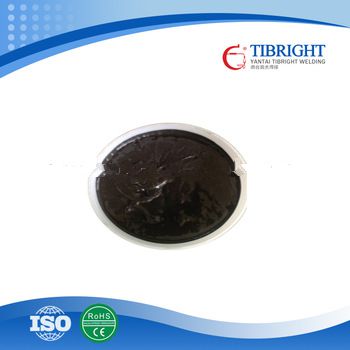

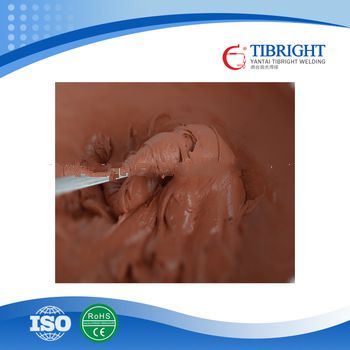

D1V001 Silver Alloy Brazing Filler Metal Paste
Brazing alloy paste is a brazing material consists of brazing alloy powder with binders mixed carrier. The alloy powder has a complete spherical shape, uniform particle size and low oxygen content. The mixture of well formulated Binder and the powder is a uniform and stable paste without lodgment and caking. It can provide high efficiency, low waste, and automotive application for the brazing process. In addition, brazing alloy paste can be customized with the particle size, viscosity, strength, and drying life.
There are four main kinds of brazing alloy paste according to different utilities, namely, silver brazing alloy paste,copper brazing alloy paste,aluminum brazing alloy paste and nickel brazing alloy paste. To select the most appropriate brazing paste, many factors have to be taken into account, such as: materials to be joined, heating method, type of atmosphere, etc. We can also customize product for our customer.
Silver alloy brazing paste is used for brazing copper alloy, stainless steel and steel alloy.
code |
Composition% |
melting range |
standard |
||||
Ag |
Cu |
Zn |
Sn |
Si |
°c |
EN1044 |
|
Ag45 |
45 |
30 |
25 |
|
|
677-743 |
|
Ag35 |
35 |
32 |
33 |
|
|
680-730 |
|
Ag30 |
30 |
38 |
32 |
|
|
690-760 |
AG204 |
Ag25 |
25 |
40 |
35 |
|
|
690-800 |
AG205 |
Yantai TiBright Welding Materials Co. Ltd., founded in 2000, is a professional developer and international supplier of inclusive brazing materials, equipment, and consultant. TiBright has hundreds of products for different applications. Customized products are also available for specific purposes.
When choose from our product library, please check out our recommended product list, If you have any questions, please let us know, We will try our best to satisfy your inquiry. Sometimes we need our customers to try different samples to make the perfect decision. Generally, we need to know the following information to choose a right product for you.
1. Materials of your parenting parts (to-be-brazed parts).
2. Heating methods. (eg. flame, induction, vacuum furnace etc. )
3. Atmosphere of application. (eg. room air, protective inert gas, reductive gas, vacuum, etc.)
4. Dimensions of your parts. Photos or graphs are preferred. (Different dimensions require different procedures.)
5. Current solution. (eg. brazing materials, equipment, procedures, etc.)
6. The reasons of searching new solution. (eg. price, strength, applicability, etc.)
7. Industry of your application. (Help us refer to similar examples.)
Normal package, other package can be customized according to customer's requirement.
Product |
Dimension |
Package |
Brazing Alloy Rod |
500 mm |
1 kg/bag, 20 kg/box,10 kg/bag |
Brazing Alloy Rod |
1000 mm |
5 kg/bag, 30 kg/box |
Brazing Alloy Wire |
Roll |
5 kg/roll, 10 kg/roll, 20 kg/roll |
Brazing Alloy Sheet/Strip |
All kinds |
1 kg/bag, 10 kg/box, 20 kg/box |
Brazing Alloy Ring |
All kinds |
1 kg/bag, 10 kg/box, 30 kg/box |
Brazing Alloy Powder |
|
5 kg/bag, 10 kg/box, 30 kg/barrel |
Brazing Alloy Paste |
|
1 kg/can, 10 kg/barrel, 30 kg/barrel |
Brazing Flux Powder |
|
500 g/can, 500 g/bag, 20 kg/box |
Brazing Flux Paste |
|
1 kg/can, 1 kg/bag, 40kg/box |
Brazing Flux Paste-Auto |
|
1 kg/can, 1.5 kg/can, 9kg/box |
Brazing Flux-liqui/gas |
|
3 liter/barrel, 3.5 kg/barrel, 12kg/box, 200 liter/barrel |
