Water Deforosting Roof Type Air Cooler of Cold Storage Room for Food Freezing

Working principle:

Heat exchange takes place between the high-temp Gaseous refrigerant in pipe coil and water sprayed onto it. The high-temp Gaseous refrigerant turns into liquid during the process.

The fresh air travels from the bottom to the top of the condenser, taking away the vapor of the heated spay water. The vapor water will be stopped by the water fender board and flows into the collection basin through pipe coils, and then pumped back into the circulation system. The lost water can be re-supplied with the water level regulator;

Feature:

The air and water goes in reverse directions, the fresh air flows into the condenser from the bottom, cooling the lower part of pipe coil to an over-cooled status; the condenser chamber tends to be negative pressure due to the blocking of the air-inlet grid, accelerating the evaporation;

Pipe coil:

Continuous bend coil pipe, with long flow path, few weld joint and leakage points;

Hot dipped galvanized technology adopted to improve the corrosion prevention performance;

Imported Aluminized zinc plate: composed by Al, Z, Si.

The material has the feature of aluminum which is corrosion resistant and heat resistance, but also the “galvanic anode” of Zinc, thus an ideal combination of aluminized plate and galvanized plate, with nice appearance and corrosion performance.

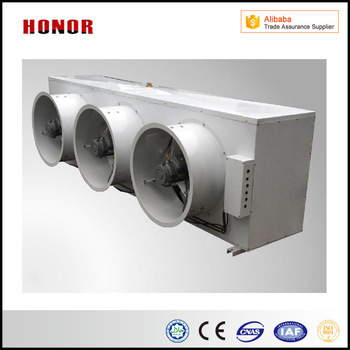

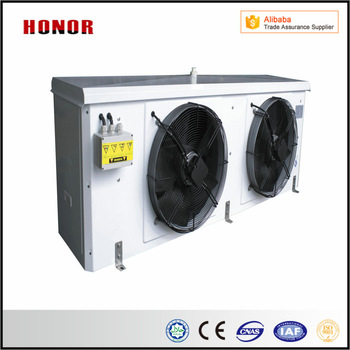

 Double  Discharge Air-Cooler

Features: HS series of bilateral air-cooled fan is a supporting the use of food processing equipment in the library between the cooling equipment, from both sides of the wind, air supply is mild, suitable for 8 ° C (such as library temperature below 8 ° C Installation of defrosting heater)

1. Shell with aluminum, the surface spray, corrosion-resistant, beautiful appearance;

2. The coil adopts the wrong way, adopts the mechanical expansion tube, makes the copper pipe and the aluminum fins closely together, the heat transfer effect is good;

3. The use of external rotor motor, double-sided side of the hair, soft air, low noise;

4. Please contact us for special purpose products

    Shandong Honor Refrigeration Technology Co., Ltd. is located in the coast of the Yellow River - Shandong Binzhou. The company occupies 150,000 square meters, has a strong design, production, sales service team and advanced sound manufacturing, testing equipment, and customers according to special specifications and specific requirements for professional design, processing. Products widely used in electronics, machinery, chemicals, textiles, refrigeration, printing, food logistics, storage and other fields.

    The company is mainly engaged in the production of refrigeration equipment and maintenance structure and mainly for refrigeration, air conditioning engineering design and installation of the enterprise. We have access to and inspection of many well-known domestic and foreign enterprises of refrigeration equipment, and in-depth research and analysis on the basis of its essence to develop and use to their own products, so as to form a technologically advanced, strong applicability Series of refrigeration products. The company's products from a high starting point, the structure of reasonable and advanced, its technology in the leading level of similar products, many products exported abroad, users enjoy a good reputation. In a few short years has developed into a very influential, in the refrigeration market occupies a place, so that the industry with admiration for the business.

    The company has a well-trained, experienced and dynamic technical team, so as to ensure that products continue to draw new technology, the company's products in the advanced technology at the same time, but also to meet the different needs of customers a wide range of practical characteristics.

    The company not only to provide users with quality products, but also to the user technical services on all the work of the primary position, all users use my company's products all the problems occurred in the first service to solve the problem and then analyze the principle of the problem to To ensure the normal use of the user. We solemnly committed to the problems in the province, 24 hours rushed to the scene for processing, 48 hours outside the province rushed to the scene, all for the user thought, "anxious users of the urgency."

   Companies adhere to the "quality first, the credibility of the first" principle, is willing to high-quality products, reasonable prices, satisfactory service, advanced technology and customers at home and abroad sincere cooperation, join hands in creating brilliant tomorrow!

   Packaging:By Seaway Packing

Shipping:20 days after confirm order

1. We will prepare all of the components for you, the installation is very easy. We will offer you the instruction installation books for you for your convenience.
2. International standard wooden case

Our  great team
