Waterproof And Insulated Sandwich Panel For Blast Freezer Refrigerator

Waterproof And Insulated Sandwich Panel For Blast Freezer Refrigerator

FOB Price:

Get Latest Price

Min.Order Quantity:

100 Square

Supply Ability:

10000 Square per Meter/Square

Port:

Qingdao or as per request

Place of Origin:

Shandong, China (Mainland)

Payment Terms:

L/C,D/A,D/P,T/T,Western Union,MoneyGram,Paypal

Brand:

HONOR

Products Model:

HONOR-KB01

Products Details
Company Profile

Quick Details

Brand Name: HONOR

Model Number: HONOR-KB01

Place of Origin: Shandong, China (Mainland)

Packaging & Delivery

Packaging Details: plastic bubble package with carton protection at corners
Delivery Detail: Shipped in 10 days after payment

Specifications

Product Description

Waterproof and Insulated Sandwich Panel

Insulation material: Polyurethane (PU)

Standard thickness: 75mm, 100mm,120mm, 150mm, 200mm
PU density: 40~43kg/m3
Fire retardant: B1~B3 grade (optional)
Heat transfer coefficient: 0.023 W/M*K

Panel cover material: Color steel / Stainless Steel

Application

PU Sandwich panel, composed of 2 layers of colored steel sheets, and with polyurethane as filling material. It is widely used in factory buildings, storages, exhibition halls, gymnasiums, freezing stores, purifications workshops, etc, which features temp-keeping, heat insulation, weight-bearing, weatherproof with the rich colorfulness and good appearance.

Features

High strength, wear resistant, oil resistant, shock absorption, heat preservation;

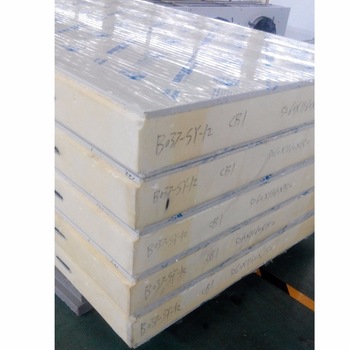

Stainless steel PU panel for cold storage room

Parameters

Product name	Polyurethane(PU) Sandwich Board
Thickness	upper layer	0.3-0.5mm
	core material	50mm, 75mm, 100mm, 120mm,150mm,200mm,250mm
	bottom layer	0.3-0.5mm
Effective Width	standard	960mm, 1160mm
	other	can be customized
Length	can be customized, less than 12m
Density	40+/-2 kg/m3
Weight	depends
Color	any(generally white,blue,red,grey,)
Temp tolerance	-50-60℃
Fire resistance level	B3, B2, B1 (optional)
Surface profile	flat,corrugated,big rib, small wave, embossed
Compression bearing	≥0.2Mpa
Material	upper layer	PPGI(prepainted galvanised steel)color steel / SS sheet
	inner layer	PU foam(injected,not glued)
	bottom layer	PPGI(prepainted galvanised steel)color steel / SS sheet
Parts	Eccentric hook used for connection of panel
	Film covering for protecting the surface layer
Heat transfer coefficient	0.023+0.001W/M*K
Characteristics	heat insulation energy-saving	100mm width can keep temp at 0℃(suit for fresh keeping)
		150mm width can keep temp at -18℃(suit for cold storage)
		200mm width can keep temp at -38℃(suit for freezing)
	water resistance and sound proof
	weather proofing
	fire retardant level:C
	high strength and bending resistance
	easy/quick installation and dismantling,labour cost saving
	light weight compared to traditional stone or plaster panel
	safe and green,good appearance,without formaldehyde
	Lifespan	can reach 15-20 years
Usage	Can be used for wall,roof,floor and partition of cold storage, mobile house, suburban housing, suburban housing,industrial plants, warehouses, supermarkets, hospitals, stadiums, activities room,clean workshop and reconstruction residence, villa, kindergarten, commercial building, remodeling of old structures, heat insulation fire places, airport, etc.

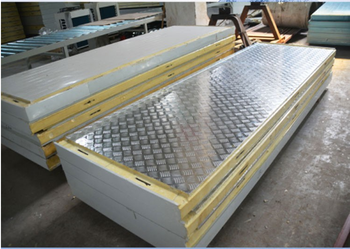

Stainless steel PU panel for cold storage room
