Mini type Variable Frequency Drive 0 75kW

FOB Price:

US 88-105 / Piece

Min.Order Quantity:

1 Piece/Pieces

Supply Ability:

8000 Piece/Pieces per Month

Port:

NINGBO/SHANGHAI

Place of Origin:

Zhejiang, China (Mainland)

Payment Terms:

L/C,T/T,Western Union

Brand:

CHZIRI

Products Model:

ZVF200-M0007S2MDR

Products Details
Company Profile

Quick Details

Brand Name: CHZIRI

Model Number: ZVF200-M0007S2MDR

Place of Origin: Zhejiang, China (Mainland)

Packaging & Delivery

Packaging Details: Standard export package
Delivery Detail: 5 work days

Specifications

Product Description

ZVF200-M Series is sensorless vector micro AC drive. The compact design is ideal for small and medium horsepower applications. The M drive is designed to provide an ultr-low-noise operation, and includes several innovative technologies that

ruduce interference.

Input Voltage (V)	Output Voltage(V)	Power Range(KW)
Single phase 220V± 20%	Three phase 0~input voltage	0.75KW~2.2KW
Three phase 380V ± 20%	Three phase 0~input voltage	0.75KW-2.2KW
Overload capacity:150% 1 minute; 180% 1second;200% transient protection

1. 16-bit microprocessor controlled PWM ouput.

2. Automactic torque boost & slip compensation.

3. Output frequency:0.1~400HZ

4. 8-step speed control & 7-step process control;

5. Low-noise carrier frequency up to 15KHz;

6. 2 accel./decel. times & S-curve;

7. Process follower 0-10VDC. 4-20mA;

8. Communicatio interface RS485;

9. Energy saving & automatic voltage regulation (AVR);

10. Adjustabl V/F cuve & simple vector control;

11. Automatic adjustment of accel./decel. times;

12. PID feedback control;

13. Simple position function;

Application range:

Packing machine,dumpling machine, treadmill, temperature/humidity control fan for agriculture and aquaculture, mixer for food

processing,grinding machine,drilling machine,small size hydraulic lathe,coating equipment.,smal size milling machine,robot arm of injection machine(clamp).wood machine(two-side woodworking planer).edge bending machine etc.

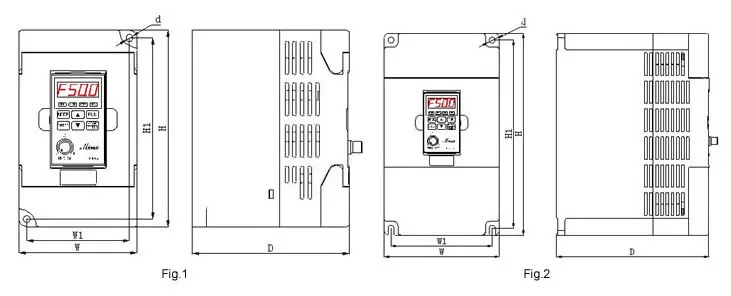

Inverter Outline Dimension & Mounting Dimension

Inverter Model	Voltage (V)	Power (KW)	Current ( A)	Dimension (mm)						Figure
Inverter Model	Voltage (V)	Power (KW)	Current ( A)	H	W	A	B	D	d	Figure
ZVF200-M0004S2MD	220V	0.4	2.5	141.5	85	130.5	74	113	5	Fig.1
ZVF200-M0007S2MD		0.75	5.0	141.5	85	130.5	74	113	5
ZVF200-M0015S2MD		1.5	7.0	151.0	100	140.0	89.5	116.5	5
ZVF200-M0022S2MD		2.2	10	151.0	100	140.0	89.5	116.5	5
ZVF200-M0007T4MD	380V	0.75	2.3	151.0	100	140.0	89.5	116.5	5
ZVF200-M0015T4MD		1.5	3.7	151.0	100	140.0	89.5	116.5	5
ZVF200-M0022T4MD		2.2	5.0	151.0	100	140.0	89.5	116.5	5
ZVF200-M0037T4MD		3.7	8.5	220.0	125	205	110	166.5	6.5	Fig.2
ZVF200-M0055T4MD		5.5	9.5	220.0	125	205	110	166.5	6.5	Fig.2

Technical indications

Item	Description
Input	Rated voltage	Single phase/Three phase 220VAC . Three phase 380V.50HZ/60HZ
	Allowable Voltage range	Voltage fluctuate range: 220V:180V~264V ;380V:342~258V. Voltage unbalance rate:<3%.
	Frequency	50/60Hz Frequency Fluctuate< ±5% .
Output	Rated voltage	0~ three phase input AC voltage
Output	Frequency	0.1~400HZ.
Control Function	Modulation mode	SPWM (sinusoidal Pulse Width modulation)
	Control mode	V/F control & sensorless vector control
	Frequency resolution	Digital setting :0.1HZ. Analog setting :Max.Frequency x0.1%.
	Overload capacity	150% of rated current for 1 minute
	Torque Characteristic	Including the auto-torque .Auto-slip compensation .Start torque can be 150% at 5.0HZ.
	Acel/Decel Time	0.1~600 seconds ( 2 independment setting for Accel/Decel time )
	V/F pattern	Adjustable V/F Pattern
	DC Breaking	Operation frequency 0~60HZ . Output 0~100 % rated current . Starting time 0~5 seconds . Stop time 0-25 seconds
	Carrier frequency	1.0~15.0KHZ
	Stall prevention level Frequency setting	20%`200% setting of rated current
Operation Function	Command	Keypad .External terminal control . COM Serial control
	Frequency setting	Keypad potentiometer setting . Operation panel up down setting . external Terminal UP/DOWN setting . Analog signal setting . 485 COM Setting .
	Multi-function analog output	0-10VDC singal . Output frequency . current .output .
	Output signal	Programmable relay . open collector output . Fault signal output .
Other Function		AVR .Over voltage . Over-current stall prevention .3-Groups fault records . Reverse inhibition . Momentary Power loss restart . DC braking . Auto torque& slip compensation . acceleration/ deceleration. S- curve .auto tuning . adjustable carrier frequency. Frequency limits . Parameter lock /rest . Vector control . PID control . Counter .remote control .MODBUS communication . Abnormal reset , Abnormal restart . energy saving running . sleep/revival function . 1st/2nd frequency source selection .
Protection Function		Over Current .Over current .Under voltage .external fault .Overload. Ground fault. Overheating .
Ambient	Installation location	Altitude 1000m or less .Keep from corrosive gas .liquid and dust
	Ambient Temperature	-10 ℃ to 40 ℃( -10℃ to 50 ℃ without blind plate )
	Ambient Humidity	Below 90% RH (no-condensing ).
	Vibration	<0.5G
	Storage temperature	-20 ℃ to 60 ℃
Structure	Protection Level	IP20
	Cooling mode	Forced air cooling
	Installation	Wall mounted

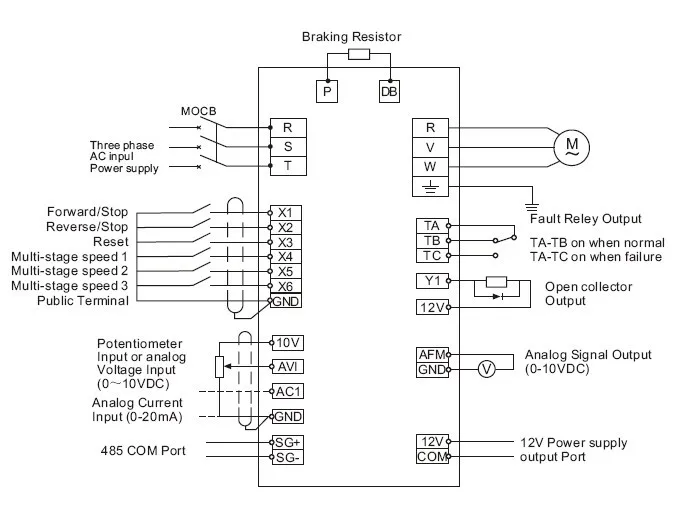

Inverter's Standard Wiring Diagram
