food processing factories used low pressure produce small capacity steam gas oil boilers

food processing factories used low pressure produce small capacity steam gas oil boilers

FOB Price:

Get Latest Price

Min.Order Quantity:

1 Set/Sets

Supply Ability:

1000 Set/Sets per Year

Port:

Shanghai, Qingdao, Tianjin, Guangzhou, or other ports as required

Place of Origin:

Henan, China (Mainland)

Payment Terms:

L/C,D/A,D/P,T/T,Western Union,MoneyGram,paypal

Brand:

Yuanda

Products Model:

LHS

Products Details
Company Profile

Quick Details

Brand Name: Yuanda

Model Number: LHS

Place of Origin: Henan, China (Mainland)

Packaging & Delivery

Packaging Details: Packing of food processing factories used low pressure produce small capacity steam gas / oil boilers, boiler proper, nude packing. Auxiliary machines, wooden box.
Delivery Detail: 0-60 days after order confirmed

Specifications

food processing factories used low pressure produce small capacity steam gas / oil boilers

Product Overviews

LHS industrial fire tube vertical boilers adopts international technology, large space design of combustion chamber. Burner, famous brand, such as Italy Baltur, Riello, is designed at the top of furnace, good for combustion and furnace life. LHS boilers are suitable for natural gas, petroleum gas, LNG( Liquefied Natural Gas) , LPG(Liquefied Petroleum Gas), CNG(Compressed Natural Gas), waste gas, biogas, city gas, coal gas, other fuel gas, and diesel, biodiesel, light oil, heavy oil, heavy oil fuel (hfo), heavy oil bunker c, residual oil, residual furnace heavy fuel oil, continental oil, continental crude oil, bunker fuel, bunker oil fuel, etc.

Standard Features

1.Durability

2.Good Quality

Each unit is tested and inspected and registered with the National Board of Boiler and Pressure Vessel Inspectors.

3.High Efficiency

LHS vertical boilers is designed for optimum fuel efficiency.

4.Low Maintenance

5.Easy Access

6.Compact Structure

7. food processing factories used low pressure produce small capacity steam gas / oil boilers

Accessories

The whole working system of boilers room, besides boilers, also need other auxiliary machines, inlcuding water pumps, water sofenter, valves and meters, chimney, etc.

Here are some photos of installed well boiler plants,

Technical Datas

Technical datas of LHS vertical fire tube gas/ oil fired steam boilers

Steam Boiler Models	Rated steam capacity (t/h)	Rated working pressure (bar)	Rated Steam temperature (^oC)	Fuel consumption		Thermal efficiency (%)
Steam Boiler Models	Rated steam capacity (t/h)	Rated working pressure (bar)	Rated Steam temperature (^oC)	Light oil (Kg/h)	Natural gas (m3/h)	Thermal efficiency (%)
LHS0.3-0.4-Y(Q)	0.3	4	151	19.2	25.5	89
LHS0.5-0.4-Y(Q)	0.5	4	151	32	42.5	89.2
LHS0.5-0.7-Y(Q)	0.5	7	170	32	42.5	89.2
LHS0.7-0.4-Y(Q)	0.7	4	151	49.5	64.5	89.7
LHS0.7-0.7-Y(Q)	0.7	7	170	49.5	64.5	89.7
LHS1-0.4-Y(Q)	1	4	151	65	84	90.3
LHS1-0.7-Y(Q)	1	7	170	65	84	90.8
boiler name	food processing factories used low pressure produce small capacity steam gas / oil boilers

Application

For its compact structure, high efficiency and low consumption, LHS industrial fire tube vertical boilers are widely used in laundry houses, hospital, hotels, food industry, textile industries, garments factories, chemical factories, etc.

Customers

Every year, many customers all over the world come and visit our factory for business negotiation. And our boilers had been exported to many countries.

Company Profile

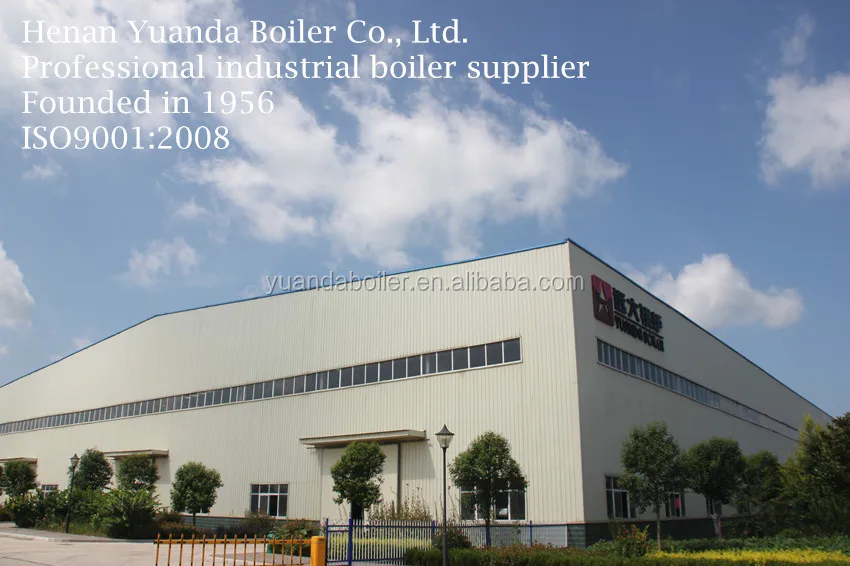

Henan Yuanda Boiler Co., Ltd. was established in 1956. The plant is located in Zhoukou city and office in Zhengzhou city, Henan province, the central part of China. Our plant locates in Xihua County Industrial parks, with the complete and modern supporting infrastructures, convenient transportation and pleasant environment. It is 1.5 hours away from Zhengzhou airport, so warmly welcome customers all over the world.

With a core emphasis on superior engineering and strict manufacturing quality standards, Yuanda continually strives and meets the ever increasing expectations of today’s customers for reliable heat, power or steam generation at an economical investment cost.

Our wide product range serves to meet the heat, steam or power needs of our customers regardless of their industry and location. Our products are the result of years of continuous and rigorous detailed engineering and dedication to providing quality in our manufacture and in our service to our customers.

Our Team

Professional technician, hard-working workers, modern facility, all for good quality and customer.

Certificates

Certificates we gained,

1.Manufacturer License of Special Equipment People's Republic of China(Boiler)

2.Manufacturer License of Special Equipment People's Republic of China(Pressure vessels)

3.Installation, Alteration, Repair & Maintenance License of Special Equipment People's Republic of China (Boiler)

4.The Authentication Certificate of Quality Management system(GB/T 19001-2008/ISO9001:2008)

5.BV verify Ailbaba.com Assessed Supplier

6.Various Certificates of Patent
