1million 2 million kcal Natural gas Oil fired thermal oil boiler supplier

1million 2 million kcal Natural gas Oil fired thermal oil boiler supplier

FOB Price:

US 5000-50000 / Set

Min.Order Quantity:

1 Set/Sets

Supply Ability:

5000 Set/Sets per Year

Port:

Shanghai/Qingdao/Tianjin

Place of Origin:

Henan, China (Mainland)

Payment Terms:

L/C,D/A,D/P,T/T

Brand:

Henan yuanda boiler

Products Model:

YLW

Products Details
Company Profile

Quick Details

Brand Name: Henan yuanda boiler

Model Number: YLW

Place of Origin: Henan, China (Mainland)

Packaging & Delivery

Packaging Details: Wooden box and seaworthy package for the boiler body/accessories/boiler room equipment
Delivery Detail: Shipped in 15 days after payment

Specifications

1million 2 million kcal Natural gas Oil fired thermal oil boiler supplier

Oil gas fired thermal oil boiler manufacturer

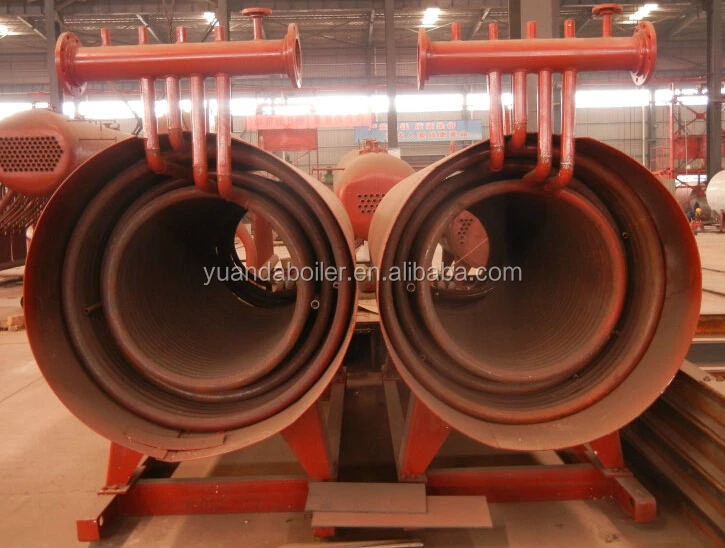

HOT OIL BOILER INSIDE STRUCTURE

Product Description

High efficiency biomass thermic fluid boiler for industry here belongs to YLW boiler series, this boiler series is designed base on the forced circulation theory, the thermal conduction oil runs as the medium and provides high temperature at the low pressure.

Advantages:

1.Prolong the boiler service life according to the cloesed circulation heating, and protect the environment.

2.Increase the heating area by adopting the pipe coil structure.

3.Reduce the temperature difference between exhaust gas and hot oil outlet according the countercurrent flow --this obvious advantage.

4.The customers can obtain the temperature below 450 degree at a very low pressure.So this thermal oil boiler has the features of low pressure-high temperature.

5.Precise temperature control byu adopting complete running and safety monitoring devices.

thermal fluid boiler heater model	1200MA	1400MA	2000MA	2400MA	3000MA	3500MA	4100MA
Thermal power(kw)	700	1400	2000	2400	3000	3500	4100
Heat efficiency(%)	80	80	80	80	80	80	80
Design pressure(Mpa)	1.1	1.1	1.1	1.1	1.1	1.1	1.1
Tmax(°c)	320	320	320	320	320	320	320
Ciculation oil volume(m^3/h)	100	100	160	180	200	200	250
Piping connecting diameter(DN)	125	150	150	150	150	150	150
Total weight(kg)	3.8	5	10

Our Services

Guarantee and after-sale service

1.One-year warranty and full life service for all yuanda boilers.

2.A full range or original spare parts are available for all yuanda boilers.

3.24 hours technical support by email or instant messenger.

4.Engineers are available to overseas.

Quality control

1.X-ray detection while welding.

2.High grade welder certificate.

3.58 years boiler manufacturer reputation since found in 1956.

Packaging & Shipping

We will adopt many methods to protect the boiler while transportating, such as wooden box, strong rope, rubber pad and so on.

Customers visit

Our Company Main product List

SZL 2 Ton-40Ton Biomass Boiler

DZL1 Ton-40 Ton Coal Boiler

WNS 0.5 Ton-20 Ton Oil/Gas Boiler

SZS 2 Ton-35 Ton Oil/Gas Boiler

DZH 1 Ton-6 Ton Wood Boiler

Thermal Oil Boiler 350kw-7Mw


Biomass Boiler	Coal boiler	Wood Boiler

WNS Oil Gas Boiler	Vacuum Hot water Boiler	Gas/Oil fired thermal oil boiler
