Brand Name: Yongda
Model Number: WZP-90
Place of Origin: Henan, China (Mainland)
50KW high frequency induction heater furnace
1. adopts IGBT modules
2. Energy saving,environmental
3. ISO 9001 certification
4. Delivery fast,quality assured
5. Usage: induction heating metal rods ,steel billet for forging,forging
Technial parameters of high frequency induction furnace
Model |
WZP-90 |
Work power: |
3 phase 380V+/-10%, 50-60HZ |
Input voltage: |
320V-420V can be changed, depend on your country's electric power |
Input current: |
4-90A |
Oscillation frequency: |
15-30khz |
Cooling water pressure |
0.3 MPA |
Size of generator: |
665*400*730mm |
Size of transformer |
660*490*435mm |
Weight of generator |
47kgs |
Weight of transformer |
62kgs |
Application of high frequency induction heater furnace
Induction Forging
1, forging it mainly for heating the workpiece to a certain temperature (heating temperature according to different materials are different), by punching, forging bed or other forms of forging the workpiece into other shapes. For example: Case, table embryo, handle, mold, kitchen tableware, crafts, standard parts, fasteners, machine parts, lock, rivets, drill rod, drill a hot extrusion, and so on.

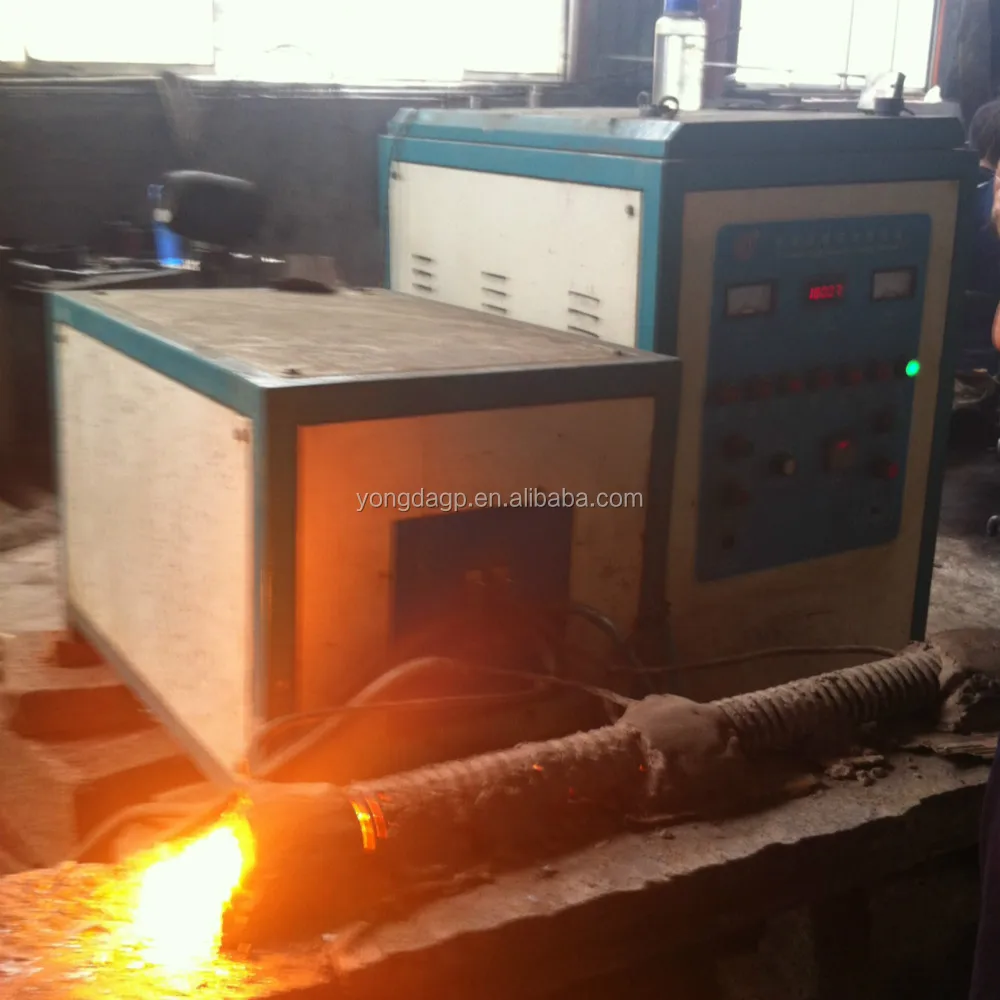

Induction forging steel bars
Induction Hardening
It is mainly through the process of heating the workpiece material hardness of the metal after making changes.Specific applications are as follows:
1, various hardware tools, hand tools. Such as pliers, wrench, hammer, ax, screwdriver, scissors (gardening scissors) and the quenching;
2, Various automotive, motorcycle accessories. Such as crankshaft, connecting rod, piston pin, wheel, aluminum wheels, valves, rocker shaft, drive axle, a small shaft, fork, etc. quenching;
3, various power tools. Such as gear, shaft;
4, the machine tool industry . Such as machine tool bed, Machine Tool, etc. quenching;
5, various hardware metal parts, machining parts. Such as shaft, gear (sprocket), cam, clamps, fixtures, etc. quenching;
6, the metal mold industries. Such as small mold, die attachment, die quenching the hole, etc.;
Shaft induction hardening
Gear induction hardening
Induction solderin/brazing
(1) tools, cutlery categories:
Pliers, tools, reamers, metal, saw, cutter, air drill, coal drill,
(2) other categories:
Relay contacts, tubing, thermostat, welding instrument bulb contacts, disc, transformer copper, eyes welded copper sanitary ware, radiators, stainless steel pot handles, stainless steel pot pot cover air conditioning compressor welding
Metal work pieces and induction coils showroom.
Our factory
Packing for high frequency induction heater furnace:
Two wooden cases (plywood) Inside,will be filled with plastic foam,for waterproof and shockproof.
Accessories: induction coils,foot switch and installing and operating instructions
Shipping: by sea LCL(less than container load) or by air.
1. Reply your inquiry within 24 working hours
2. Experienced engineer instruct and sales communicate with you in fluent English.
3. According to work pieces specifications, heating requirements, propose best solutions,also reference your ideas.
4. Machine details and working video link for your reference
5. Competitive price ,compare with the same industry
6. Production: strict quality standard, to produce machine and induction coils.
7. Debugging machine and only good machine will be sent.
8. Tracking goods shipping and provide bill of lading,invoice,packing list and other documents what you need
9. Provide install and technology instruction by sending drawings, email, or telephone,video.
10.If you need, will arrange one engineer to your place,instruct install machine and training operators.
11.Excess warranty period(12 months warranty), you can buy the spare parts from us with special discount price.
12.Provide long-terms technical support
Shenqiu Yongda High Frequency Equipment Co., Ltd. was founded in 1996, which belongs to high-tech enterprise in Henan Province,China. We are located in Shenqiu County, Zhoukou City. We professionally dedicated to R&D,production of HF,SSF,MF induction heating equipment,high frequency induction furnace,adhering to the spirit of innovation, mean while strengthening cooperation with domestic well-known universities and research institutions. We are the leader of domestic induction heating field, and got the ISO9001:2000 international quality management system certification in August, 2004. Up to now, we has 83 office in domestic ,products hot sale , and also exported to Europe,America,and Southeast Asia etc. other regions.
We are in induction heating industrial exhibitions
First-class quality, competitive price, considerate service !
Thinking high frequency induction heater furnace, please thinking Shenqiu Yongda !
Thanks for your reading ! Welcome to contact us !
