Brand Name: Yongda
Model Number: WGH-IV-16
Place of Origin: Henan, China (Mainland)

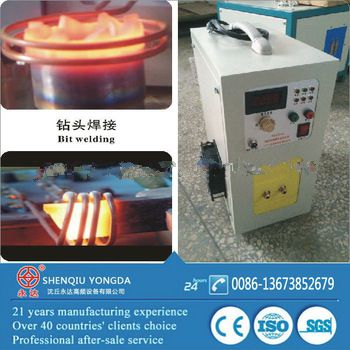

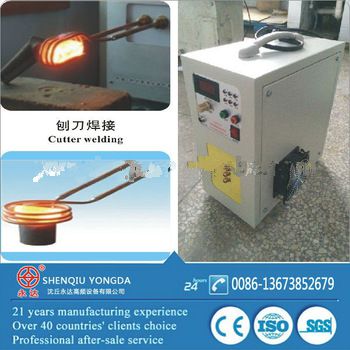

Yong da high frequency induction heating generator for welding diamond tool
Shenqiu Yongda High Frequency Equipment Co., Ltd. was founded in 1996, which belongs to high-tech enterprise in Henan Province,China. We are located in Shenqiu County, Zhoukou City. We professionally dedicated to R&D,production of HF,SSF,MF induction heating equipment,adhering to the spirit of innovation, mean while strengthening cooperation with domestic well-known universities and research institutions. We are the leader of domestic induction heating field, and got the ISO9001:2000 international quality management system certification in August, 2004. Up to now, we has 83 office in domestic ,products hot sale , and also exported to Europe,America,and Southeast Asia etc. other regions.
Products applications:
Metal forging,hardening,brazing, annealing, melting,shrink fit, thermal compound,plastic machine screw cylinder heating etc. other fields.
Custorm visit our factory
Features of induction heating generator
1. Adopt imported high-quality IGBT power components and the third generation current transformer control technology,ensure its high reliability and less maintenance cost.
2. High quality IGBT power components ensure its working frequency up to 300KHZ,It's the most advanced technology.
3.100% full load duty cycle 24 hours continuous working with maximum power.
4.The heating performance will be more perfect due to constant current & constant power control function.
5.Display of output power,frequency and current.
6.Simple and convenient installation,only connected with power and water,professional preservation is not require.
7.Convenient for maintenances as its small volume.
8.The heating,retain power and time can be adjust of this automatic control type,this can hepe to improve heating repetitiveness, simplify hand operation.
Technial parameters of induction heating generator
Model |
Input voltage (Customized) |
Input current |
Oscillation frequency |
Cooling water pressure (MPA) |
WGH-IV-16 |
Single phase 220V |
3-30A |
10-50Khz |
0.1-0.3 |
WZP-36 |
Three phase 380V |
3-36A |
10-50Khz |
0.1-0.3 |
Application of induction heating generator
It is mainly through heating to a certain temperature to melt the solder, which, like the two kinds of metal material or different materials together, specific applications are as follows:
1.Hard alloy cutting tools, such as turning tool, milling cutter, drilling bit
2.Mould mining tool, such as bore bit, coal puncheon
3.ompressor pipe fitting of refrigerator, copper wire of motor
4.Induction brazing of copper/ sliver/ tin of automobile
ISO and CE certificate
Packing for induction heating generator
Wooden cases (plywood) Inside,will be filled with plastic foam,for waterproof and shockproof.
Accessories: induction coils,foot switch and installing and operating instructions
Shipping: by sea LCL(less than container load) or by air.
Delivery time: 3-7 days.
Warranty: one year free replacement spare parts, provide long-terms technical support.
