Brand Name: yongda
Model Number: WZP-60
Place of Origin: Henan, China (Mainland)
Super high frequency induction heating machine for case hardening 1-1.5mm
Product details:
1. Main feature:
Using imported IGBT power components and advanced inverter technology;
Has current, voltage, frequency display;
It has lack of water, over current, over voltage etc. fault alarm function;
Small size,high efficient, safe and reliable;

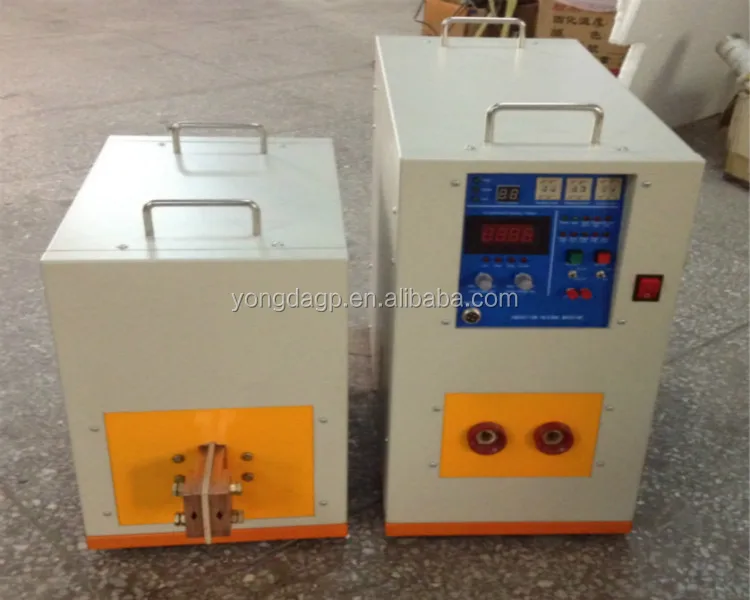

SHF-30KW /100-300KHZ
2. Technical parametes of 30KW super high frequency induction heating machine
| Model | SHF-30 |
| Work power | three phase 380V or 415V /50-60HZ |
| Input Voltage | 380V+/-10% |
| Output current | 3-60A |
| Output power | 3-30kw (power adjustable) |
| Oscillation frequency | 100-300KHZ |
| Cooling water pressure | 5-10L / Min, more than 0.2Mpa |
| Duty cycle | 100% |
| Size(L*W*H) | Generator 550×250×500mm transformer 490*250*360mm |
| Weight | Generator 30kgs transformer 24kgs |
| Cooling Water temperature protection point | below 50 degree |
| Accessories | 1.induction coils 2 piece ; 2.foot switch 1 piece, 5.user manual 1 piece |
Heating time control functions: heating, insulation, cooling, three sections time control, time control range: 0.1 to 99 seconds

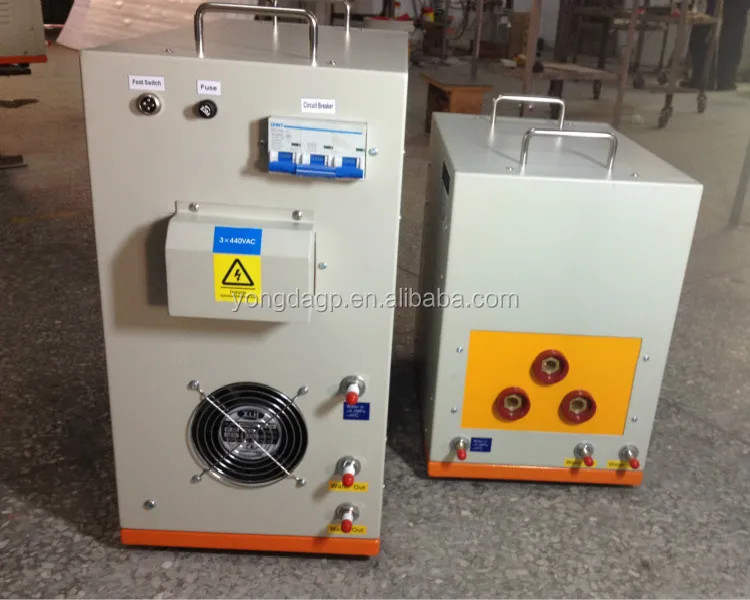

SHF-30KW 100-300KHZ induction heating machine rear
3.Main applications:

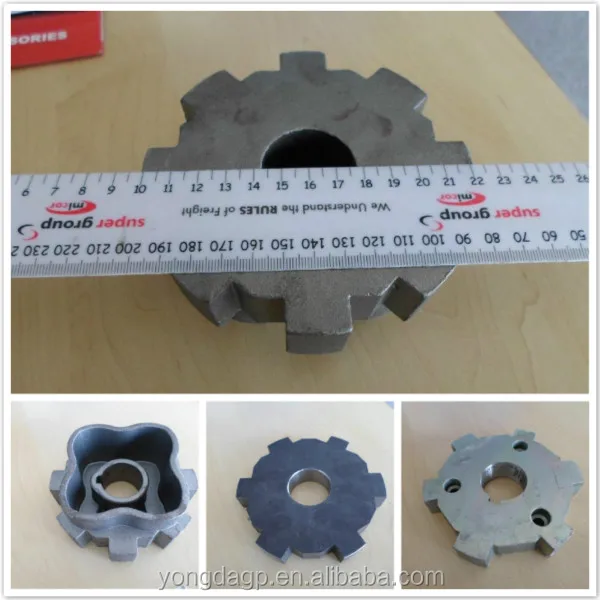

Shafts, gears, pliers and other hardened edge, hardening depth of 1.5 mm or less;
Sickle, footwear knife module, thickness 1-3 mm steel belt hardening
Magnetic levitation, granulated metal smelting;
Diameter more than 2mm rapid heating titanium rods;
Diameter over 2mm stainless steel tube continuous annealing, speeds can reach up to dozen of meters per minute;
Warranty: one year guarantee
After -sale service: provide long-term technical support
Install: When you receive the machine, can easy install the machine based on our installing drawings, sketch.
Customer need prepare water hose, electric, build a water pool or buy a closed cooling tower, or industrial chiller.
We aslo can provide if you needed. Such as CNC hardening machine tool ,automatic feeding machine, infrared thermometer, industrial chiller etc. These auxiliary machines are optional.
Shenqiu Yongda High Frequency Equipment Co., Ltd. was founded in 1996, which belongs to high-tech enterprise in Henan Province,China. We are located in Shenqiu County, Zhoukou City. We professionally dedicated to Research & Development,production of high frequency induction heating machine, medium frequency induction heating equipment,supersonic frequency induction heating machine,induction forging machine, induction hardening machine, adhering to the spirit of innovation, mean while strengthening cooperation with domestic well-known universities and research institutions. We are the leader of domestic induction heating field, and got the ISO9001:2000 international quality management system certification in August, 2004. Up to now, we has 83 office in domestic ,products hot sale , and also exported to Europe,America,and Southeast Asia etc. other regions. We have international trade office in zhengzhou. East to international airport (CGO), besides, high way, high speed rail,transport is very convenient.
Welcome to send us inquiry or contact me at the following method:
