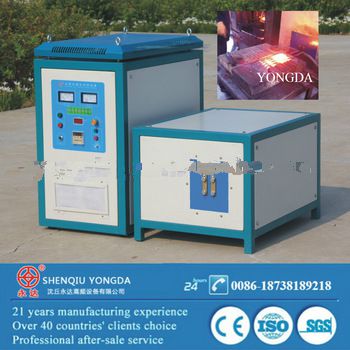

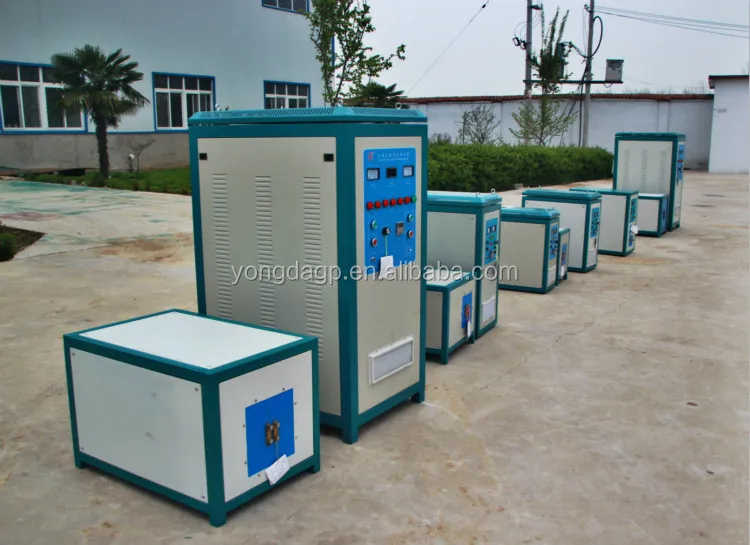

Portable hf induction heating machine for metal forging heat treating 10-500KW

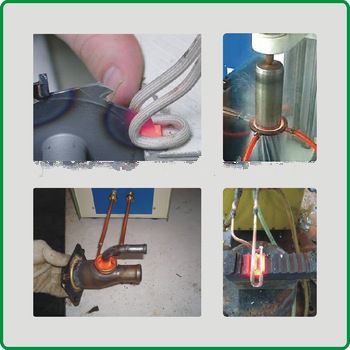

Applications of portable induction heating machine

Hot forging
Through heating is a heating process which enable the internal temperature of heated part to be equal to the surface temperature approximately.
Hot forging and hot rolling of fastner,hardware tool, automobile/motorcycle fittings, rigging, pipe fitting,twist drill.
If diameter of work piece is bigger, frequency selected shall be lower,E.g.Through heating of bar stock.
If the diameter of workpiece is bigger or the heating required is quicker, the power selected will be higher.
diameter 16*40 fastener:WZP-90 or WZP-120

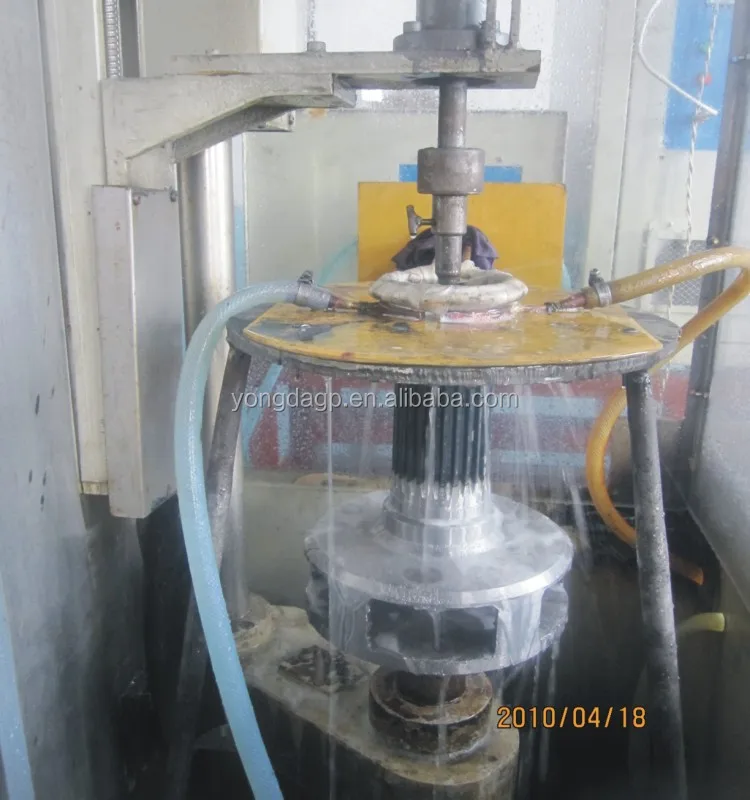

Heat treating

Heat treating is the controlled heating and cooling of a metal or alloy to change its crystal structure while maintaining its shape.and then the metal obtains different mechanical properties,E.g. Hardening ,annealing,normalizing and tempering
Hardening and annealing of gear, arbor wheel, chain gear, guide rail of machine tool, hardware tools, copper wire, copper belt , stainless steel and automobile/ motorcycle fittings.
The hardening area is bigger , the power is higher; the hardening area is smaller, the power is lower, the hardening depth is shallower, the power is higher; the hardening depth is deeper, the power is lower.
E.g. Hardening of diameter 20 axis surface: WZP-60,WZP-90

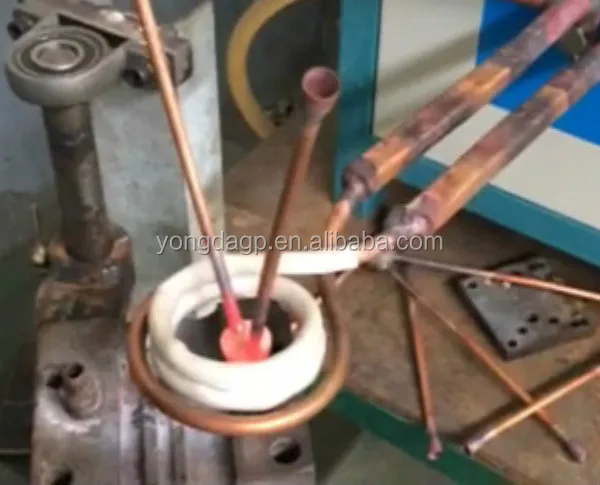

Brazing
Brazing is the process of joining two or more pieces of metal or cermic material with a molten filler metal such as silver, aluminium alloy or copper. Induction brazing is a new brazing technology,it is charactered by good woking condition, high production efficiency, safe operation, good joint appearance without acid cleaning and osidation removing.
Diamond saw blade, hard alloy cutting tools(turning tool, milling cutter,drilling bit),mould mining tools(bore bit, coal puncheon)compressor pipe fittings of refrigerator, copper wire of transformer,copper wire of motor, induction brazing of copper/silver/tin of automobile fittings.

Technial parameters of IGBT induction heating machine

Packing for high frequency induction machine:

Two wooden cases (plywood) Inside,will be filled with plastic foam,for waterproof and shockproof.

Accessories: induction coils,foot switch and installing and operating instructions

Shipping: by sea LCL(less than container load) or by air.
