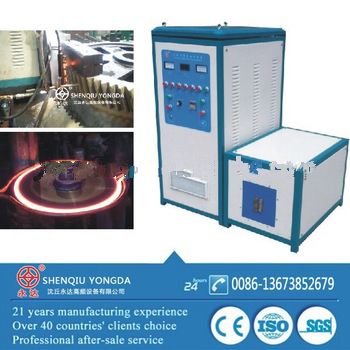

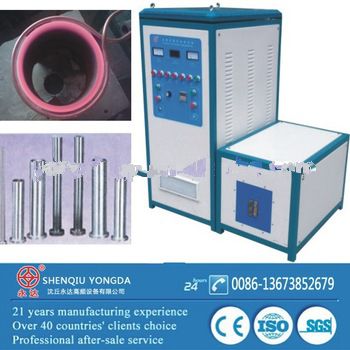

High frequency induction heat treatment thermal deformation quenching equipment

High frequency induction heat treatment thermal deformation quenching equipment

FOB Price:

US 1500-13500 / Set

Min.Order Quantity:

1 Set/Sets

Supply Ability:

500 Set/Sets per Year

Port:

Shanghai, Qingdao,Tianjin, Guangzhou or as you request

Place of Origin:

Henan, China (Mainland)

Payment Terms:

L/C,D/A,D/P,T/T,Western Union,MoneyGram,paypal,cash

Brand:

Yongda

Products Model:

WZP-200

Products Details
Company Profile

Quick Details

Brand Name: Yongda

Model Number: WZP-200

Place of Origin: Henan, China (Mainland)

Packaging & Delivery

Packaging Details: 1.Two wooden cases(plywood) for packing heat treatment thermal deformation quenching 2. One for generator, one for transformer. 3. Inside filling with plastic foam for water proof and shockproof 4. Transport by sea or by air in Shanghai port
Delivery Detail: Within 10 days after 30% advance payment

Specifications

High frequency induction heat treatment thermal deformation quenching equipment

Product Description

Features of heat treatment thermal deformation quenching

1. select power supply according to the power and frequency. The higher the frequency, the shallower the heating depth, and the lower the frequency, the better the diathermancy.

2. has different the frequency bandwidth to meet the different parts of brazing, heat treatment, heating before forging

3. high reliability, easy to maintain and improve the over voltage, over current, overheating, water and other self-protection.

4. adopts the most advanced IGBT frequency conversion control technologies to ensure the high efficiency and maximum output power.

5. put into use a unique cooling circulation system, ensure that the equipment 24 hours of continuous work.

6.automatic frequency tracking, stepless power adjustment, 10 minutes to learn to use.

Technical parameters of WZP-200 heat treatment thermal deformation quenching

Model	WZP-200
Work power	3 phase 380V+/-10%, 50-60HZ
Input voltage	320V-420V can be changed, depend on your country's electric power
Input current	6-200A
Input power	6-120KW(power adjusted stepless)
Oscillation frequency	15-30 KHZ or 2-10KHZ (customized)
Cooling water pressure	0.3 MPA
Size of geneartor: Transformer	8506001330mm 780540520mm
Weight of generator ; transformer	131kgs; 89kgs
Water cooling protection point	Below 50 degree celsius

Induction heating machine

Main machine: One generator and one transformer

Accosseries: induction coils, foot switch,installing and operating instructions

Water and electricity connection. Easy installation and operation.

Applications of heat treatment thermal deformation quenching

It is mainly through the heating of the workpiece after making changes in the hardness of metal materials, specific applications are as follows:
1, all kinds of hardware tools, hand tools. Such as pliers, wrenches, hammers, axes, screwdrivers, scissors (gardening shears) and so the quenching;
2, various automotive, motorcycle accessories. Such as the crankshaft, connecting rod, piston pins, sprockets, aluminum wheels, valves, rocker shaft, drive axle, a small shaft, fork, etc. quenching;
3, various power tools. Such as gears, axes;
4, the machine tool industry category. Such as the machine tool bed, Machine Tool, etc. quenching;
5, various hardware metal parts, machining parts. Such as axle and gear (sprocket), cam, chuck, fixture, etc. quenching;
6, the metal mold industries. Such as small die, die attachment, die quenching the hole, etc.

Hot Forging

1 steel heating,bending forming;

2 standard parts, fasteners through thermal forming.

3 hardware tools diathermy,for example : pliers and spanners heating-diathermy-forming.

4 prospecting drill rod taper shank extrusion.

5 steel tube’s diathermy and forming such as elbow.

Braze welding

1 carbide cutting tools welding. For example: turning, milling cutter, reamer.

2 diamond cutter welding. For example: diamond saw blade, sharper, sawtooth welding. Prospecting with the drill welding, such as word drill,horn drill welding.

3 brass,copper,stainless steel pot and other materials hybrid welding.

My company are in induction heating industrial exhibitions

Packaging & Shipping

Packing for heat treatment thermal deformation quenching

1. Standard wooden case, plywood case, and customized case;
2. Inner packing: packing plastic film and foam in case of friction dampness and shake;

3. Accessories: 2 inductor, 1foot pedal, 1 installing and operating instruction, and customized;

4. Shipping type: by sea/train/air;

5. Payment terms: T/T, 30% advance payment, 70% before sending the goods;

Shenqiu Yongda High Frequency Equipment Co., Ltd. was founded in 1996,which belongs to Henan high-tech enterprise ,was located in No.65, Liufu Village Liufu town, Shenqiu County, Henan ,China .
We have international trade department in Zhengzhou city. East to international airport (CGO), besides, high way, high speed rail, transport is very convenient.

We professionally dedicated to R & D, produce and sale high frequency, super audio frequency, medium frequency induction heating equipment: WGH ,WZP and KGPS series, CNC quenching machine tool and automatic feeder machine etc. We adhering to the spirit of innovation, mean while strengthening cooperation with domestic well-known universities and research institutions.

Our machine is mainly used for heating metal, induction forging, hardening, brazing, annealing, melting , shrink fit, etc. other fields.

Yongda High frequency Equipment Co.,Ltd is the leader of induction heating field and biggest full solid state induction heating equipment manufacturer in China. Our products has got CE and ISO certification and hot sale at home and abroad. Up to now, we already exported to Europe, America, and Southeast Asia etc. other regions.
