Brand Name: Yongda
Model Number: WZP-90
Place of Origin: Henan, China (Mainland)
Supersonic frequency induction heating elements for metal

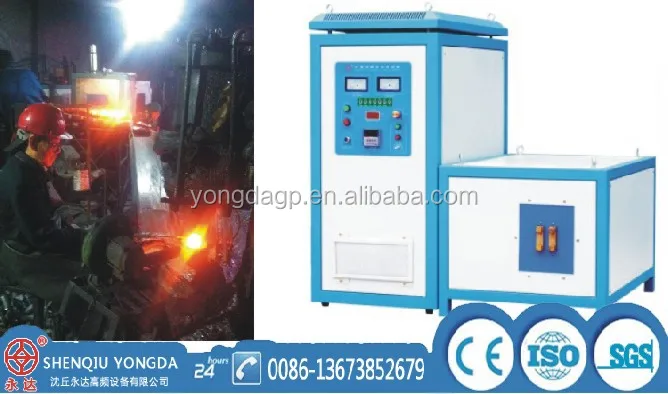

Induction heating inductor work shop
Technial parameters of Yongda IGBT induction heating inductor
Model |
Input voltage |
Input current |
Oscillation frequency |
Cooling water pressure |
WZP-15 |
320-420V |
2-40A |
15-30KHZ |
0.1MPA |
WZP-35 |
320-420V |
3-60A |
15-30KHZ |
0.2MPA |
WZP-45 |
320-420V |
4-90A |
15-30KHZ |
0.3MPA |
WZP-65 |
320-420V |
6-120A |
15-30KHZ |
0.3MPA |
WZP-85 |
320-420V |
6-160A |
15-30KHZ |
0.3MPA |
WZP-120 |
320-420V |
6-200A |
15-30KHZ |
0.3MPA |
WZP-160 |
320-420V |
6-300A |
15-30KHZ |
0.3MPA |
WZP-200 |
320-420V |
6-400A |
8-15KHZ |
0.3MPA |
WZP-260 |
320-420V |
6-500A |
8-15KHZ |
0.3MPA |
Applications of induction heating inductor
1.Induction forging
1.1 The variety of hot-rolled twist drill.
1.2 standard parts, hot forging fasteners, such as high strength bolts, nuts and so on.
1.3 drill steel, tempering brazing, forging, extrusion heating.
Steel rods induction heating inductor
Steel plate induction forging
Steel strip induction forging (produce railway fastener)
Application: induction heating inductor used for heat treatment
2.1 The various hardware tools, hand tools, heat treatment. Such as pliers, wrenches, screwdrivers, hammers, axes and so on.
2.2 kinds of auto parts, motorcycle accessories high-frequency quenching. Such as: crankshaft, connecting rod, piston pin, crank pin, wheel, camshaft, valves, all kinds of rocker arm, rocker shaft; transmission of various gears, spline shafts, drive axle, a variety of small axes, a variety of fork and other high-frequency quenching.
2.3 power tools on the gears, shafts and other high-frequency quenching.
2.4 a variety of hydraulic components, pneumatic components of high frequency hardening heat treatment. Such as the piston plunger, rotor pump rotor on a variety of valves for the shaft, the gear pump gear, etc. quenching.
2.5 Heat treatment of metal parts. Such as the various gears, sprockets, all kinds of shafts, spline shafts, pins and other high-frequency quenching.
2.6 Machine tool industry guide, tools swallowtail quenching treatment.
Wheels heat treatment
4. Other
Such as precious metals smelting. Such as melting gold, silver, etc.
Features of induction heating inductor:
1.Heating fast: this is the heating rate of less than 1 second (speed adjustable speed control)
2.Heating wide: wide range of metal parts can be heated (according to the different shape of the workpiece replacement of removable induction loop)
3.Easy installation: connect the power, induction loop and out of the water can be used; small size, light weight, easy to use
4.Simple operation: a few minutes to learn
5.Start fast: you can start with water after the heating power
6.Low power consumption: high-frequency device than the old-fashioned tube about 70% energy saving, the smaller the power consumption of the smaller parts
7.Good effect: the heating is very uniform (also by regulating the induction coil density, so that all parts of the workpiece to obtain their desired temperature), heating up fast, less oxide layer after annealing without waste
8.Adjustable power: The Promise adjust the output power
9.Protection all: with over voltage, over current, overheating, lack of water and other alarm indicator, and automatic control and protection
Induction heating coils display
Packing for induction heating inductor
Two wooden cases (plywood) or carton,as you required.
Inside,will be filled with plastic foam,for waterproof and shockproof.
Accessories: induction coils,foot switch and installing and operating instructions
Shipping: by sea LCL(less than container load) or by air.
1. Reply your inquiry within 24 working hours
2. Experienced engineer instruct and sales communicate with you in fluent English.
3. According to work pieces specifications, heating requirements, propose best solutions,also reference your ideas.
4. Machine details and working video link for your reference
5. Competitive price ,compare with the same industry
6. Production: strict quality standard, to produce machine and induction coils.
7. Debugging machine and only good machine will be sent.
8. Tracking goods shipping and provide bill of lading,invoice,packing list and other documents what you need
9. Provide install and technology instruction by sending drawings, email, or telephone,video.
10.If you need, will arrange one engineer to your place,instruct install machine and training operators.
11.Excess warranty period(12 months warranty), you can buy the spare parts from us with special discount price.
12.Provide long-terms technical support
Shenqiu Yongda High Frequency Equipment Co., Ltd. was founded in 1996, which belongs to high-tech enterprise in Henan Province,China. We are located in Shenqiu County, Zhoukou City. We professionally dedicated to R&D,production of HF,SSF,MF induction heating equipment,adhering to the spirit of innovation, mean while strengthening cooperation with domestic well-known universities and research institutions. We are the leader of domestic induction heating field, and got the ISO9001:2000 international quality management system certification in August, 2004. Up to now, we has 83 office in domestic ,products hot sale , and also exported to Europe,America,and Southeast Asia etc. other regions.
Products applications:
Metal forging,hardening,brazing, annealing, melting,shrink fit, thermal compound,plastic machine screw cylinder heating etc. other fields.
What’s your MOQ? |
Any quantity of machine will be accepted. MOQ:1 Set |
Which place your factory is located? |
We are located in Shenqiu County, Zhoukou city, Henan Province ,China |
How far from Beijing? I think it is more closer to Shanghai |
Our factory is near both and Shanghai. We have office in Zhengzhou, we can pick up you at Zhengzhou CGO airport,and then to our factory via expressway about two hours. |
We need to see some more videos for production line and also pictures of your factory, water drawing and panel drawing |
Well, we have many videos show our customer’s machine working scene(Various of applications: forging,hardening, brazing, shrink fitting, melting and hot coating etc. According to your work piece processing requirements,) send you the corresponding video link or send by email. 2. Yes, we can provide you factory pictures and machine water connection and control panel details. |
Do you have quality certifications? |
Yes, we got the ISO9001:2000 International quality management system certification in August,2001, |
How do you packing the machines? |
Standard export wooden cases(plywood) Usually every set machine will be used two wooden cases: one for packing induction heating generator, one for packing transformer. Inside will be filled with plastic foam for waterproof and shockproof |
More questions….? |
Updating… |
Shenqiu Yongda HF Equipment Co.,Ltd has over 20 years induction heating technology experience for metal heating, professional service team, will recommend you the best machine power and model, absolutely best price.
